VCF01

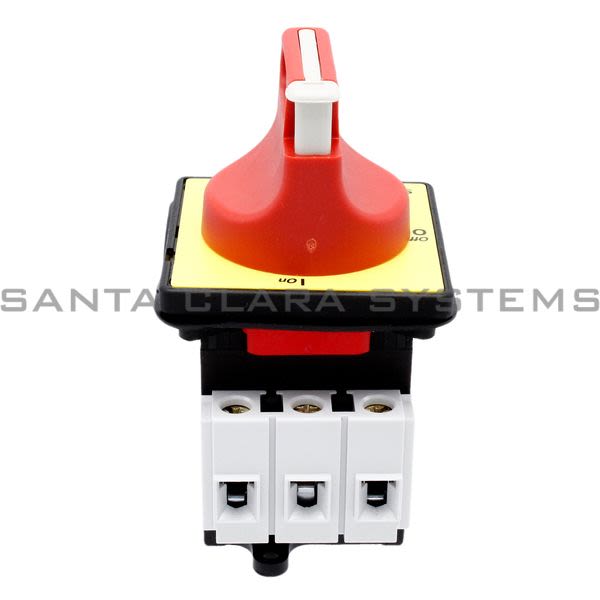

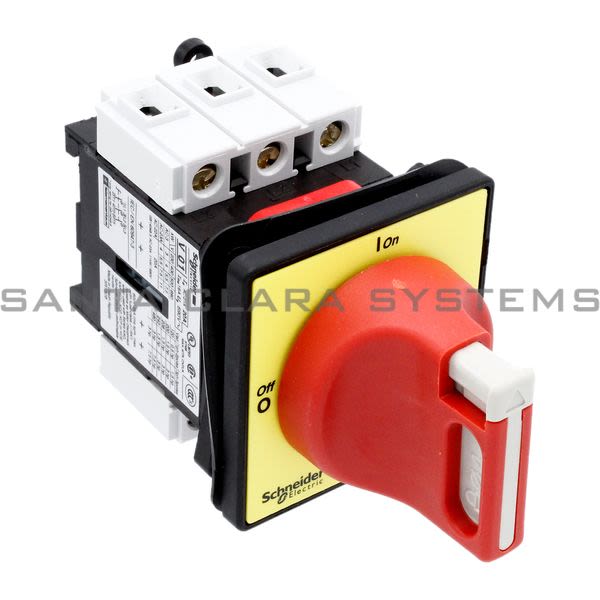

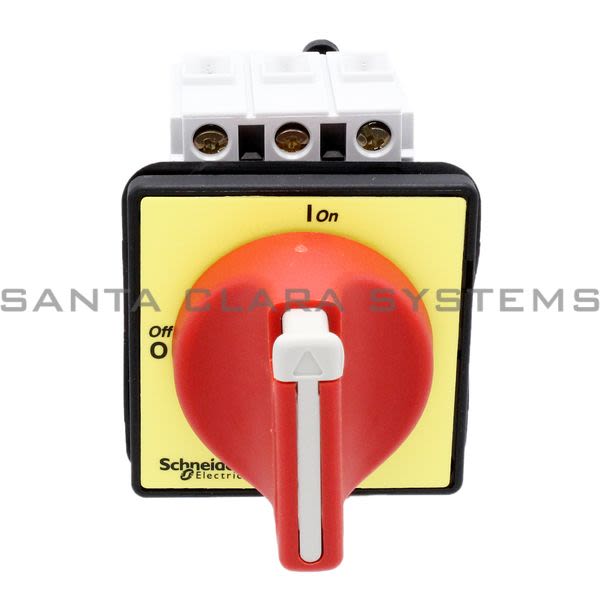

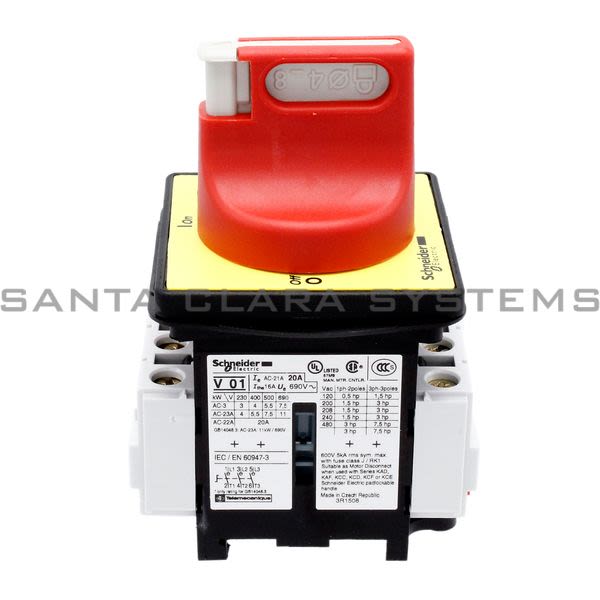

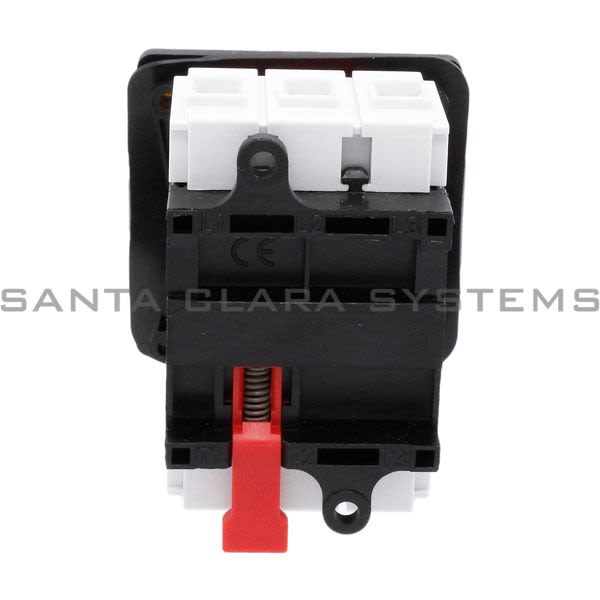

Telemecanique - TeSys Vario - emergency stop switch disconnector - 20 A - on door

Current response time:

19 Minutes 17 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys Vario - emergency stop switch disconnector - 20 A - on door
Product weight: 0.55 lb(US) (0.25 kg)
IP degree of protection: IP65, IP20 conforming to IEC 60529
Standards: IEC 60947-3
Device short name: VCF
Width: 2.36 in (60 mm)
Height: 2.91 in (74 mm)
Protective treatment: TC
[Uimp] rated impulse withstand voltage: 8 kV
Mechanical durability: 100000 cycles
Tightening torque: Power circuit: 18.58 lbf.in (2.1 N.m) - on screw clamp terminals
Connections - terminals: Power circuit: screw clamp terminals cable 0.01 in (6 mm) - cable stiffness: flexible - with cable end, Power circuit: screw clamp terminals cable 0.02 in (10 mm) - cable stiffness: solid
Range: TeSys
Mounting support: Handle mounting on door, Switch mounting on door
[Ith] conventional free air thermal current: 20 A
System Voltage: 690 V AC 50/60 Hz
Product name: TeSys VARIO
Electrical durability: 30000 cycles DC-1...5, 100000 cycles AC-21
[Ie] rated operational current: 11 A (AC-23)at 400 V
Poles description: 3P
Control type: Rotary handle
Breaking capacity: 200 A at 400 V AC-21A, 200 A at 400 V AC-22A, 200 A at 400 V AC-23A
Handle color: Red

Rotary handle padlocking: 1 to 3 padlocks 0.16...0.31 in (4...8 mm)
Marking: 0 - 1
Product certifications: GL, CSA, UL, CCC
Product or component type: Emergency stop switch disconnector
Fixing mode: By 4 screws handle
Performance level: High performance
Mechanical robustness: Vibrations 10...150 Hz 1 gn IEC 60068-2-6, Shocks 11 ms 30 Gn IEC 60068-2-27
Ambient air temperature for operation: -4...122 F (-20...50 C)
Contacts type and composition: 3 NO
Fire resistance: 1760 F (960 C) conforming to IEC 60695-2-1
Network type: AC, DC
[Ithe] conventional enclosed thermal current: 16 A
Rotary handle mounting style: Direct
rated operational power in W: 11 kW at 690 V (AC-23A), 3 kW at 230...240 V (AC-3), 4 kW at 400...415 V (AC-3), 5.5 kW at 690 V (AC-3), 7.5 kW at 500 V (AC-23A), 7.5 kW at 500 V (AC-3), 4 kW at 230...240 V (AC-23A), 5.5 kW at 400...415 V (AC-23A)
Intermittent duty class: 30
Handle front plate color: Yellow
Making capacity: 200 A at 400 V (AC-21A), 200 A at 400 V (AC-22A), 200 A at 400 V (AC-23A)
Suitability for isolation: Yes
[Icm] rated short-circuit making capacity: 1 kA at 400 V at Ipeak
[Icw] rated short-time withstand current: 300 A at 400 V during 1 s
Rated conditional short-circuit current: 10 kA at 400 V - associated fuse 20 A aM, 10 kA at 400 V - associated fuse 20 A gG
Device composition: Switch, Handle
Base dimension: 60 x 60 mm
