VCF6

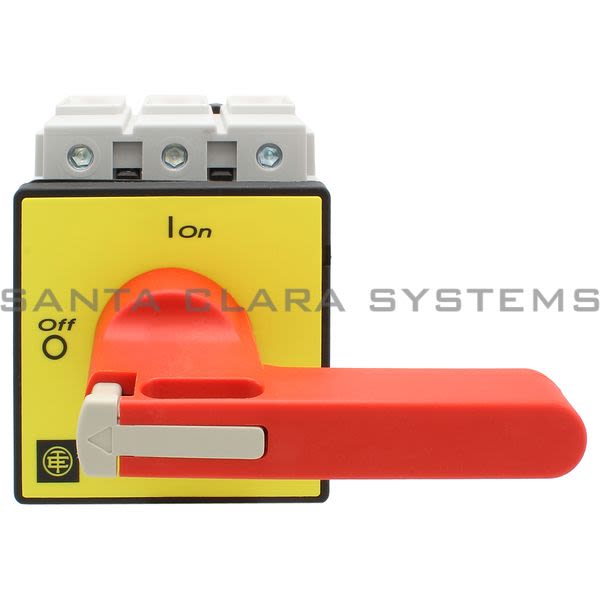

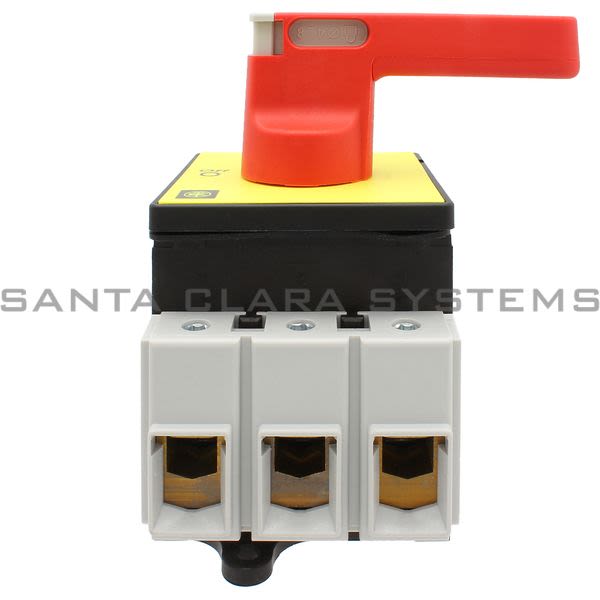

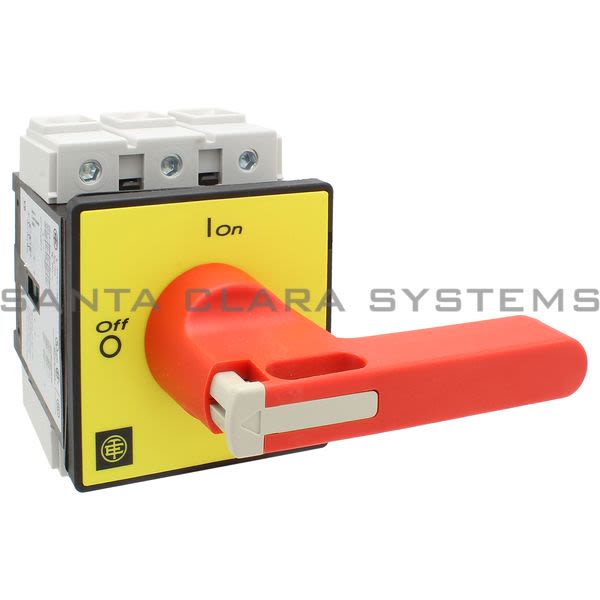

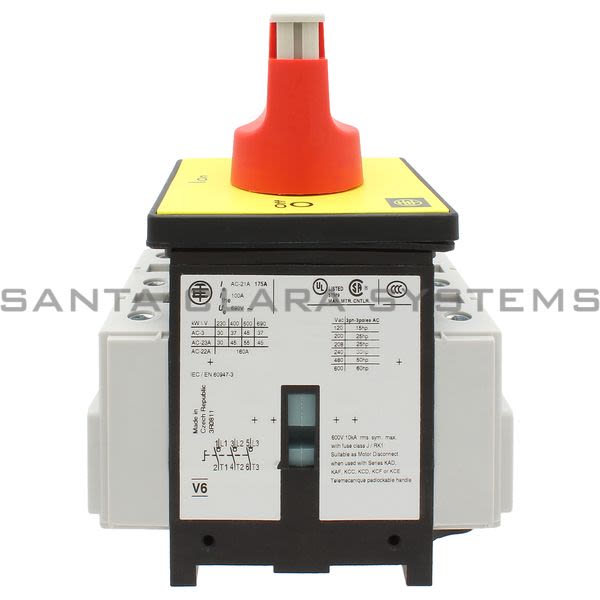

Telemecanique - TeSys Vario - emergency stop switch disconnector - 175 A - on door

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys Vario - emergency stop switch disconnector - 175 A - on door
Product weight: 2.65 lb(US) (1.2 kg)
IP degree of protection: IP65, IP20 conforming to IEC 60529
Standards: IEC 60947-3
Device short name: VCF
Width: 3.54 in (90 mm)
Height: 4.92 in (125 mm)
Protective treatment: TC
[Uimp] rated impulse withstand voltage: 8 kV
Mechanical durability: 30000 cycles
Tightening torque: Power circuit: 200 lbf.in (22.6 N.m) - on screw clamp terminals
Connections - terminals: Power circuit: screw clamp terminals cable 0.11 in (70 mm) - cable stiffness: flexible - with cable end, Power circuit: screw clamp terminals cable 0.15 in (95 mm) - cable stiffness: solid
Range: TeSys
Mounting support: Handle mounting on door, Switch mounting on door
[Ith] conventional free air thermal current: 175 A
System Voltage: 690 V AC 50/60 Hz
Product name: TeSys VARIO
Electrical durability: 30000 cycles DC-1...5, 30000 cycles AC-21
[Ie] rated operational current: 83 A (AC-23) at 400 V
Poles description: 3P
Control type: Rotary handle
Breaking capacity: 1400 A at 400 V AC-21A, 1400 A at 400 V AC-22A, 1400 A at 400 V AC-23A
Handle color: Red

Rotary handle padlocking: 1 to 3 padlocks 0.16...0.31 in (4...8 mm)
Marking: 0 - 1
Product certifications: GL, CCC, CSA, UL
Product or component type: Emergency stop switch disconnector
Fixing mode: By 4 screws handle
Performance level: High performance
Mechanical robustness: Vibrations 10...150 Hz 1 gn IEC 60068-2-6, Shocks 11 ms 30 Gn IEC 60068-2-27
Ambient air temperature for operation: -4...122 F (-20...50 C)
Contacts type and composition: 3 NO
Fire resistance: 1760 F (960 C) conforming to IEC 60695-2-1
Network type: AC, DC
[Ithe] conventional enclosed thermal current: 140 A
Rotary handle mounting style: Direct
rated operational power in W: 30 kW at 230...240 V (AC-3), 37 kW at 400...415 V (AC-3), 37 kW at 690 V (AC-3), 45 kW at 500 V (AC-3), 45 kW at 690 V (AC-23A), 55 kW at 500 V (AC-23A), 30 kW at 230...240 V (AC-23A), 45 kW at 400...415 V (AC-23A)
Intermittent duty class: 30
Handle front plate color: Yellow
Making capacity: 1750 A at 400 V (AC-21A), 1750 A at 400 V (AC-22A), 1750 A at 400 V (AC-23A)
Suitability for isolation: Yes
[Icm] rated short-circuit making capacity: 2.8 kA at 400 V at Ipeak
[Icw] rated short-time withstand current: 2100 A at 400 V during 1 s
Rated conditional short-circuit current: 10 kA at 400 V - associated fuse 200 A aM, 10 kA at 400 V - associated fuse 200 A gG
Device composition: Handle, Switch
Base dimension: 90 x 90 mm
