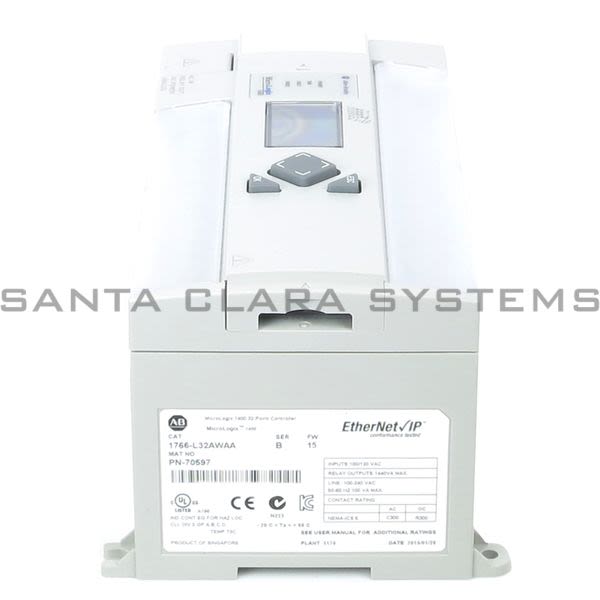

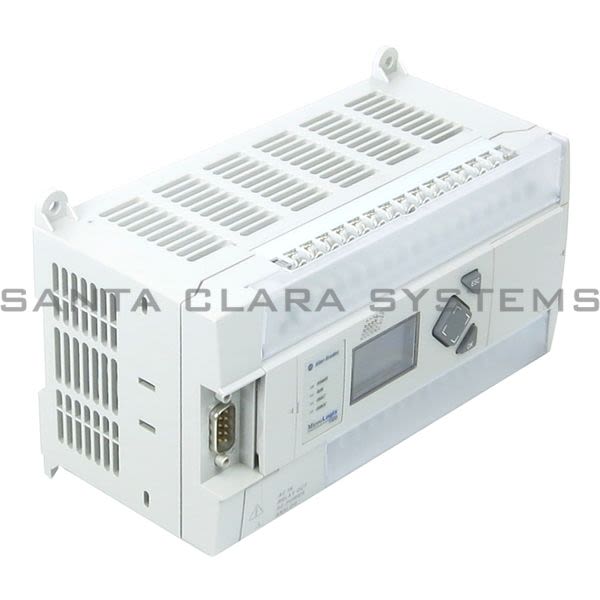

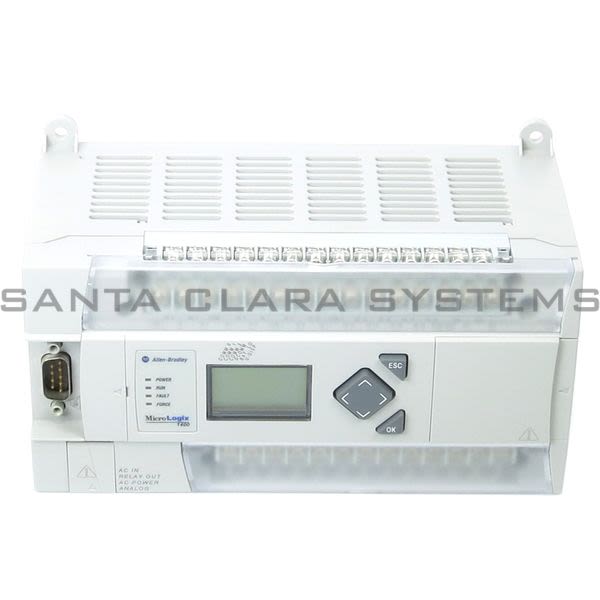

1766-L32AWAA

Allen Bradley - Programmable Controller | MicroLogix 1400

Current response time:

7 Minutes 20 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Programmable Controller | MicroLogix 1400
Enclosure Type: None - Open-Style
Product Type: Programmable Controller
Weight: 0.9 kg (2.0 lbs)
Dimensions HxWxD: 90 x 180 x 87 mm (3.5 x 7.087 x 3.43 in.)
Number of I/O: 24 inputs (20 digital and 4 analog) and 14 outputs (12 digital and 2 analog)
Power Supply Voltage: 100...240V AC @ 47...63 Hz
Power Supply Inrush Current: 120V AC: 25 A for 8 ms | 240V AC: 40A for 4 ms
Power Consumption: 100 VA
Input Circuit Type: Digital: 120V AC | Analog: 0...10V DC

Output Circuit Type: Relay
Relay/FET Output - Max. Controlled Load: 1440 VA
Relay/FET Output - Max. Continuous Current per Channel & Group Common: 2.5 A per channel | 8A max channel 8...11 common
Analog Input - Voltage Range: 0...10.0V DC - 1 LSB
Analog Input/Output - Data Type: 12-bit Unsigned Integer
Analog Output - Number of Inputs: 2 Single-ended
Analog Output - Voltage Range: 0...10 V DC - 1 LSB
Analog Output - Step Response: 2.5 ms @ 95%
Analog Input/Output - Resolution: 12 bit

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1766-L32AWAA . Santa Clara Systems carries 54,584 items from Allen Bradley.
