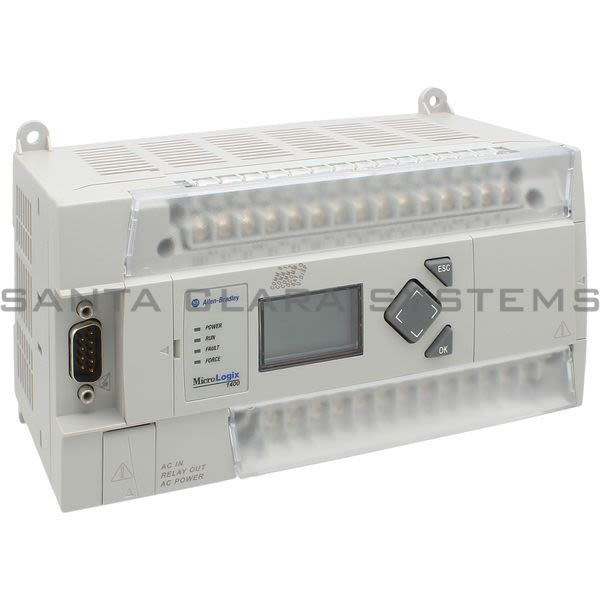

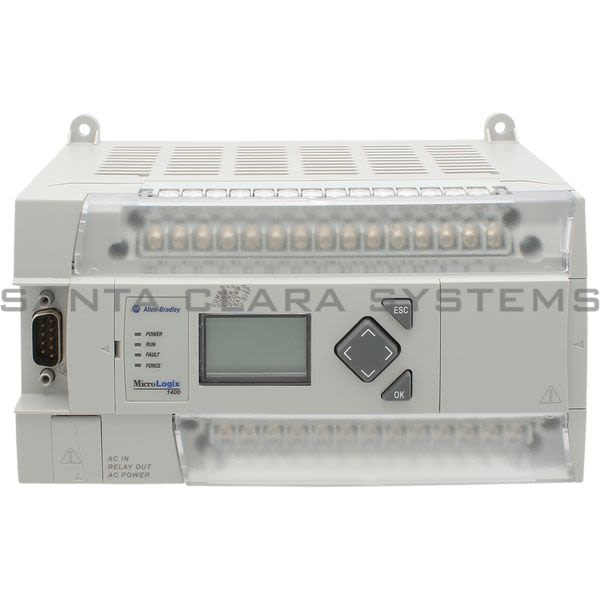

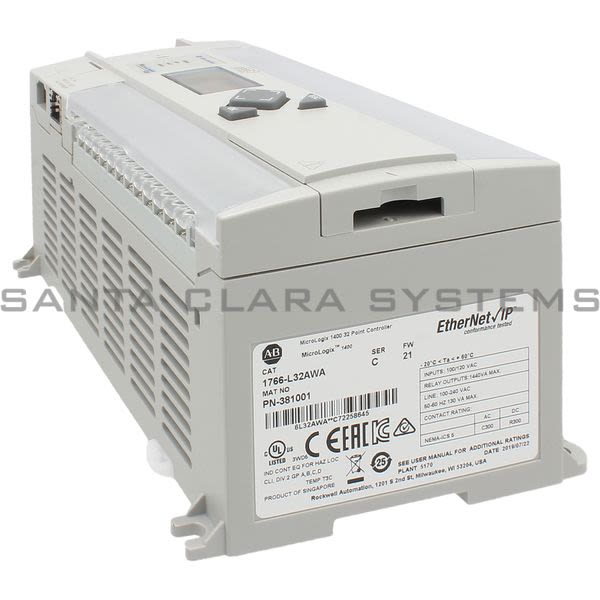

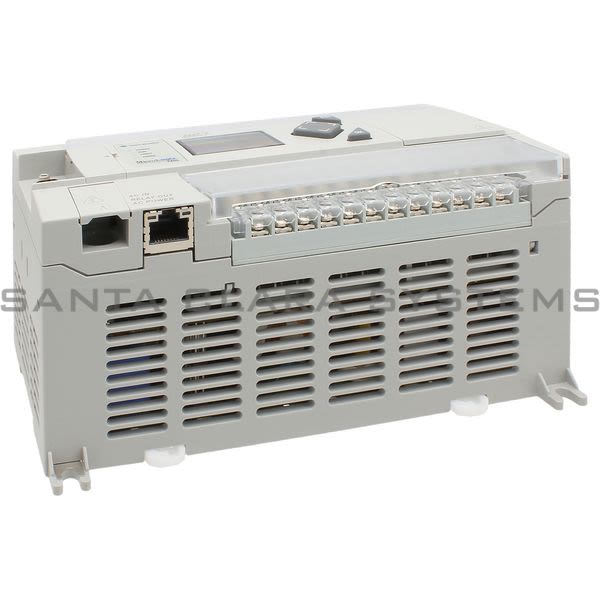

1766-L32AWA

Allen Bradley - 32 PT ML1400 AC In/Relay Out

Current response time:

15 Minutes 4 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: 32 PT ML1400 AC In/Relay Out
Enclosure Type: None - Open-Style
Product Type: Programmable Controller
Weight: 0.9 kg (2.0 lbs)
Dimensions HxWxD: 90 x 180 x 87 mm (3.5 x 7.087 x 3.43 in.)
Number of I/O: 24 inputs (20 digital and 4 analog) and 14 outputs (12 digital and 2 analog)
Power Supply Voltage: 100...240V AC @ 47...63 Hz
Power Supply Inrush Current: 120V AC: 25 A for 8 ms | 240V AC: 40A for 4 ms

Power Consumption: 100 VA
Input Circuit Type: Digital: 120V AC | Analog: 0...10V DC
Relay/FET Output - Max. Controlled Load: 1440 VA
Relay/FET Output - Max. Continuous Current per Channel & Group Common: 2.5 A per channel | 8A max channel 8...11 common
Output Circuit Type: Relay
Relay Output - Turn on/off Time: 10 ms (maximum) {Scan time dependent}
Relay Output - Load Current: 10 mA (minimum)

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1766-L32AWA . Santa Clara Systems carries 54,584 items from Allen Bradley.

1766-L32AWA Installation Instructions

1766-L32AWA User Manual

1766-L32AWA Release Notes

1766-L32AWA Reference Manual

1766-L32AWA Profile

1766-L32AWA Selection Guide

1766-L32AWA Catalog
