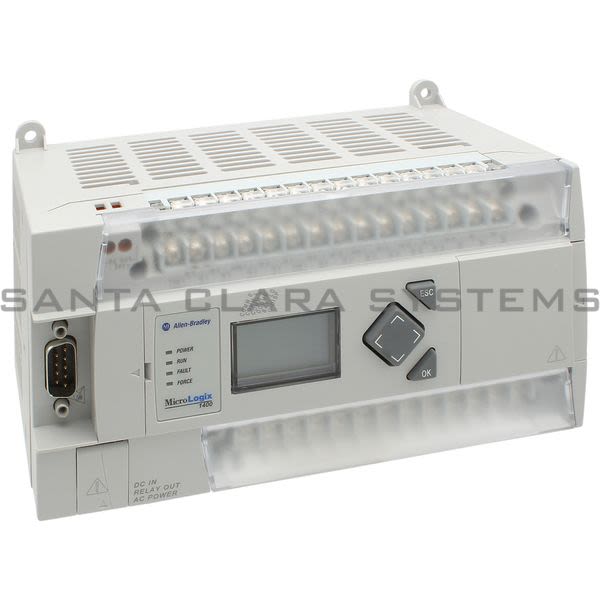

• Allen Bradley 1766-L32BWA MicroLogix Controller Product Image

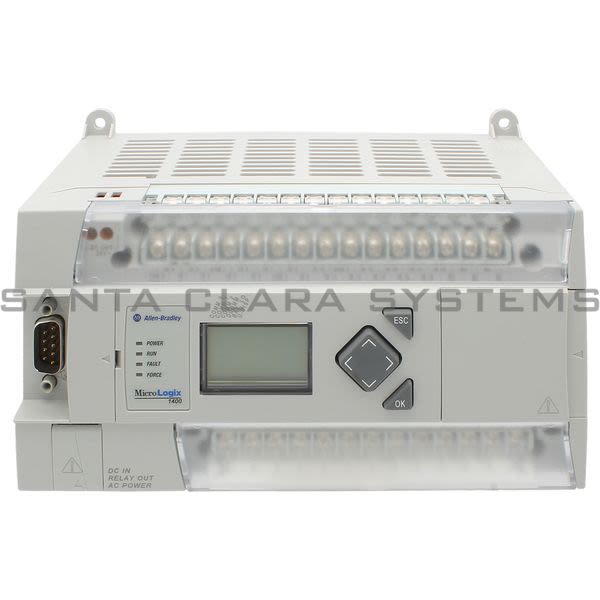

  • Allen Bradley 1766-L32BWA MicroLogix Controller Product Image

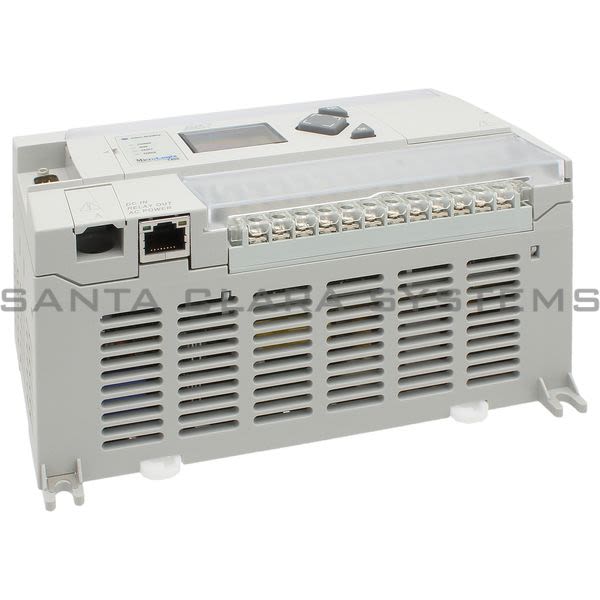

  • Allen Bradley 1766-L32BWA MicroLogix Controller Product Image

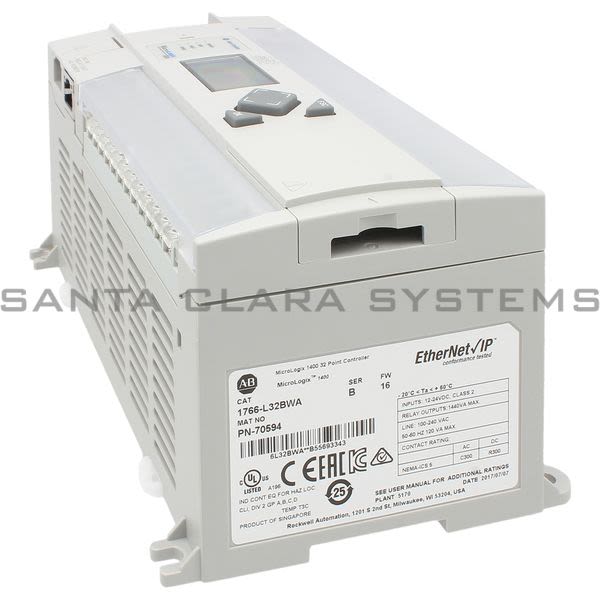

  • Allen Bradley 1766-L32BWA MicroLogix Controller Product Image
  • Allen Bradley 1766-L32BWA Barcode
  • Allen Bradley 1766-L32BWA Installation Instructions

    Installation Instructions

  • Allen Bradley 1766-L32BWA User Manual

    User Manual

  • Allen Bradley 1766-L32BWA Release Notes

    Release Notes

  • Allen Bradley 1766-L32BWA Reference Manual

    Reference Manual

  • More Catalog PDFs

    More PDFs

1766-L32BWA

Get a Quote

Current response time:

7 Minutes 43 Seconds
  • Description: MicroLogix Controller
  • Enclosure Type: None - Open-Style
  • Product Type: Programmable Controller
  • Weight: 0.9 kg (2.0 lbs)
  • Dimensions HxWxD: 90 x 180 x 87 mm (3.5 x 7.087 x 3.43 in.)
  • Input Circuit Type: Digital: 24V DC | sink/source (standard and high-speed) | Analog: 0...10V DC
  • Output Circuit Type: Relay
  • Number of I/O: 24 inputs (20 digital and 4 analog) and 14 outputs (12 digital and 2 analog)
  • Power Consumption: 120 VA
  • Power Supply Inrush Current: 120V AC: 25 A for 8 ms | 240V AC: 40A for 4 ms
  • Power Supply Voltage: 100...240V AC @ 47...63 Hz
  • Relay Output - Load Current: 10 mA (minimum)
  • Relay Output - Turn on/off Time: 10 ms (maximum) {Scan time dependent}
  • Relay/FET Output - Max. Continuous Current per Channel & Group Common: 2.5 A per channel | 8A max channel 8...11 common
  • Relay/FET Output - Max. Controlled Load: 1440 VA
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1766-L32BWA . Santa Clara Systems carries 54,584 items from Allen Bradley.
