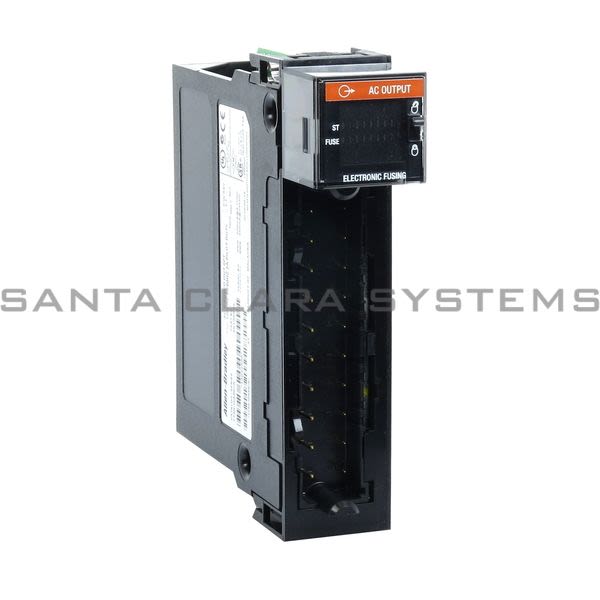

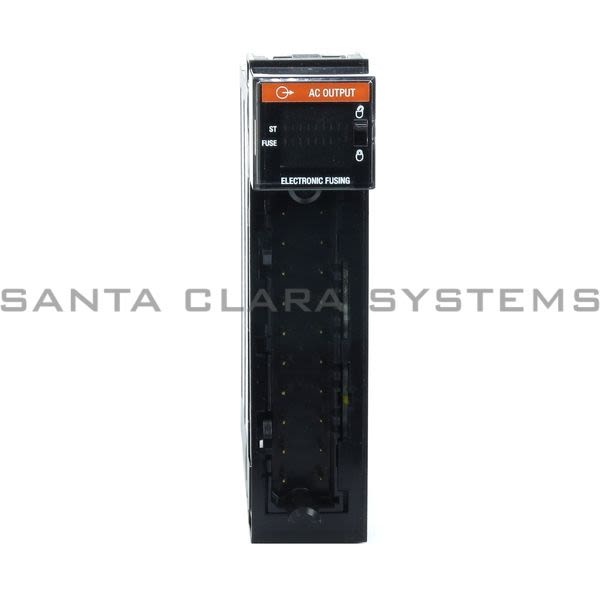

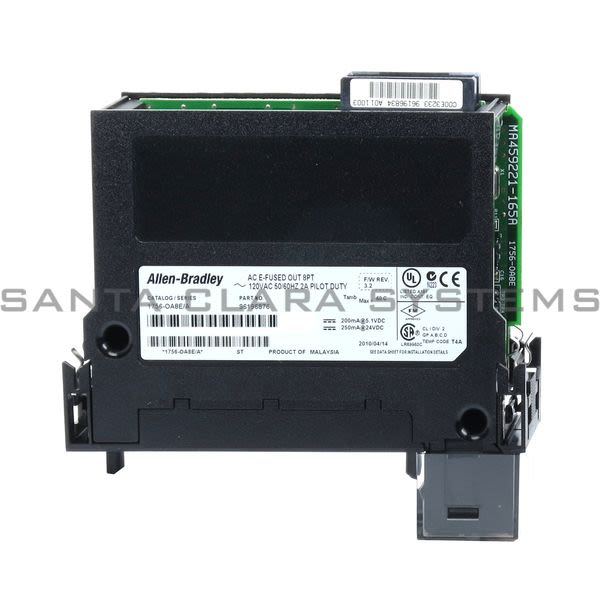

- Description: Output Module | ControlLogix
- Product Type: AC electronically fused output module
- Outputs: Eight electronic fusings (four points/group)
- Pilot duty: Yes
- Voltage category: 120V AC 50/60 Hz
- Operating voltage range: 74...132V AC 47...63 Hz
- Current draw @ 5.1V: 200 mA
- Current draw @ 24V: 250 mA
- Total backplane power: 7.02 W
- Thermal dissipation: 18.76 BTU/hr
- Off-state leakage current, max: 3 mA per point
- On-state voltage drop, max: 4V peak @ 2 A
- Load current, min: 10 mA per point
- Isolation voltage: 125V (continuous)
- Inhibit voltage, max: Zero crossing 25V peak
- Fusing: Electronically fused per point
- Output delay time, Off to On: 9.3 ms @ 60 Hz | 11 ms @ 50 Hz
- Output delay time, On to Off: 9.3 ms @ 60 Hz | 11 ms @ 50 Hz
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1756-OA8E . Santa Clara Systems carries 54,584 items from Allen Bradley.
