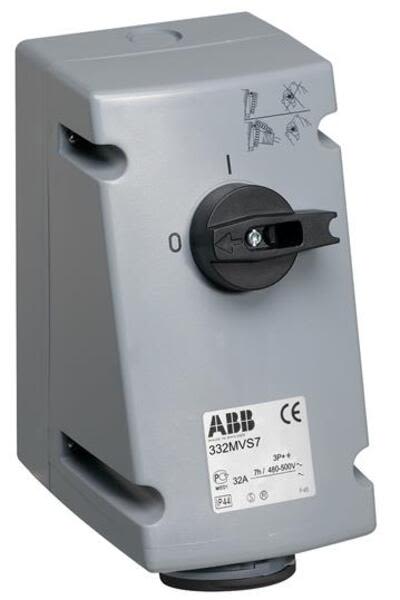

- Description: Switched interlocked socket-outlet, 7h, 32A, IP44, 3P+E
- Product ID: 2CMA167701R1000
- Extended Product Type: 2CMA167701R1000
- Product Net Weight: 0.72 kg
- Product Net Width: 120 mm
- Product Net Height: 243 mm
- Product Net Depth: 243 mm
- Product Main Type: MVS
- Product Name: Industrial Switched Interlocked Socket Outlet
- Degree of Protection: IP44
- Standards: IEC 60 309-1, -2, -4
- Number of Poles: 4
- Rated Current (I<sub>n</sub>): 32 A
- Function: Switched interlocked socket outlet, vertical
- Color: Black
- Suitable For: Switched Interlocked Socket Outlets, Vertical
- Product Net Length: 149 mm
- Rated Voltage (U<sub>r</sub>): 480 500 V
- Country of Origin: Czech Republic (CZ)
- Frequency (<i>f</i>): 50 Hz
- Mounting Type: Vertical
- Enclosure Material: Thermoplastic polyester (PBT)
- Environmental Information: 2CMC700001D0002
- Protection Type: Splashproof
- Cable Cross-Section: 2.5 10 mm
- Cable Outlets Per Side: 1xØ25
- Cable Entry Position: Top
- EAN: 7392696677011
- Minimum Order Quantity: 1 piece
- Package Level 1 Width: 124 mm
- Package Level 1 Length: 337 mm
- Package Level 1 Height: 153 mm
- Package Level 1 Gross Weight: 0.8 kg
- Package Level 1 EAN: 7392696677011
- Package Level 1 Units: 1 piece
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2007 Q1
- Declaration of Conformity - CE: 2CMC700005D0001
- RoHS Information: 2CMC700057D0001
- Additional Information: Cable entry, knock-outs Ø25mm
- IIT Publishing Status: Level 0 - Information enabled
- Invoice Description: Ind. P&S#332MVS7
- Object Classification Code: 2CMT005069
- RoHS Date: L23
- Suitable for Product Class: Industrial Plugs and Sockets
- E-nummer: 2416860
- UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 332MVS7 . Santa Clara Systems carries 36,935 items from ABB.
- 3-Poles+earth
- Frequency 50-60 Hz
- Color Code Black
- Switched Interlocked Socket Outlet
- Vertical
- Earthing Sleeve Position 7h
- Rated Current 32a
- Ip44 Splashproof
