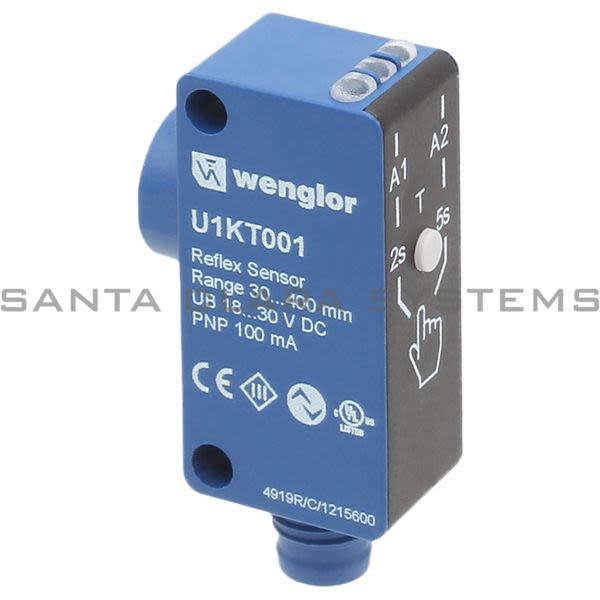

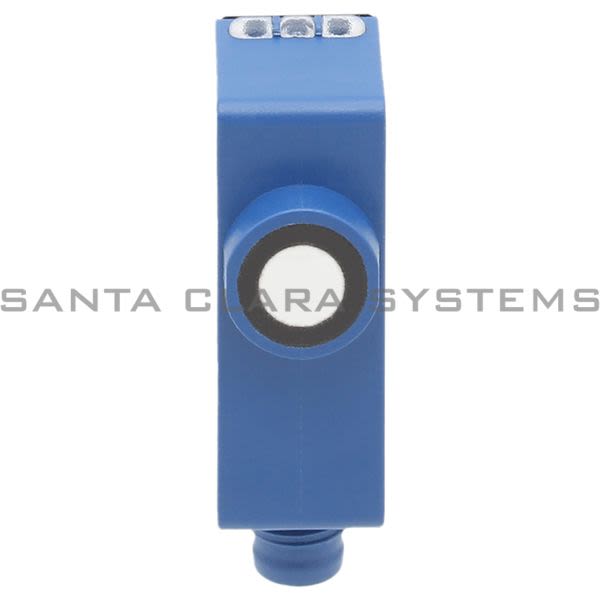

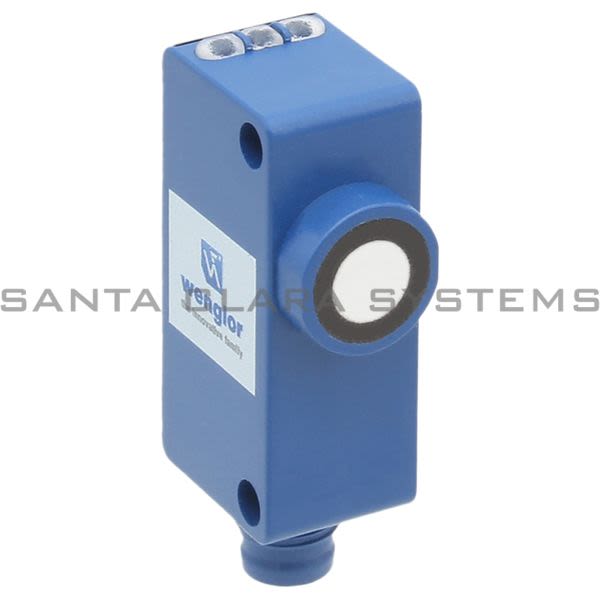

U1KT001

Wenglor - Distance Sensor

Product Summary:

Working range, reflex sensor: 30 ... 400 mm
Working range, through-beam sensor: 1 ... 800 mm
Setting Range: 30 ... 400 mm
Reproducibility maximum: 4 mm
Linearity Deviation: 4 mm

Current response time:

By 5AM PT on Thursday

Emergency?

Description: Distance Sensor
Working range, reflex sensor: 30 ... 400 mm
Working range, through-beam sensor: 1 ... 800 mm
Setting Range: 30 ... 400 mm
Reproducibility maximum: 4 mm
Linearity Deviation: 4 mm
Resolution: 0.5 mm
Ultrasonic Frequency: 325 kHz
Opening Angle: < 12
Service Life (T = +25 C): 100,000 h
Switching Hysteresis: 2 mm
Supply Voltage: 18 ... 30 V DC

Current Consumption: < 20 mA
Switching frequency, reflex sensor: 30 Hz
Switching frequency, through-beam sensor: 70 Hz
Response time, reflex sensor: 17 ms
Response time, through-beam sensor: 8 ms
Temperature Range: -30 ... 60 C
Number of Switching Outputs: 2
Switching Output Voltage Drop: < 2.5 V
Switching Output/Switching Current: 100 mA
Synchronous Mode: Up to 40 sensors
Interface: IO-Link V1.1

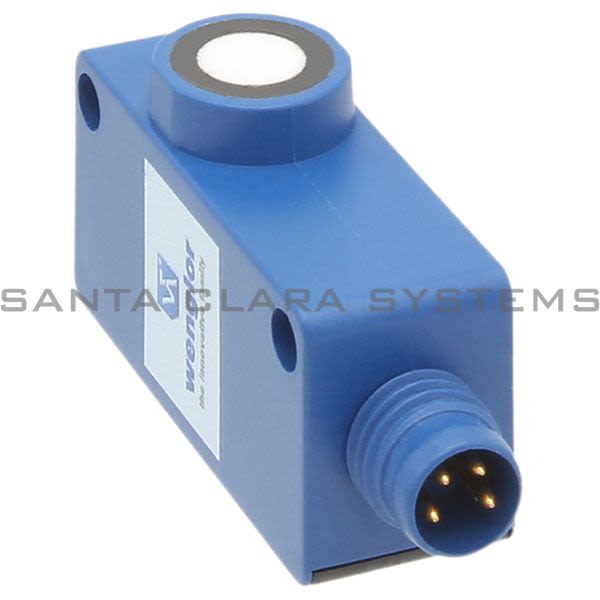

Connection: M8 1; 4-pin
