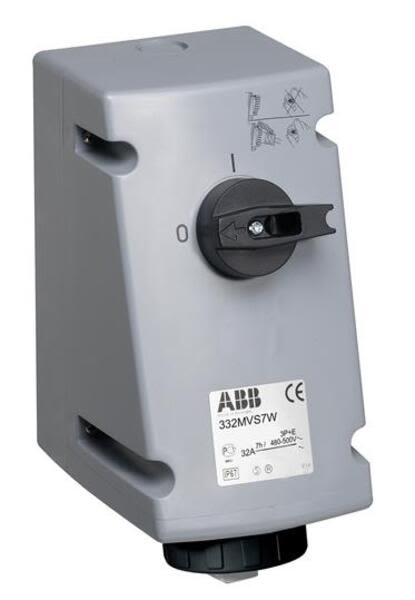

- Description: Switched interlocked socket-outlet, vertical, Heavy Duty, 7h, 32A, IP67, 3P+E
- Product ID: 2CMA163280R1000
- Extended Product Type: 2CMA163280R1000
- Product Net Weight: 1.83 kg
- Product Net Width: 160 mm
- Product Net Height: 310 mm
- Product Net Depth: 310 mm
- Product Main Type: CMVS
- Product Name: Industrial Switched Interlocked Socket Outlet
- Degree of Protection: acc. to IEC 60529 IP67
- Standards: IEC 60 309-1, -2, -4
- Number of Poles: 3
- Rated Current (I<sub>n</sub>): 32 A
- Function: Switched Interlocked Socket outlet, vertical, Heavy Duty
- Color: Black
- Suitable For: Switched Interlocked Socket Outlets, Vertical
- Product Net Length: 200 mm
- Country of Origin: Czech Republic (CZ)
- Mounting Type: vertical
- Enclosure Material: Thermoplastic polyester (PBT)
- Environmental Information: 2CMC700001D0002
- Protection Type: Watertight heavy duty
- Cable Cross-Section: 2.5 10 mm
- Cable Outlets Per Side: 1xØ25+1xØ32 mm on top and drill marks on bottom
- Cable Entry Position: Top
- EAN: 7392696632805
- Minimum Order Quantity: 1 piece
- Package Level 1 Width: 160 mm
- Package Level 1 Length: 200 mm
- Package Level 1 Height: 310 mm
- Package Level 1 Gross Weight: 1.83 kg
- Package Level 1 EAN: 7392696632805
- Package Level 1 Units: 1 piece
- RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2007 Q1
- Declaration of Conformity - CE: 2CMC700005D0001
- RoHS Information: 2CMC700057D0001
- Additional Information: IP69
- IIT Publishing Status: Level 0 - Information enabled
- Invoice Description: IND. P&S#332MVS7WH
- Object Classification Code: 2CMT005069
- RoHS Date: L23
- Suitable for Product Class: Industrial Plugs and Sockets
- E-nummer: 2417153
- UNSPSC: 39120000
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 332MVS7WH . Santa Clara Systems carries 36,935 items from ABB.
- Rated Current 32a
- Ip67 Watertight
- 3-Poles+earth
- Switched Interlocked Socket Outlet
- Vertical
- Heavy Duty
- Earthing Sleeve Position 7h
