P1MM001

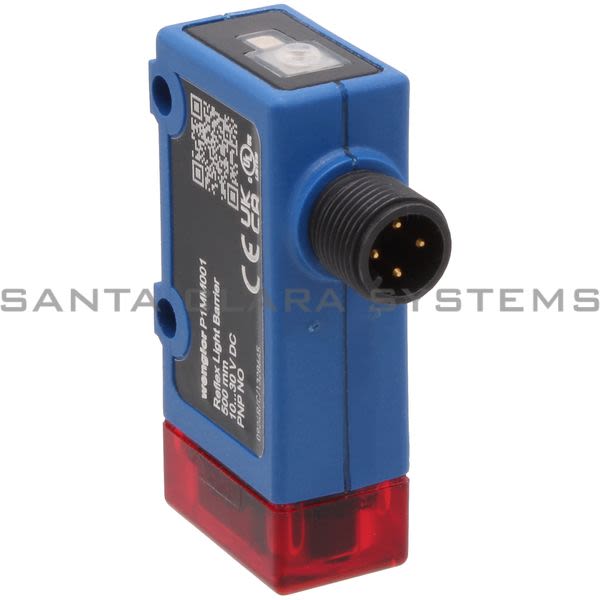

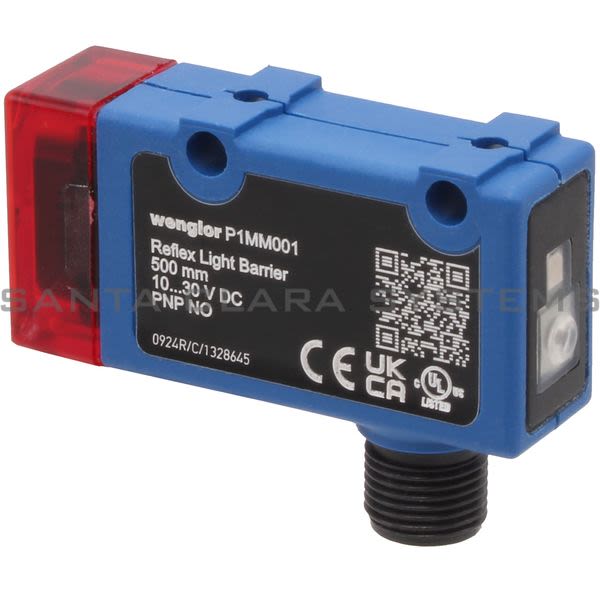

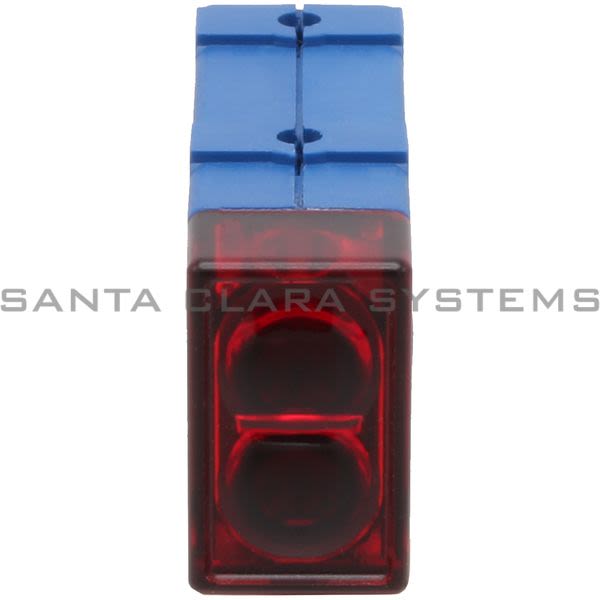

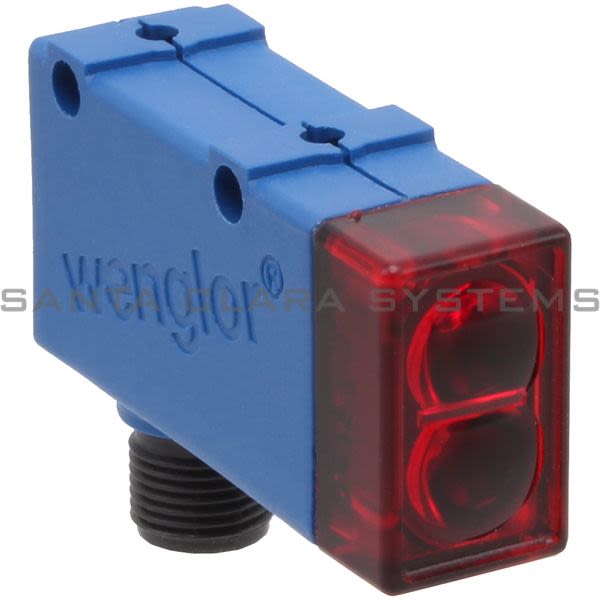

Wenglor - Reflex Light Barrier

Product Summary:

Range: 500 mm
Reference Background: Stainless Steel
Switching Hysteresis: < 5 %
Light Source: Red Light
Service Life (T = +25 C): 100000 h

Current response time:

8 Minutes 9 Seconds

Description: Reflex Light Barrier
Range: 500 mm
Reference Background: Stainless Steel
Switching Hysteresis: < 5 %
Light Source: Red Light
Service Life (T = +25 C): 100000 h
Max. Ambient Light: 10000 Lux
Opening Angle: 3
Supply Voltage: 10...30 V DC
Current Consumption (Ub = 24 V): < 40 mA
Switching Frequency: 500 Hz
Response Time: 1 ms
Temperature Drift: < 5 %

Temperature Range: -40...60 C
Switching Output Voltage Drop: < 2,5 V
PNP Switching Output/Switching Current: 200 mA
Residual Current Switching Output: < 50 A
Short Circuit Protection: yes
Reverse Polarity Protection: yes
Overload Protection: yes
Lockable: yes
Teach Mode: HT
Protection Class: III
Setting Method: Teach-In
Housing Material: Plastic

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on P1MM001 . Santa Clara Systems carries 3,781 items from Wenglor.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
