LXD1B7

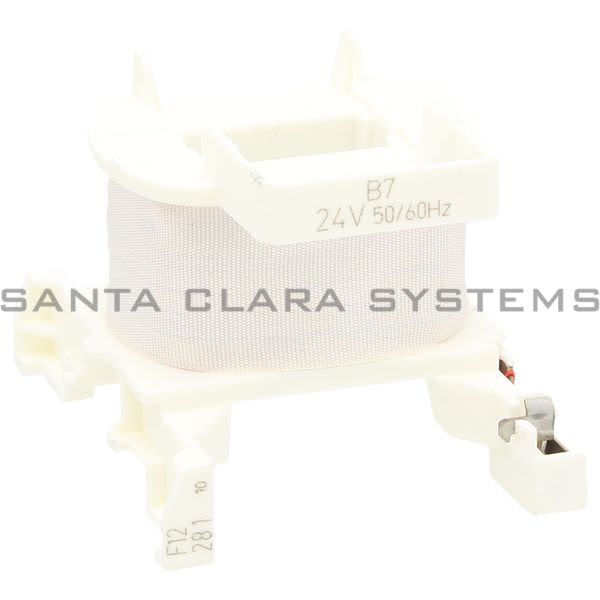

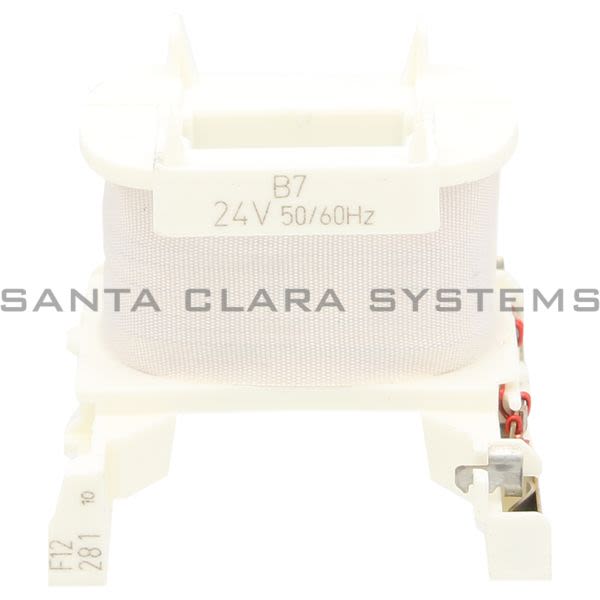

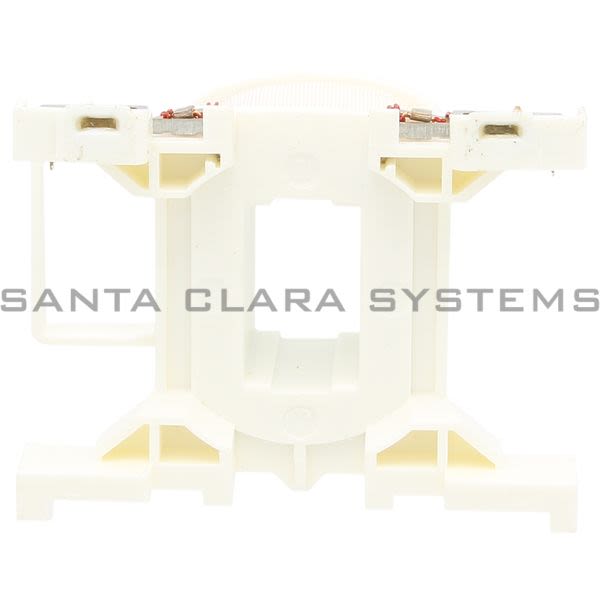

Telemecanique - TeSys D - contactor coil - LXD1 - 24 V AC 50/60 Hz for 9? 38 A contactor

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys D - contactor coil - LXD1 - 24 V AC 50/60 Hz for 9? 38 A contactor
Product weight: 0.15 lb(US) (0.07 kg)
Device short name: LXD1
Mechanical durability: 15 Mcycles
Range: TeSys
Operating rate: 3600 cyc/h at <= 140 F (60 C)
[Uc] control circuit voltage: 24 V AC 50/60 Hz
Control circuit voltage limits: 0.3...0.6 Uc at 140 F (60 C) drop-out 50/60 Hz, 0.8...1.1 Uc at 140 F (60 C) operational 50 Hz, 0.85...1.1 Uc at 140 F (60 C) operational 60 Hz
Control circuit type: AC 50/60 Hz

Coil technology: Without built-in suppressor module
Ambient air temperature for operation: 23...140 F (-5...60 C)
Product or component type: Contactor coil
inrush power in VA: 70 VA at 68 F (20 C) (cos ? 0.75) 60 Hz, 70 VA at 68 F (20 C) (cos ? 0.75) 50 Hz
hold-in power consumption in VA: 7 VA at 68 F (20 C) (cos ? 0.3) 50 Hz, 7.5 VA at 68 F (20 C) (cos ? 0.3) 60 Hz
Heat dissipation: 2...3 W at 50/60 Hz
Average resistance: 5.37 Ohm at 68 F (20 C)
Inductance of closed circuit: 0.22 H
Product compatibility: LC1DT20...DT40, CAD, LC1D09...D38
