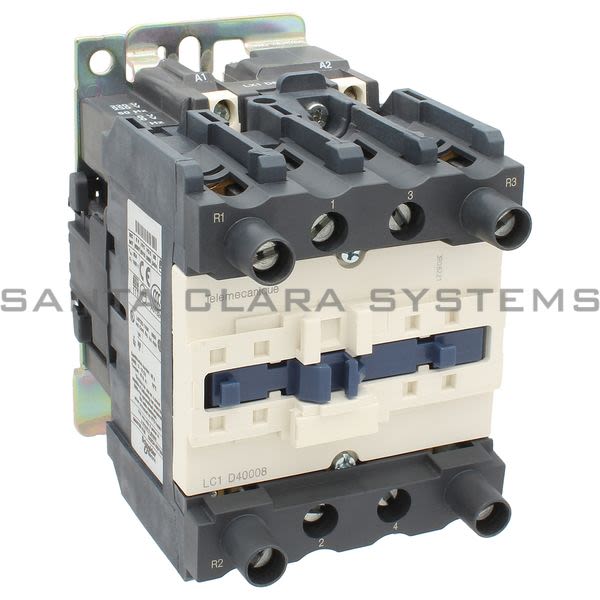

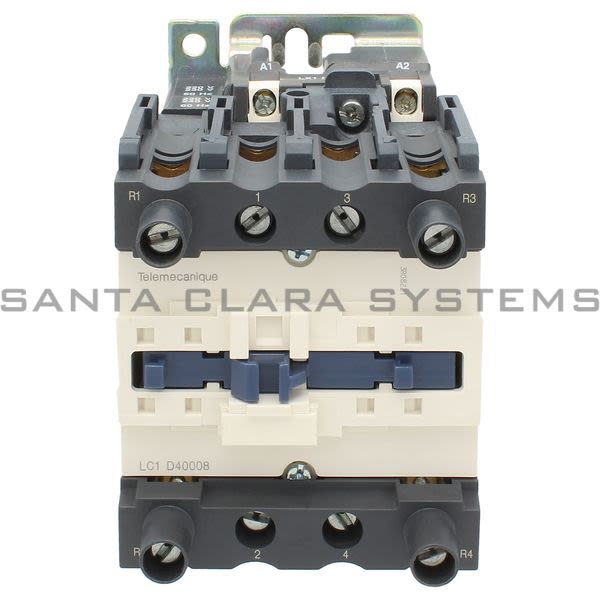

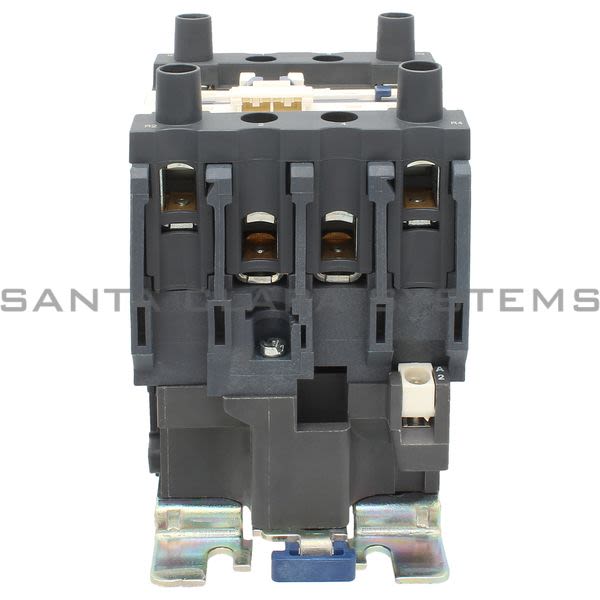

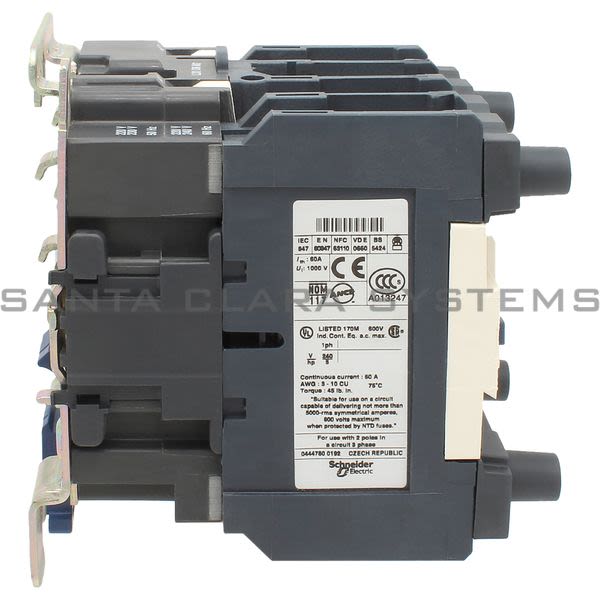

LC1D40008M7

Telemecanique - Contactor

Current response time:

16 Minutes 55 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Contactor
IP degree of protection: IP20 front face conforming to IEC 60529
Standards: CSA C22.2 No 14
Device short name: LC1D
Width: 85 mm
Height: 127 mm
Depth: 125 mm
Protective treatment: TH conforming to IEC 60068-2-30
[Ui] rated insulation voltage: Power circuit: 600 V CSA certified
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947
Operating altitude: 3000 m without
Mechanical durability: 6 Mcycles
Tightening torque: Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat 6 mm
Connections - terminals: Control circuit: screw clamp terminals 2 cable(s) 12.5 mmflexible with cable end
Range: TeSys
Mounting support: Plate
[Ith] conventional free air thermal current: 60 A (at 60 C) for power circuit
Product name: TeSys D
[Uc] control circuit voltage: 220 V AC 50/60 Hz
Electrical durability: 1.4 Mcycles 60 A AC-1 at Ue <= 440 V
[Ie] rated operational current: 60 A (at <60 C) at <= 440 V AC AC-1 for power circuit
Control circuit voltage limits: Drop-out: 0.3...0.6 Uc AC 50/60 Hz (at 60 C)
Poles description: 4P
Overvoltage category: III
Operating time: 4...19 ms opening
Associated fuse rating: 80 A gG at <= 690 V coordination type 1 for power circuit
Control circuit type: AC at 50/60 Hz
Product or component type: Contactor

Contactor application: Resistive load
Utilisation category: AC-1
Power pole contact composition: 2 NO + 2 NC
[Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz
Irms rated making capacity: 800 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity: 800 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current: 320 A 40 C - 10 s for power circuit
Average impedance: 1.5 mOhm - Ith 60 A 50 Hz for power circuit
Power dissipation per pole: 5.4 W AC-1
Safety cover: Without
Product certifications: RINA
Safety reliability level: B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Maximum operating rate: 3600 cyc/h 60 C
Coil technology: Without built-in suppressor module
inrush power in VA: 140 VA 60 Hz cos phi 0.75 (at 20 C)
hold-in power consumption in VA: 13 VA 60 Hz cos phi 0.3 (at 20 C)
Heat dissipation: 45 W at 50/60 Hz
Pollution degree: 3
Ambient air temperature for operation: -560 C
Ambient air temperature for storage: -6080 C
Permissible ambient air temperature around the device: -4070 C at Uc
Fire resistance: 850 C conforming to IEC 60695-2-1
Flame retardance: V1 conforming to UL 94
Mechanical robustness: Vibrations contactor open: 2 Gn, 5...300 Hz
Toxic heavy metal free: Yes
Mercury free: Yes
Circularity Profile: End of Life Information
