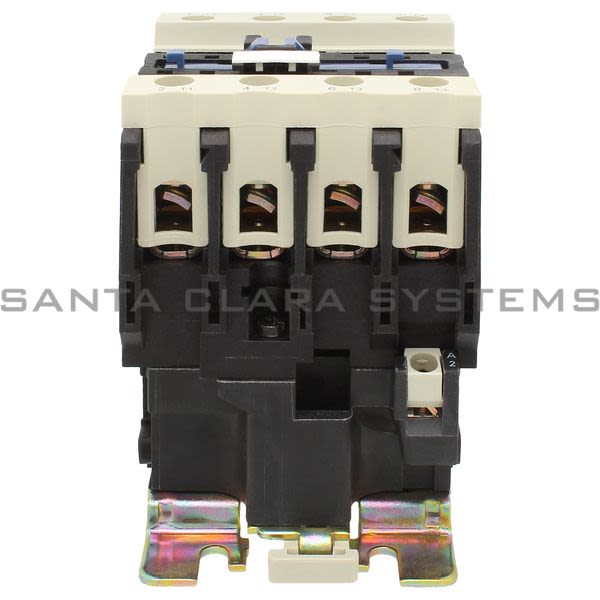

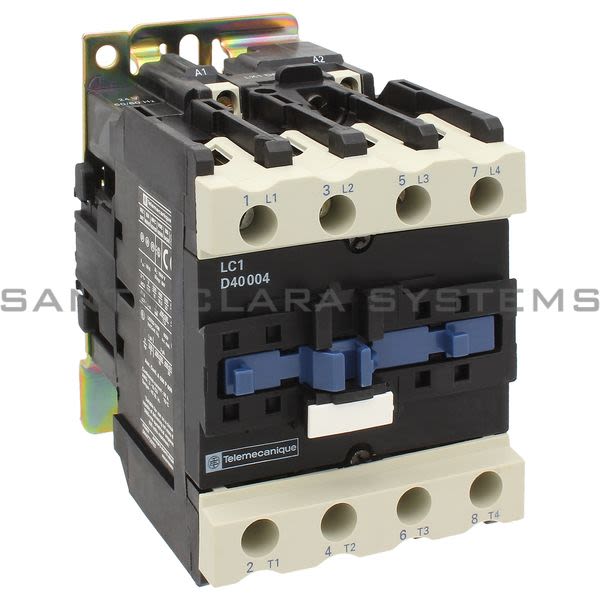

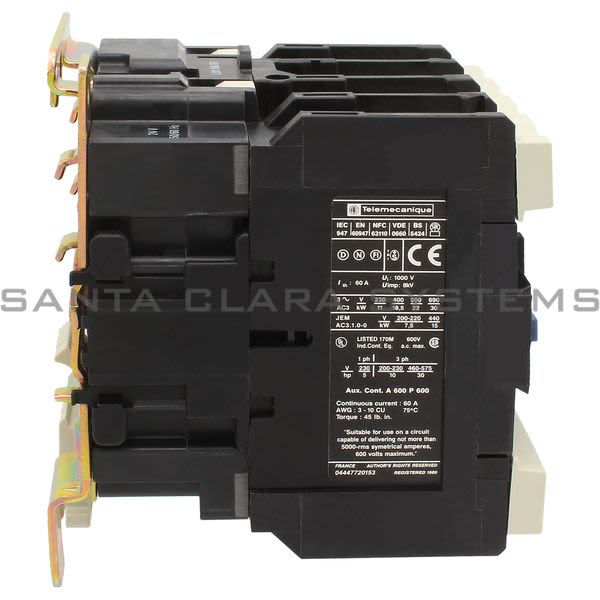

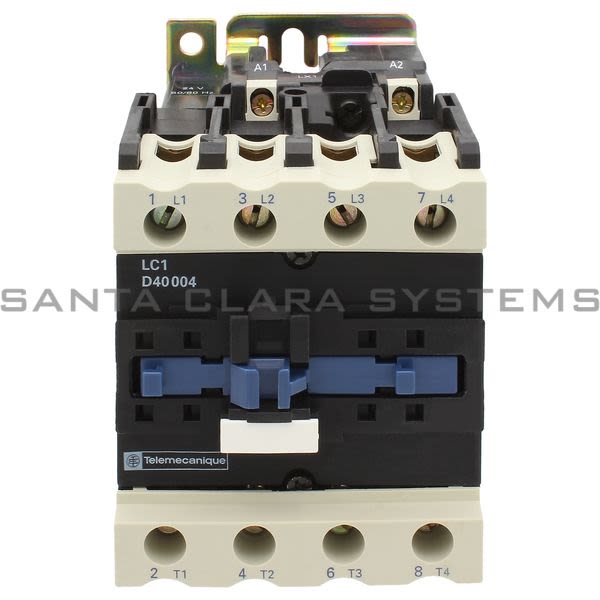

LC1D40004B7

Telemecanique - Contactor

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Contactor
Range of product: TeSys D
IP degree of protection: IP2x conforming to IEC 60529
Standards: UL 508
Device short name: LC1D
Width: 85 mm
Height: 127 mm
Depth: 125 mm
Protective treatment: TH (pollution degree 3) conforming to IEC 60068
[Ui] rated insulation voltage: Control circuit: 600 V CSA certified
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947
Operating altitude: 3000 m without
Mechanical durability: 6000000 cycles
Tightening torque: Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver flat 6 mm
Connections - terminals: Control circuit: screw clamp terminal 1 x 14 mmsolid without cable end
Mounting support: Rail
[Ith] conventional free air thermal current: 10 A (at 60 C) for control circuit
[Uc] control circuit voltage: 24 V AC 50/60 Hz
Shock resistance: 10 gn contactor closed
Vibration resistance: 2 gn 5300 Hz contactor opened
Insulation resistance: > 10 MOhm for control circuit
[Ie] rated operational current: 60 A (at <60 C) AC AC-1 for power circuit
Control circuit voltage limits: Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 C)
Poles description: 4P
Overvoltage category: III
Operating time: 12...26 ms closing
Associated fuse rating: 10 A gG for control circuit conforming to IEC 60947-5-1
Control circuit type: AC
Product or component type: Contactor

Contactor application: Resistive load
Utilisation category: AC-1
Coil type: Standard
Pole contact composition: 4 NO
Coil technology: Without built-in bidirectional peak limiting diode suppressor
Protective cover: With
Auxiliary contacts type: type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Flame retardance: V1 conforming to UL 94
[Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz
Irms rated making capacity: 140 A AC for control circuit conforming to IEC 60947-5-1
Rated breaking capacity: 800 A at 440 V for power circuit conforming to IEC 60947
Average impedance: - Ith 60 A 50 Hz for power circuit
Power dissipation per pole: 5.4 W AC-1
inrush power in VA: 140 VA cos phi 0.75 (at 20 C)
hold-in power consumption in VA: 13 VA 60 Hz cos phi 0.3 (at 20 C)
Safety reliability level: B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
Maximum operating rate: 3600 cyc/h 60 C
Minimum switching current: 5 mA for control circuit
Minimum switching voltage: 17 V for control circuit
Non-overlap time: 1.5 ms on de-energisation between NC and NO contacts
Product certifications: BV
Ambient air temperature for operation: -560 C
Ambient air temperature for storage: -6080 C
Permissible ambient air temperature around the device: -4070 C at Uc
Fire resistance: 850 C conforming to IEC 60695-2-1
Heat dissipation: 45 W at 50/60 Hz for control circuit
Toxic heavy metal free: Yes
Mercury free: Yes
Circularity Profile: End of Life Information
