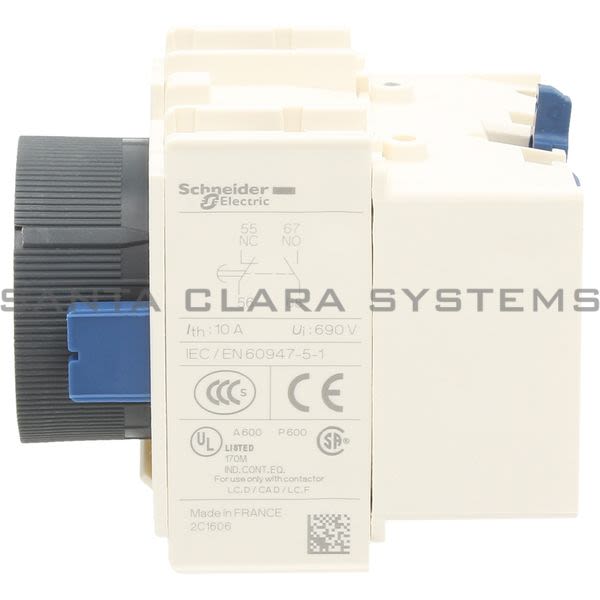

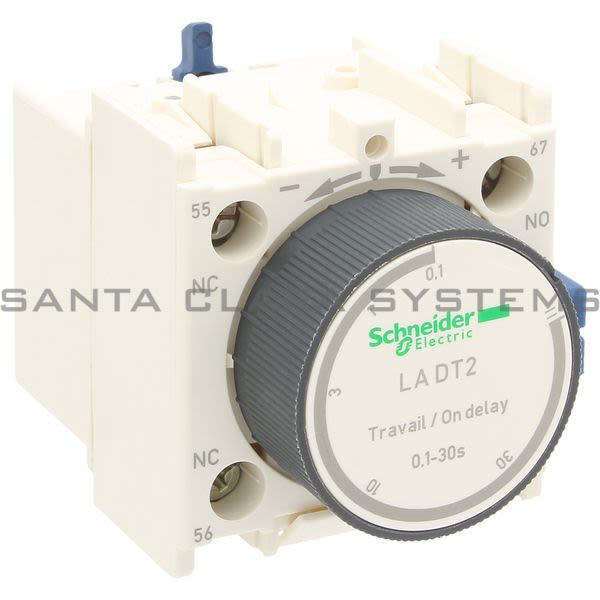

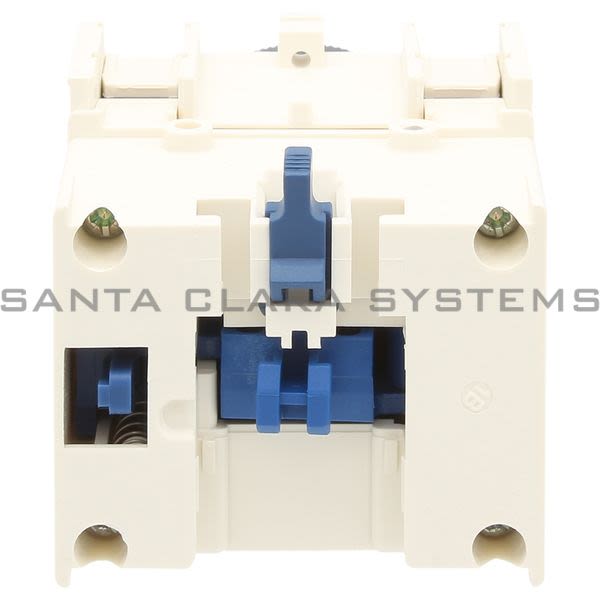

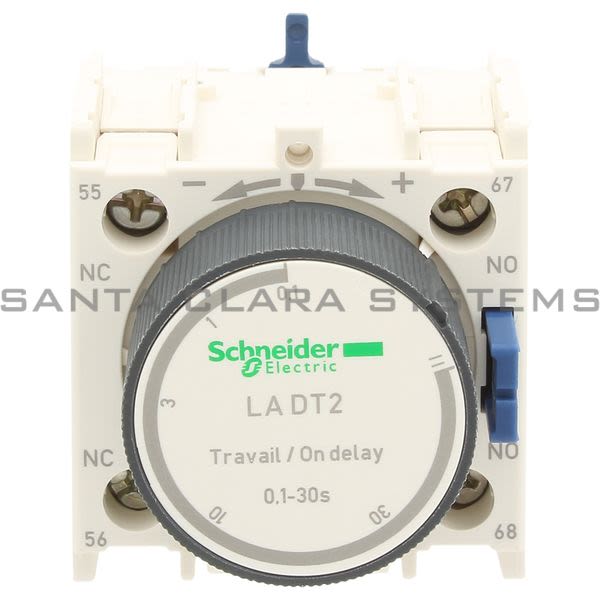

LADT2

Telemecanique - Timing Contactor

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Timing Contactor
Range of product: TeSys D
IP degree of protection: IP2x conforming to VDE 0106
Standards: EN 60947-5-1
Protective treatment: TH conforming to IEC 60068
[Ui] rated insulation voltage: 600 V - certifications UL
Operating altitude: 3000 m without
Mechanical durability: 5 Mcycles
Connections - terminals: Screw clamp terminals 1 cable(s) 12.5 mmflexible with cable end
Range: TeSys
[Ith] conventional free air thermal current: 10 A (at 60 C)
Insulation resistance: > 10 MOhm
Associated fuse rating: 10 A gG conforming to IEC 60947-5-1
Protection type: GG fuse 10 A rating according to operational current for Ue <= 690 V
Product or component type: Time delay auxiliary contact block
Pole contact composition: 1 NO + 1 NC

Mounting location: Front
[Ue] rated operational voltage: 690 V AC 25...400 Hz
Irms rated making capacity: 140 A at <= 690 V AC conforming to IEC 60947-5-1
Permissible short-time rating: 100 A 60 C 1 s
Minimum switching current: 5 mA
Minimum switching voltage: 17 V
Non-overlap time: 1.5 ms on de-energisation no overlap between NC and NO contact
Timer type: On delay
Time delay range: 0.1...30 s
Environmental characteristic: Normal environment
Product certifications: CSA
Ambient air temperature for operation: -560 C
Ambient air temperature for storage: -6080 C
Mercury free: Yes
Environmental Disclosure: Product Environmental Profile
Circularity Profile: No need of specific recycling operations

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LADT2 . Santa Clara Systems carries 10,326 items from Telemecanique.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
