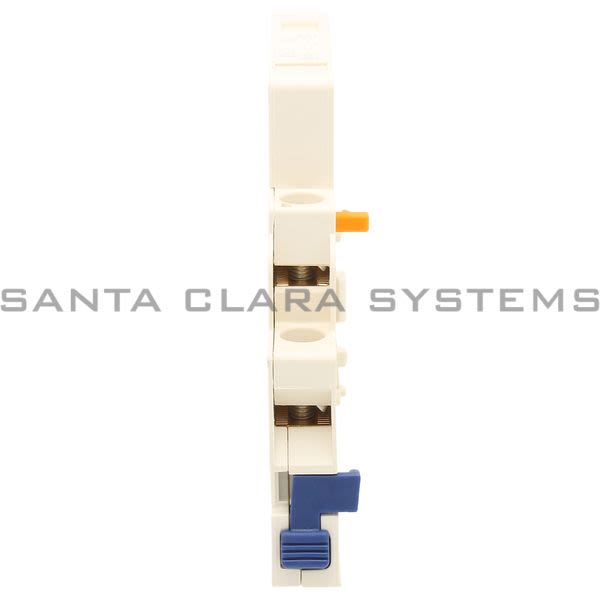

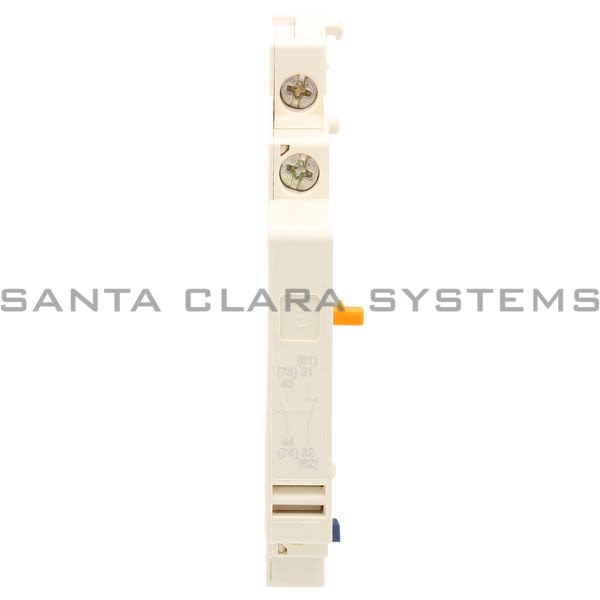

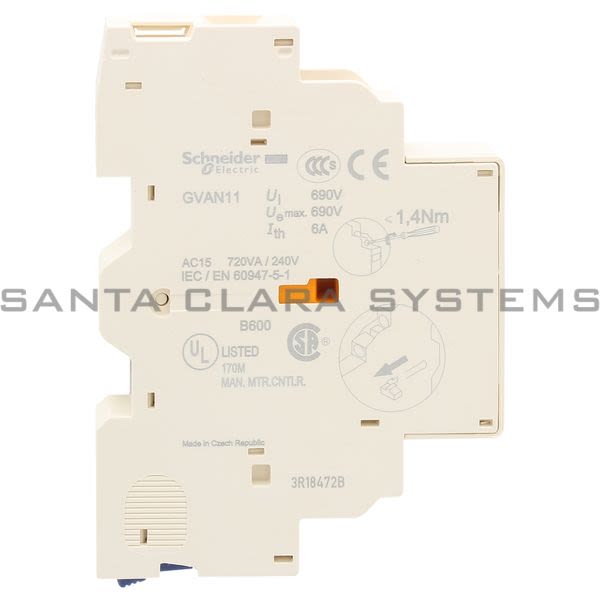

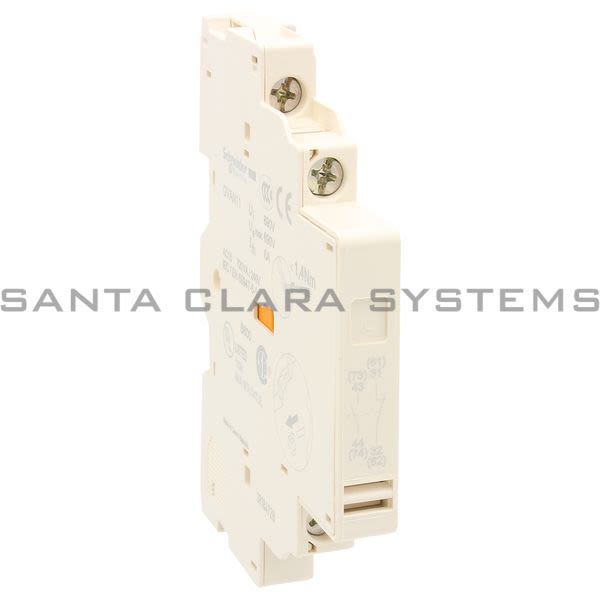

- Description: TeSys GV2 & GV3 - auxiliary contact block - 1 NO + 1 NC
- Product weight: 0.11 lb(US) (0.05 kg)
- Device short name: GVAN
- Width: 0.37 in (9.3 mm)
- Height: 3.5 in (89 mm)
- Depth: 2.6 in (66 mm)
- [Ui] rated insulation voltage: 600 V - conforming to UL 508, 690 V - conforming to IEC 60947-1, 600 V - conforming to CSA C22.2 No 14
- Mechanical durability: 100000 cycles
- Tightening torque: <= 12.39 lbf.in (1.4 N.m) - on screw clamp terminals
- Connections - terminals: Screw clamp terminals 1 cable 0...0 in (0.75...2.5 mm) - cable stiffness: flexible - without cable end, Screw clamp terminals 2 cable 0...0 in (0.75...2.5 mm) - cable stiffness: flexible - without cable end, Screw clamp terminals 2 cable 0...0 in (0.75...1.5 mm) - cable stiffness: flexible - with cable end, Screw clamp terminals 1 cable 0...0 in (0.75...1.5 mm) - cable stiffness: flexible - with cable end, Screw clamp terminals 1 cable 0...0 in (1...2.5 mm) - cable stiffness: solid, Screw clamp terminals 2 cable 0...0 in (1...2.5 mm) - cable stiffness: solid
- Range: TeSys
- [Ith] conventional free air thermal current: 6:00 AM
- System Voltage: 48...690 V AC, 24...240 V DC
- Protection type: GB2CB... circuit breaker rating according to operational current for Ue <= 415 V, GG fuse <= 10 A
- Mounting location: Left side
- Environmental characteristic: Normal environment
- Product or component type: Auxiliary contact block
- Product compatibility: GV2ME, GV2LE, GV3P, GV2L, GV2RT, GV3L, GV2P
- Pole contact composition: 1 NO + 1 NC
- Minimum switching current: 5 mA
- Minimum switching voltage: 17 V
- rated operational power in VA: 300 VA at 48 V AC-15 - electrical durability: 100000 cycles, 400 VA at 690 V AC-15 - electrical durability: 100000 cycles, 500 VA at 110...127 V AC-15 - electrical durability: 100000 cycles, 500 VA at 500 V AC-15 - electrical durability: 100000 cycles, 650 VA at 440 V AC-15 - electrical durability: 100000 cycles, 720 VA at 230...240 V AC-15 - electrical durability: 100000 cycles, 850 VA at 380...415 V AC-15 - electrical durability: 100000 cycles
- rated operational power in W: 120 W at 240 V DC-13 - electrical durability: 100000 cycles, 140 W at 110 V DC-13 - electrical durability: 100000 cycles, 140 W at 24 V DC-13 - electrical durability: 100000 cycles, 180 W at 60 V DC-13 - electrical durability: 100000 cycles, 240 W at 48 V DC-13 - electrical durability: 100000 cycles
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on GVAN11 . Santa Clara Systems carries 10,400 items from Telemecanique.
- Tesys Gv2 & Gv3 - Auxiliary Contact Block - 1 No + 1 Nc
