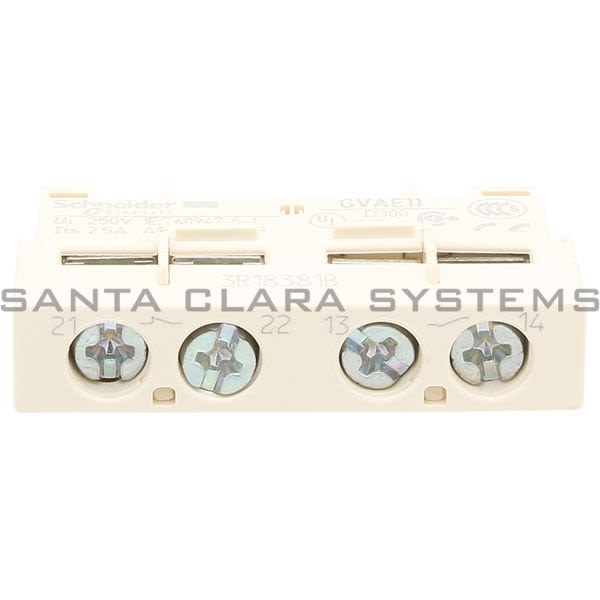

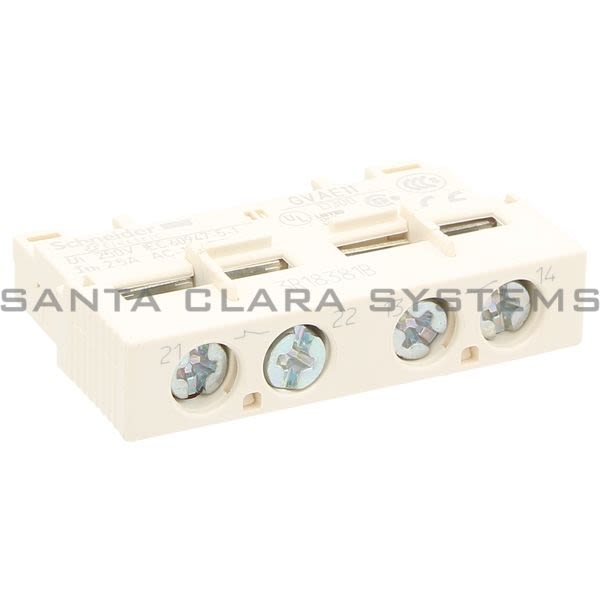

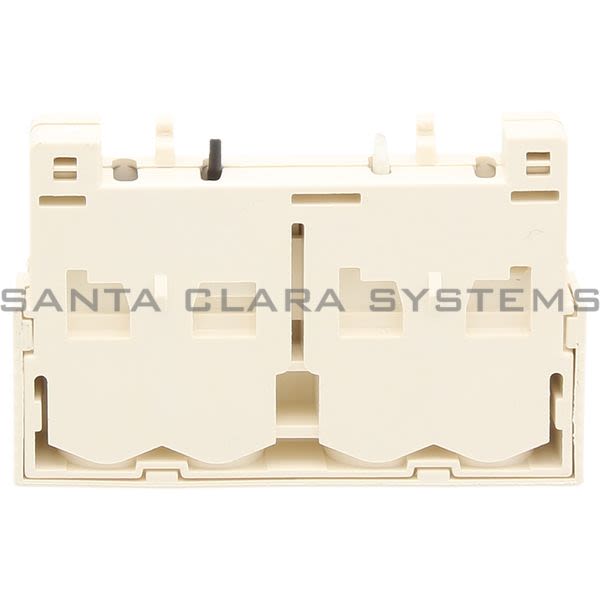

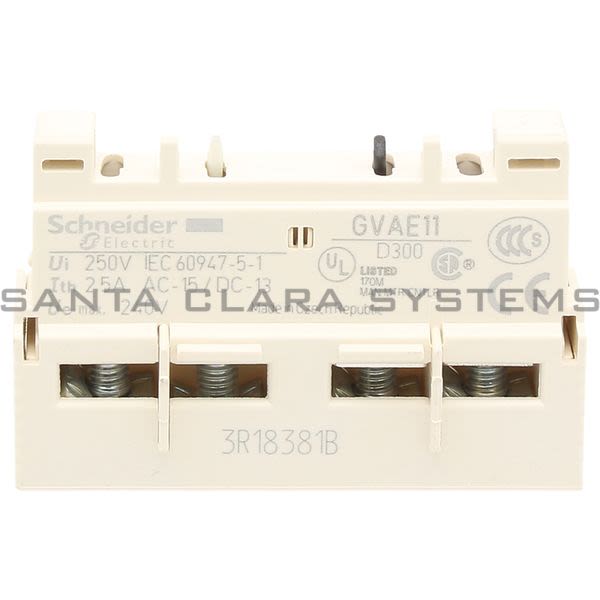

GVAE11

Telemecanique - TeSys GV2 & GV3 - auxiliary contact - 1 NO + 1 NC

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys GV2 & GV3 - auxiliary contact - 1 NO + 1 NC
Product weight: 0.04 lb(US) (0.02 kg)
Device short name: GVAE
Width: 1.75 in (44.5 mm)
Height: 0.39 in (10 mm)
Depth: 0.59 in (15 mm)
[Ui] rated insulation voltage: 300 V - conforming to UL 508, 300 V - conforming to CSA C22.2 No 14, 250 V - conforming to IEC 60947-1
Mechanical durability: 100000 cycles
Tightening torque: <= 12.39 lbf.in (1.4 N.m) - on screw clamp terminals
Connections - terminals: Screw clamp terminals 1 cable 0...0 in (0.75...2.5 mm) - cable stiffness: flexible - without cable end, Screw clamp terminals 2 cable 0...0 in (0.75...2.5 mm) - cable stiffness: flexible - without cable end, Screw clamp terminals 1 cable 0...0 in (0.75...1.5 mm) - cable stiffness: flexible - with cable end, Screw clamp terminals 1 cable 0...0 in (1...2.5 mm) - cable stiffness: solid, Screw clamp terminals 2 cable 0...0 in (1...2.5 mm) - cable stiffness: solid
Range: TeSys
[Ith] conventional free air thermal current: 2.5 A

System Voltage: 24...240 V AC, 24...60 V DC
Protection type: GG fuse <= 10 A, GB2CB06 circuit breaker <= 10 A
Mounting location: Front side
Environmental characteristic: Normal environment
Product or component type: Auxiliary contact block
Product compatibility: GV2L, GV2LE, GV3P, GV2ME, GV3L, GV2P, GV2RT
Pole contact composition: 1 NO + 1 NC
Quantity per set: Set of 10
Minimum switching current: 5 mA
Minimum switching voltage: 17 V
rated operational power in VA: 120 VA at 110...120 V AC-15 - electrical durability: 100000 cycles, 120 VA at 230...240 V AC-15 - electrical durability: 100000 cycles, 48 VA at 24 V AC-15 - electrical durability: 100000 cycles, 60 VA at 48 V AC-15 - electrical durability: 100000 cycles
rated operational power in W: 15 W at 48 V DC-13 - electrical durability: 100000 cycles, 24 W at 24 V DC-13 - electrical durability: 100000 cycles, 9 W at 60 V DC-13 - electrical durability: 100000 cycles

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on GVAE11 . Santa Clara Systems carries 10,400 items from Telemecanique.
