GV3P13

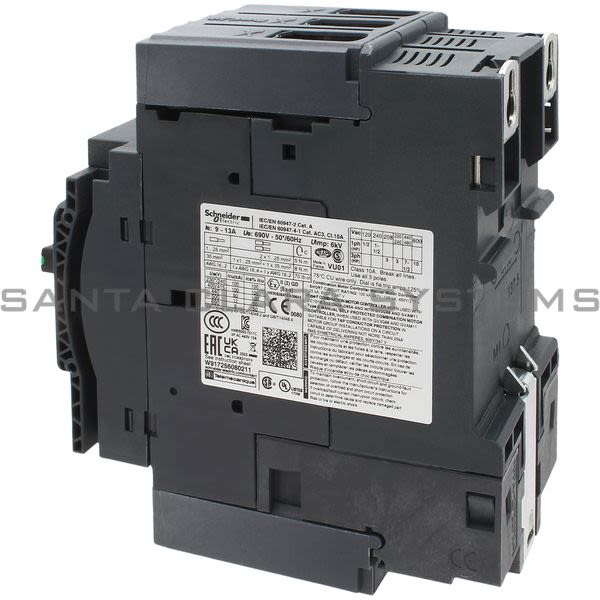

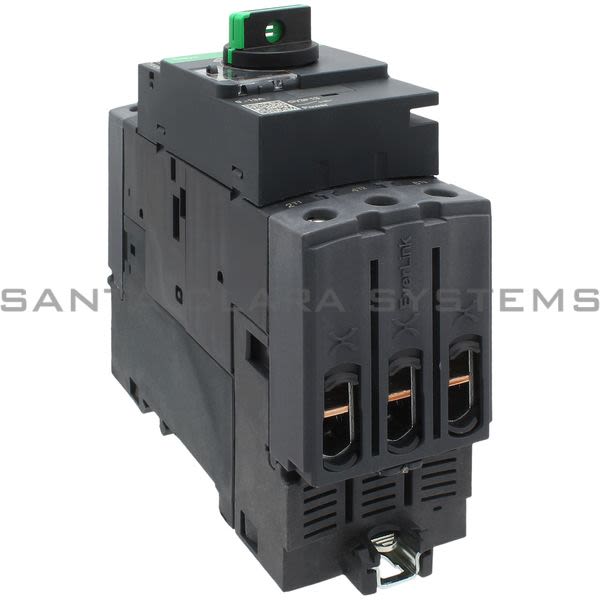

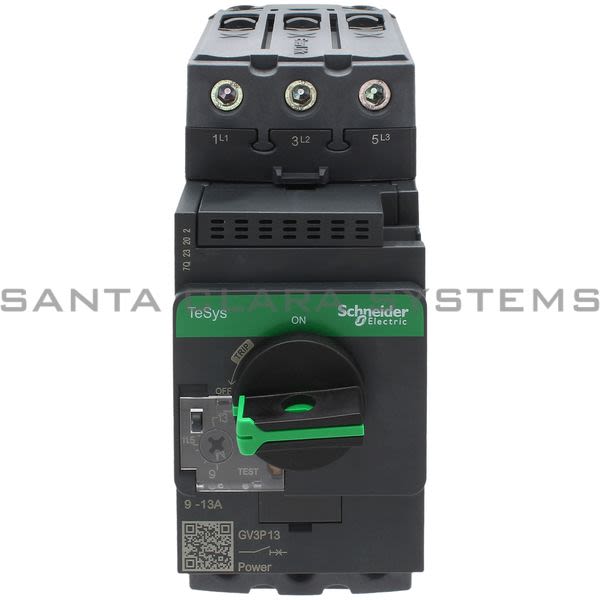

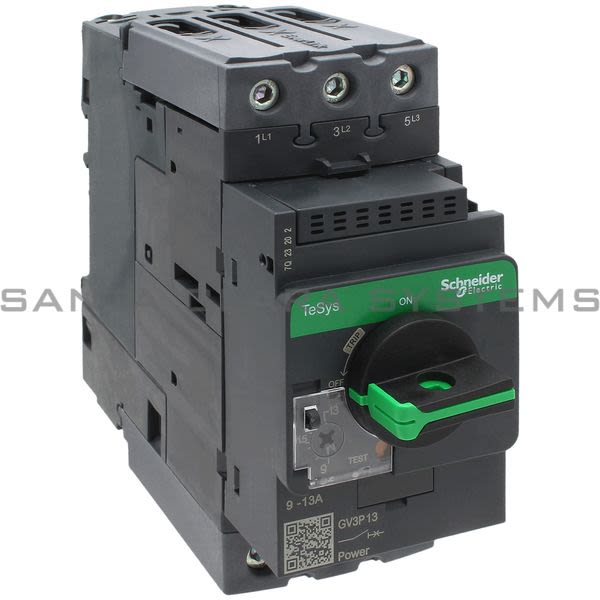

Telemecanique - TeSys GV3 - Circuit breaker - thermal-magnetic - 9?13A - EverLink BTR connectors

Current response time:

8 Minutes 31 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys GV3 - Circuit breaker - thermal-magnetic - 9?13A - EverLink BTR connectors
Product weight: 2.12 lb(US) (0.96 kg)
IP degree of protection: IP20 conforming to IEC 60529
Standards: EN/IEC 60947-1, EN/IEC 60947-4-1, EN/IEC 60947-2, CSA C22.2 No 14-05 type E, UL 508 type E
Device short name: GV3P
Width: 2.17 in (55 mm)
Height: 5.2 in (132 mm)
Depth: 5.35 in (136 mm)
Protective treatment: TH
[Ui] rated insulation voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947-2
Operating altitude: 9842.52 ft. (3000 m)
Mechanical durability: 50000 cycles
Tightening torque: 8 N.m - on EverLink BTR screw connectors- cable 35 mm, 44.25 lbf.in (5 N.m) - on EverLink BTR screw connectors- cable 0.04 in (25 mm)
Connections - terminals: EverLink BTR screw connectors 2 cable(s) 0...0.04 in (1...25 mm) - cable stiffness : solid, EverLink BTR screw connectors 2 cable(s) 0...0.04 in (1...25 mm) - cable stiffness : flexible - without cable end, EverLink BTR screw connectors 2 cable(s) 0...0.04 in (1...25 mm) - cable stiffness : flexible - with cable end
Range: TeSys
Mounting support: Plate, Rail
[Ith] conventional free air thermal current: 13 A conforming to IEC 60947-4-1
System Voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2
Operating rate: 25 cyc/h
Product name: TeSys GV3
Electrical durability: 50000 cycles AC-3 at 440 V In
motor power kW: 11 kW at 690 V AC 50/60 Hz, 7.5 kW at 500 V AC 50/60 Hz, 5.5 kW at 400/415 V AC 50/60 Hz
Utilization category: AC-3 conforming to IEC 60947-4-1, Category A conforming to IEC 60947-2

Poles description: 3P
Control type: Rotary knob
Breaking capacity: 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 6 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2, 12 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
Mounting position: Horizontal, Vertical
Network type: AC
Product certifications: RINA, GL, LROS (pending), CCC, DNV, CSA, BV, UL, EAC, ATEX
Product or component type: Circuit breaker
Network frequency: 50/60 Hz conforming to IEC 60947-4-1
Device application: Motor
Mounting mode: By Clips / By Screws
IK degree of protection: IK09
Trip unit technology: Thermal-magnetic
Ambient air temperature for operation: -4...140 F (-20...60 C)
Ambient air temperature for storage: -40...176 F (-40...80 C)
Fire resistance: 1760 F (960 C) conforming to IEC 60695-2-1
[Ics] rated service short-circuit breaking capacity: 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 %at 500 V AC 50/60 Hz conforming to IEC 60947-2, 50 %at 690 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
[In] rated current: 9...13 A
Trip unit rating: 9...13 A
Magnetic tripping current: 182 A
Power dissipation per pole: 8 W
Rated duty: Continuous conforming to IEC 60947-4-1
Suitability for isolation: Yes conforming to IEC 60947-1
Phase failure sensitivity: Yes conforming to IEC 60947-4-1
