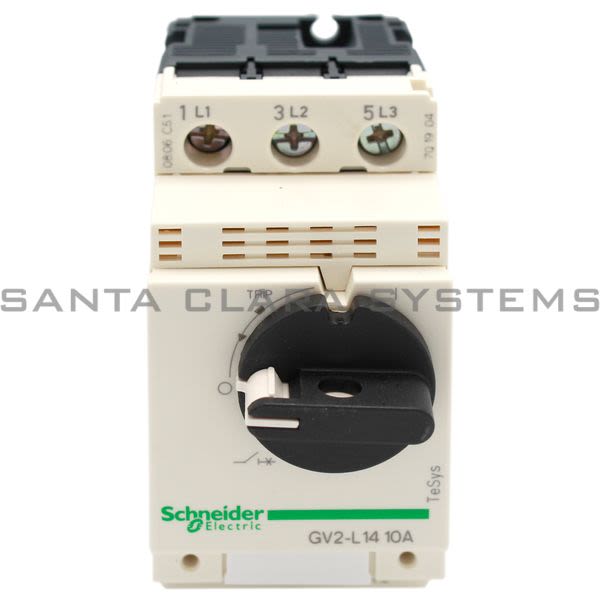

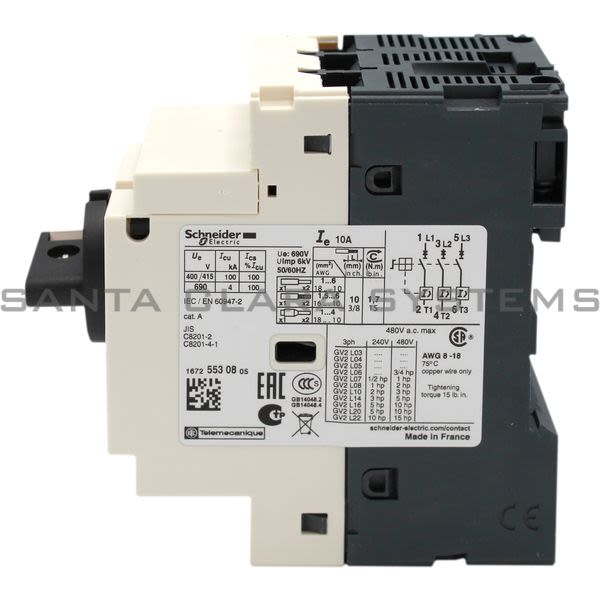

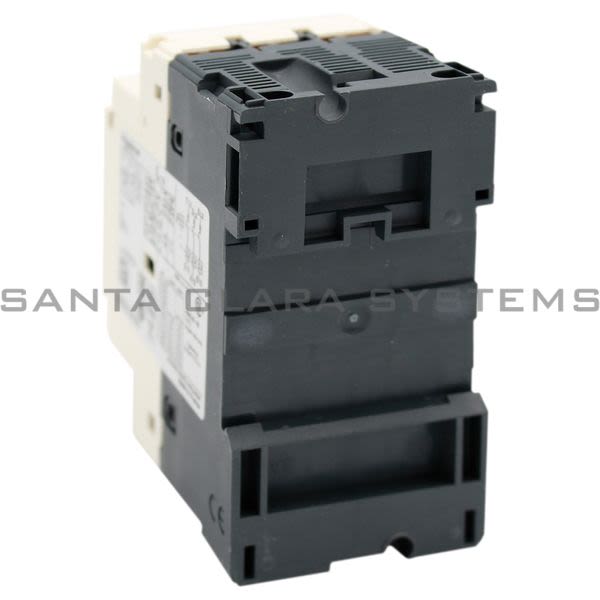

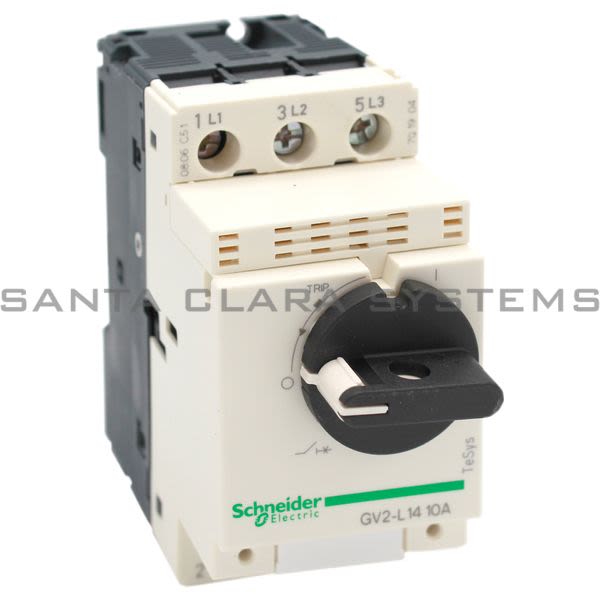

GV2L14

Telemecanique - TeSys GV2 - Circuit breaker - magnetic - 10 A - screw clamp terminals

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys GV2 - Circuit breaker - magnetic - 10 A - screw clamp terminals
Product weight: 0.73 lb(US) (0.33 kg)
Standards: NF C 79-130, EN 60204, IEC 60947-2, NF C 63-120, IEC 60947-1, VDE 0113, VDE 0660, NF C 63-650
Device short name: GV2L
Width: 1.77 in (45 mm)
Height: 3.5 in (89 mm)
Depth: 3.82 in (97 mm)
Protective treatment: TH
[Ui] rated insulation voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947-2
Operating altitude: 6561.68 ft. (2000 m)
Mechanical durability: 100000 cycles
Tightening torque: 1.7 N.m on screw clamp terminals
Connections - terminals: Screw clamp terminals 2 cable(s) 0...0.01 in (1...6 mm) - cable stiffness : solid, Screw clamp terminals 2 cable(s) 0...0.01 in (1.5...6 mm) - cable stiffness : flexible - without cable end, Screw clamp terminals 2 cable(s) 0...0.01 in (1...4 mm) - cable stiffness : flexible - with cable end
Range: TeSys
Mounting support: Rail, Plate
System Voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2
Operating rate: 40 cyc/h
Product name: TeSys GV2
Electrical durability: 100000 cycles AC-3 at 415 V
motor power kW: 3 kW at 400/415 V AC 50/60 Hz, 4 kW at 400/415 V AC 50/60 Hz, 4 kW at 500 V AC 50/60 Hz, 7.5 kWat 690 V AC 50/60 Hz, 5.5 kW at 690 V AC 50/60 Hz
Utilization category: AC-3 conforming to IEC 60947-4-1, Category A conforming to IEC 60947-2
Poles description: 3P

Control type: Rotary knob
Breaking capacity: 10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2, 4 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
Mounting position: Horizontal, Vertical
Mounting mode: By Clips / By Screws
Product certifications: CSA, GL, BV, LROS (Lloyds register of shipping), RINA, DNV, CCC
Product or component type: Circuit breaker
IK degree of protection: IK04
Device application: Motor
Ambient air temperature for operation: -4...140 F (-20...60 C)
Ambient air temperature for storage: -40...176 F (-40...80 C)
Network type: AC
Fire resistance: 1760 F (960 C) conforming to IEC 60695-2-1
Network frequency: 50/60 Hz conforming to IEC 60947-2
Power dissipation per pole: 1.8 W
[Ics] rated service short-circuit breaking capacity: 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2, 75 % at 440 V AC 50/60 Hz conforming to IEC 60947-2, 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
Trip unit rating: 10:00 AM
Trip unit technology: Magnetic
Rated duty: Continuous conforming to IEC 60947-4-1
Magnetic tripping current: 138 A
Mechanical robustness: Shocks 30 Gn conforming to IEC 60068-2-27, Vibrations 5 Gn, 5...150 Hz conforming to IEC 60068-2-6
Suitability for isolation: Yes conforming to IEC 60947-1
Phase failure sensitivity: Yes
