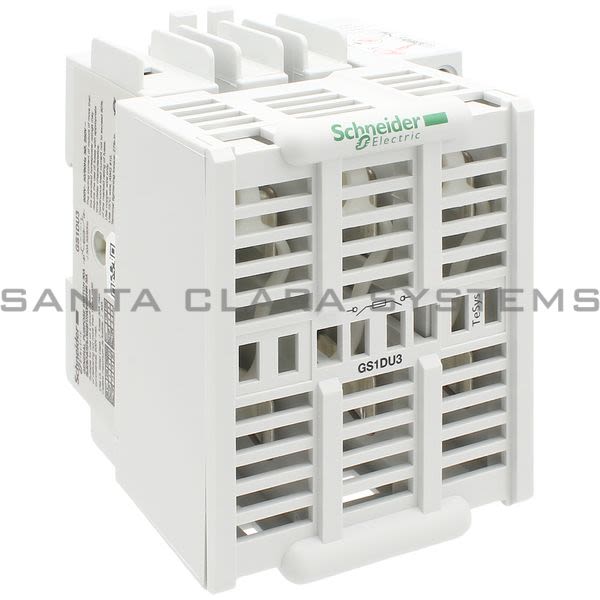

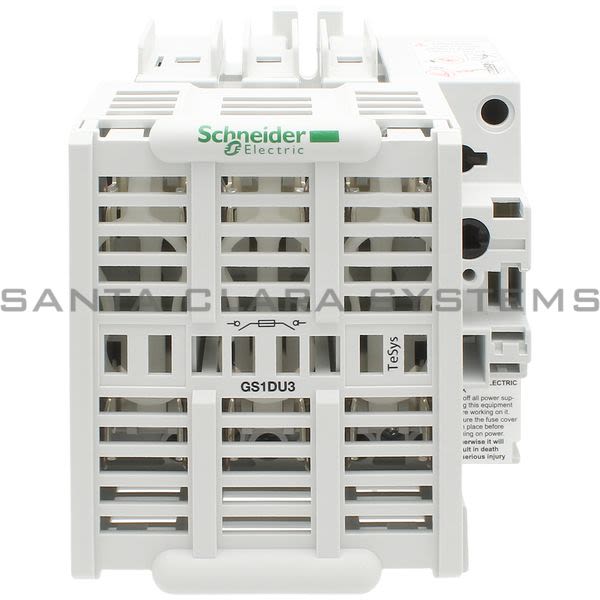

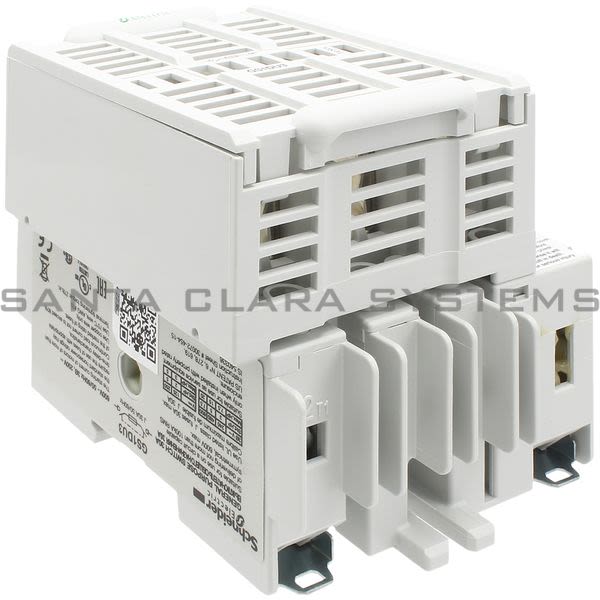

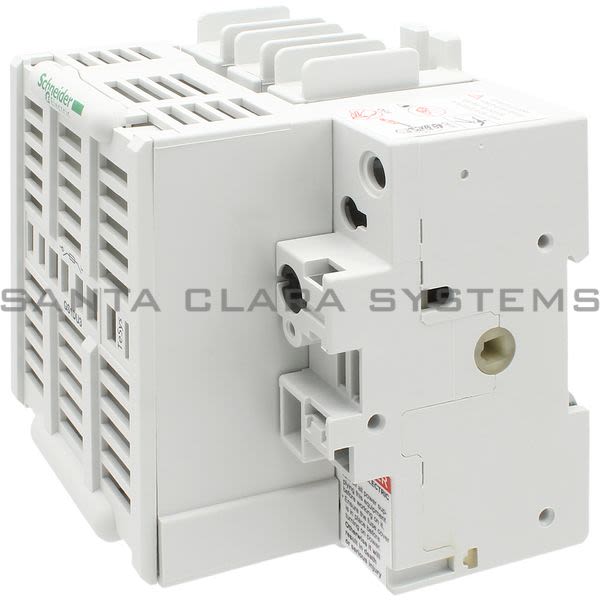

GS1DU3

Telemecanique - TeSys GS - switch-disconnector-fuse - 3 P - UL 30 A - fuse size J

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys GS - switch-disconnector-fuse - 3 P - UL 30 A - fuse size J
Product weight: 1.54 lb(US) (0.7 kg)
IP degree of protection: IP20 with terminal cover conforming to IEC 60529
Standards: UL98, CSA C22.2 No 4
Device short name: GS1D
Width: 4.13 in (105 mm)
Height: 4.57 in (116 mm)
Depth: 3.9 in (99 mm)
[Ui] rated insulation voltage: 690 V
[Uimp] rated impulse withstand voltage: 8 kV
Mechanical durability: 10000 cycles
Tightening torque: Power circuit: 26.55 lbf.in (3 N.m)
Connections - terminals: Power circuit: lugs-ring terminals cable 2...6 mm
Range: TeSys
Mounting support: Rail, Plate
[Ith] conventional free air thermal current: 30 A at 104 F (40 C)
Product name: TeSys GS
Electrical durability: 6000 cycles

[Ie] rated operational current: 30 A
Poles description: 3P
Fuse type: UL
Fuse size: J
Type of operating handle: External frontal
Product certifications: LROS (Lloyds register of shipping), LOVAG, ASEFA
Product or component type: Switch-disconnector-fuse
Ambient air temperature for operation: -4...158 F (-20...70 C)
Device application: Protection
rated operational power in W: 15 kW at 400 V, 25 kW at 690 V, 18.5 kW at 500 V
Ambient air temperature for storage: -40...176 F (-40...80 C)
Design: Compact
Short-circuit withstand: 5.5 kA
Fire resistance: 1760 F (960 C) body conforming to IEC 60695-2-1
Protected poles description: 3t
Contacts type and composition: 3 NO
Network type: DC, AC
Network frequency: 50/60 Hz
