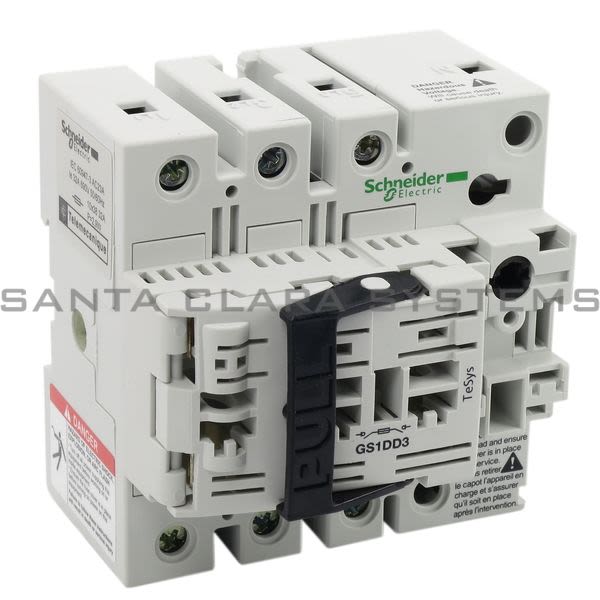

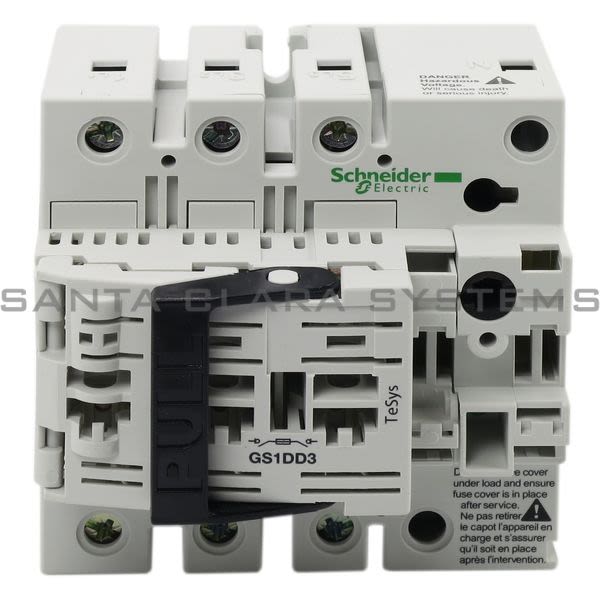

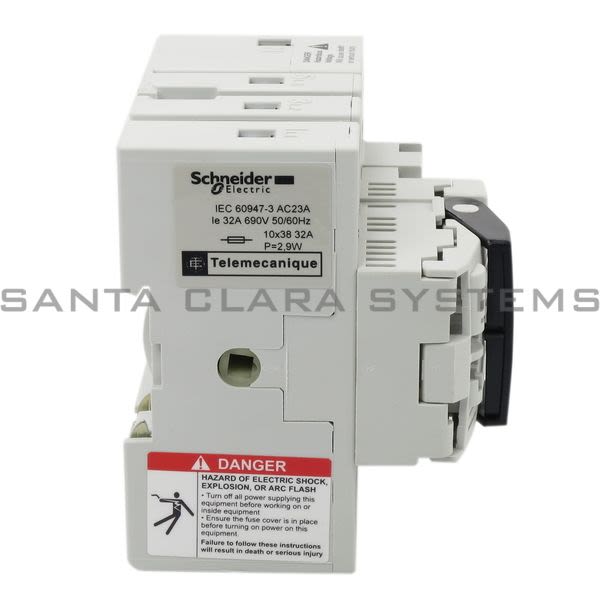

GS1DD3

Telemecanique - Disconnect Switch

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Disconnect Switch
IP degree of protection: IP20 conforming to IEC 60529 (with terminal cover)
Standards: IEC 60947-3
Device short name: GS1 DD
Width: 96 mm
Height: 98 mm
Depth: 112 mm
Protective treatment: TH
[Ui] rated insulation voltage: 800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage: 8 kV
Mechanical durability: 20000 cycles
Tightening torque: Power circuit: 3 N.m - on screw-clamp terminals
Connections - terminals: Power circuit: screw-clamp terminals2.5…16 mm² flexible
Range: TeSys
Mounting support: Plate
[Ith] conventional free air thermal current: 32 A (at 40 °C)
Electrical durability: 1500 cycles AC-23A
[Ie] rated operational current: 20 A at 440 V 2 poles in series per phase DC-23A
Poles description: 3P
Breaking capacity: 256 A at 400 V (AC-23B)

Fuse type: NFC
Fuse size: 10 x 38 mm
Product or component type: Switch-disconnector-fuse
Device application: Protection
Protected poles description: 3t
Contacts type and composition: 3 NO
Network type: AC
Network frequency: 50/60 Hz
Type of operating handle: Direct frontal
rated operational power in W: 15 kW at 400 V
Making capacity: 320 A at 400 V AC-23B
[Icm] rated short-circuit making capacity: 100 kA at 400 V with protection by gG fuses
Short-circuit withstand: 5.5 kA
Product certifications: CE
Ambient air temperature for operation: -20…70 °C
Ambient air temperature for storage: -40…80 °C
Fire resistance: 960 °C body conforming to IEC 60695-2-1
Net weight: 0.46 kg
Toxic heavy metal free: Yes
Mercury free: Yes
