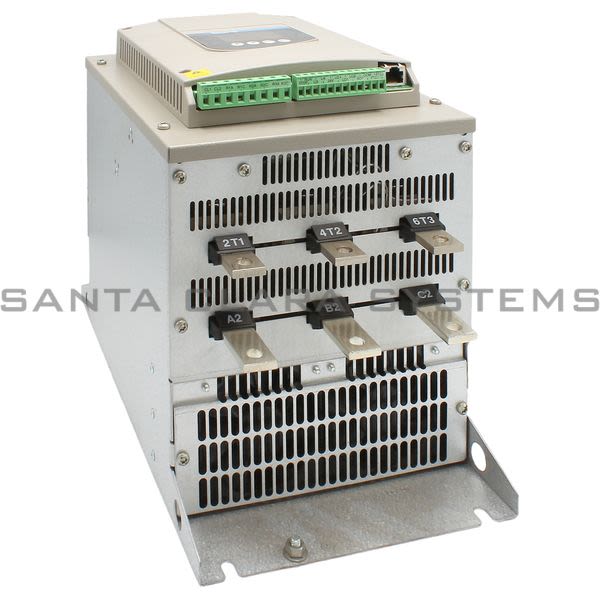

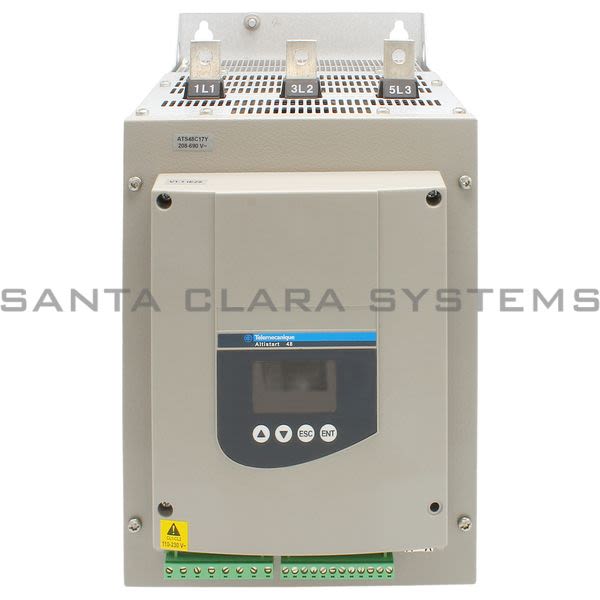

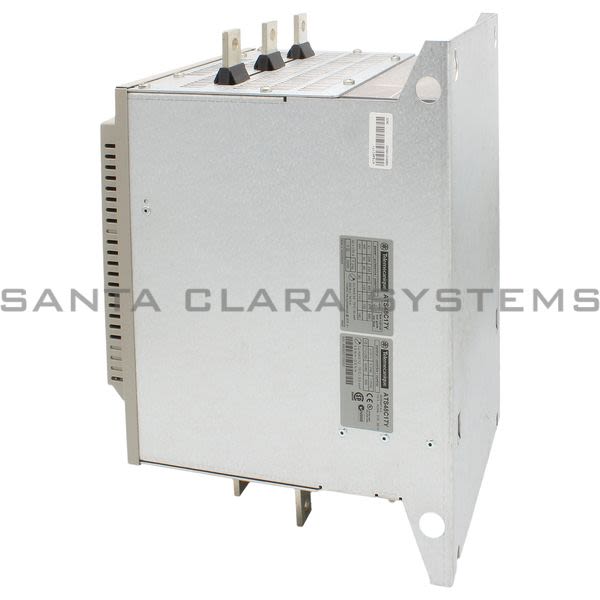

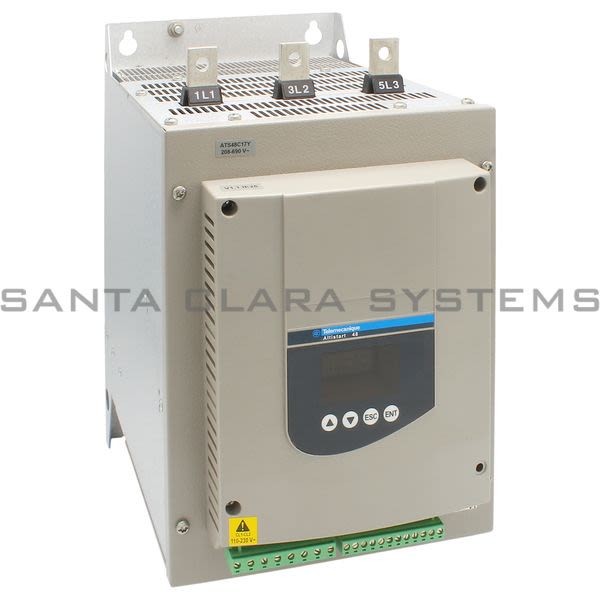

ATS48C17Y

Telemecanique - soft starter for asynchronous motor - ATS48 - 156 A - 208..690 V - 37..160 KW

Current response time:

6 Minutes 21 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: soft starter for asynchronous motor - ATS48 - 156 A - 208..690 V - 37..160 KW
Product weight: 27.34 lb(US) (12.4 kg)
Range of product: Altistart 48
IP degree of protection: IP00
Standards: EN/IEC 60947-4-2
Device short name: ATS48
Width: 7.87 in (200 mm)
Height: 13.39 in (340 mm)
Depth: 10.43 in (265 mm)
Operating altitude: <= 3280.84 ft. (1000 m) without derating, > 3280.84...6561.68 ft. (> 1000...2000 m) with current derating of 2.2 % per additional 100 m
[Uc] control circuit voltage: 110 - 15 % to 230 + 10 %, 50/60 Hz
Vibration resistance: 1 gn (f = 13...200 Hz) conforming to EN/IEC 60068-2-6, 1.5 mm (f = 2...13 Hz) conforming to EN/IEC 60068-2-6
Shock resistance: 15 gn 11 ms conforming to EN/IEC 60068-2-27
motor power kW: 110 kW at 500 V for standard applications, 110 kW at 525 V for standard applications, 110 kW at 660 V for severe applications, 110 kW at 690 V for severe applications, 132 kW at 660 V for standard applications, 160 kW at 690 V for standard applications, 37 kW at 230 V for severe applications, 45 kW at 230 V for standard applications, 75 kW at 400 V for severe applications, 75 kW at 440 V for severe applications, 90 kW at 400 V for standard applications, 90 kW at 440 V for standard applications, 90 kW at 500 V for severe applications, 90 kW at 525 V for severe applications
Utilization category: AC-53A
[Us] rated supply voltage: 208...690 V (- 15...10 %)
Relative humidity: 0...95 % without condensation or dripping water conforming to EN/IEC 60068-2-3
Protection type: Phase failure (line), Thermal protection (motor), Thermal protection (starter)
Assembly style: With heat sink
Electromagnetic compatibility: Conducted and radiated emissions conforming to IEC 60947-4-2 level A, Conducted and radiated emissions conforming to IEC 60947-4-2 level B, Damped oscillating waves conforming to IEC 61000-4-12 level 3, Electrostatic discharge conforming to IEC 61000-4-2 level 3, Immunity to electrical transients conforming to IEC 61000-4-4 level 4, Immunity to radiated radio-electrical interference conforming to IEC 61000-4-3 level 3, Voltage/current impulse conforming to IEC 61000-4-5 level 3
Product or component type: Soft starter
Function available: External bypass (optional)
Product destination: Asynchronous motors
Supply voltage limits: 177...759 V
Product certifications: NOM 117, CSA, UL, DNV, CCC, SEPRO, TCF, C-Tick, GOST
Product specific application: Heavy duty industry and pumps
Supply frequency: 50...60 Hz (- 5...5 %)
Network frequency: 47.5...63 Hz
Device connection: In the motor supply line
Noise level: 50 dB
Factory setting current: 156 A

Pollution degree: Level 3 conforming to IEC 60664-1
Motor power hp: 100 hp at 460 V for severe applications, 125 hp at 460 V for standard applications, 125 hp at 575 V for severe applications, 150 hp at 575 V for standard applications, 40 hp at 208 V for severe applications, 50 hp at 208 V for standard applications, 50 hp at 230 V for severe applications, 60 hp at 230 V for standard applications
power dissipation in W: For standard applications 391 W, For standard applications 479 W
Control circuit consumption: 30 W
Ambient air temperature for operation: 14...104 F (-10...40 C) without derating, > 104...140 F (> 40...60 C) with current derating of 2 % per C
Discrete output number: 2
Ambient air temperature for storage: -13...158 F (-25...70 C)
Type of start: Start with torque control (current limited to 5 In)
Discrete output type: (LO1) logic output 0 V common configurable, (LO2) logic output 0 V common configurable, (R1) relay outputs fault relay NO, (R2) relay outputs end of starting relay NO, (R3) relay outputs motor powered NO
IcL starter rating: 140 A for standard applications, 170 A for standard applications
Output absolute accuracy precision: +/- 5 %
Minimum switching current: Relay outputs 10 mA at 6 V DC
Maximum switching current: Logic output 0.2 A at 30 V DC, Relay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5, L/R = 20 ms, Relay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5, L/R = 20 ms
Discrete input number: 5
Discrete input type: PTC, 750 Ohm at 77 F (25 C), (Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm
Discrete input voltage: 24 V (<= 30 V)
Discrete input logic: Positive logic (Stop, Run, LI3, LI4) state 0 < 5 V and <= 2 mA, state 1 > 11 V and >= 5 mA
Supply inrush current: Adjustable 0.4...1.3 Icl
Analogue output type: (AO) current output 0-20 mA or 4-20 mA <= 500 Ohm
Communication port protocol: Modbus
Connector type: 1 RJ45
Communication data link: Serial
Physical interface: RS485 multidrop
Transmission rate: 4800, 9600 or 19200 bps
Installed device: 31
Marking: CE
Type of cooling: Forced convection
Operating position: Vertical +/- 10 degree
Power range: 30...50 kW at 200...240 V 3 phases, 55...100 kW at 380...440 V 3 phases, 110...220 kW at 480...500 V 3 phases
Motor starter type: Soft starter
