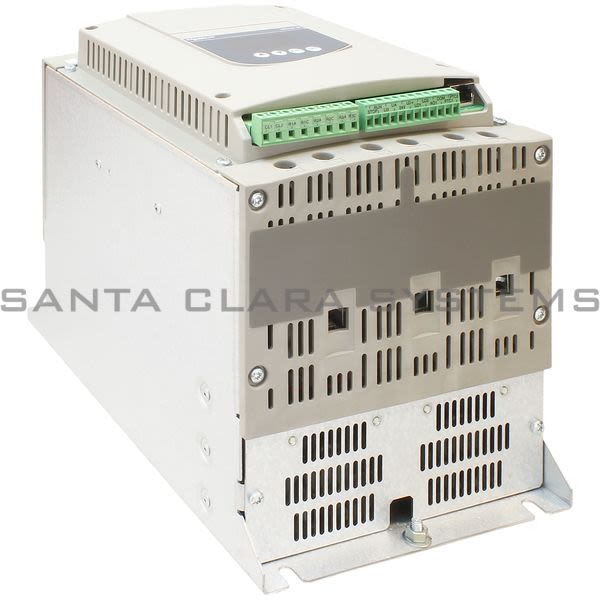

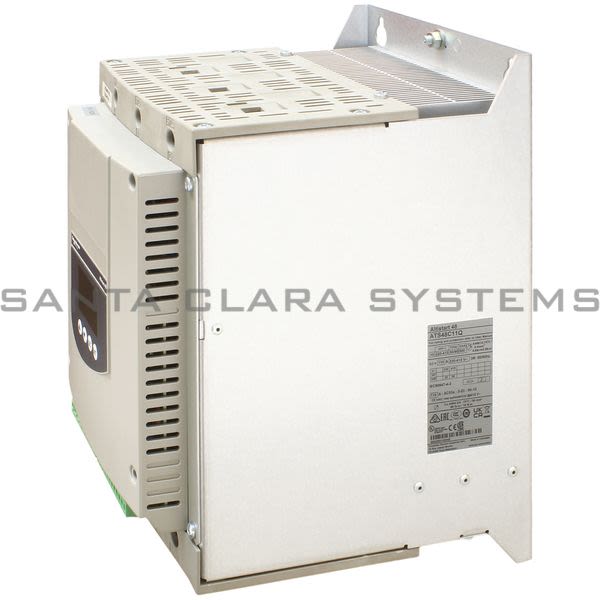

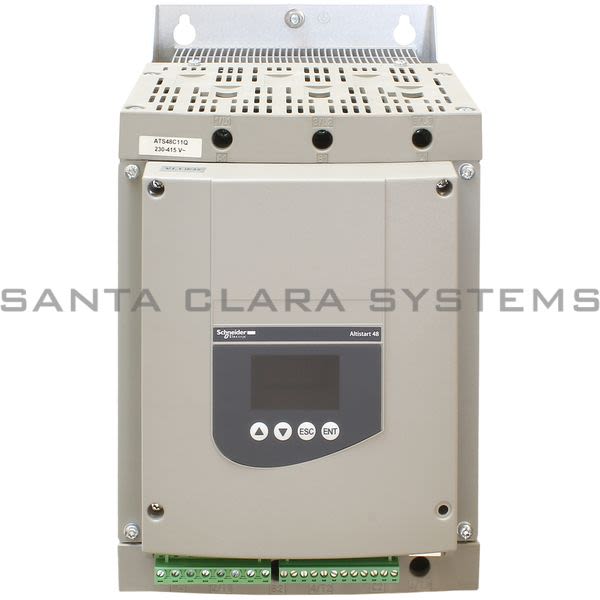

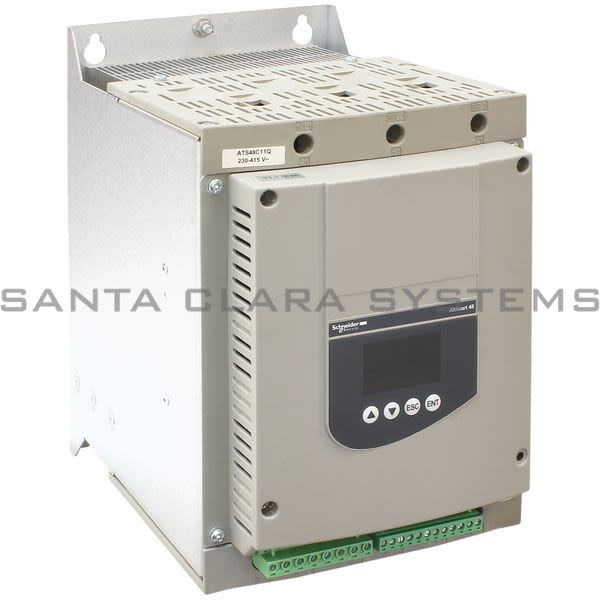

ATS48C11Q

Telemecanique - Drive

Current response time:

16 Minutes 15 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Drive
Range of product: Altistart 48
IP degree of protection: IP20
Standards: EN/IEC 60947-4-2
Device short name: ATS48
Width: 190 mm
Height: 290 mm
Depth: 235 mm
Operating altitude: <= 1000 m without
[Uc] control circuit voltage: 220 - 15 % to 415 + 10 %, 50/60 Hz
Vibration resistance: 1 gn (f= 13200 Hz) conforming to EN/IEC 60068-2-6
Shock resistance: 15 gn for 11 ms conforming to EN/IEC 60068-2-27
motor power kW: 55 kW at 230 V connection to the motor delta terminals for standard applications
Relative humidity: 095 % without condensation or dripping water conforming to EN/IEC 60068-2-3
Protection type: Phase failure: line
Product or component type: Soft starter
Product destination: Asynchronous motors
Product specific application: Heavy duty industry and pumps
Power supply voltage: 230...415 V - 15...10 %
power dissipation in W: 252 W for severe applications
Utilisation category: AC-53A
Type of start: Start with torque control (current limited to 5 In)
Icl nominal current: 110 A for connection in the motor supply line for standard applications
Assembly style: With heat sink
Function available: External bypass (optional)
Power supply voltage limits: 195456 V
Power supply frequency: 50...60 Hz - 5...5 %
Power supply frequency limits: 47.5...63 Hz
Device connection: To the motor delta terminals
Factory setting current: 100 A
Control circuit consumption: 30 W
Discrete output number: 2
Discrete output type: (LO1) logic output 0 V common configurable
Minimum switching current: 10 mA at 6 V DC for relay outputs

Maximum switching current: Logic output 0.2 A at 30 V DC
Discrete input number: 5
Discrete input type: PTC, 750 Ohm at 25 C
Discrete input voltage: 24 V <= 30 V
Discrete input logic: Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA
Starting current: 0.4...1.3 Icl adjustable
Analogue output type: Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm
Communication port protocol: Modbus
Connector type: 1 RJ45
Communication data link: Serial
Physical interface: RS485 multidrop
Transmission rate: 4800, 9600 or 19200 bps
Max nodes number: 31
Marking: CE
Type of cooling: Forced convection
Operating position: Vertical +/- 10 degree
Net weight: 8.3 kg
Motor power range AC-3: 1525 kW at 200240 V 3 phases
Motor starter type: Soft starter
Electromagnetic compatibility: Conducted and radiated emissions level A conforming to IEC 60947-4-2
Product certifications: C-Tick
Noise level: 58 dB
Pollution degree: Level 3 conforming to IEC 60664-1
Ambient air temperature for operation: 4060 C (with current derating of 2 % per C)
Ambient air temperature for storage: -2570 C
Sustainable offer status: Green Premium product
REACh Regulation: REACh Declaration
EU RoHS Directive: Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free: Yes
RoHS exemption information: Yes
China RoHS Regulation: China RoHS declaration
Environmental Disclosure: Product Environmental Profile
Circularity Profile: End of Life Information
WEEE: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
