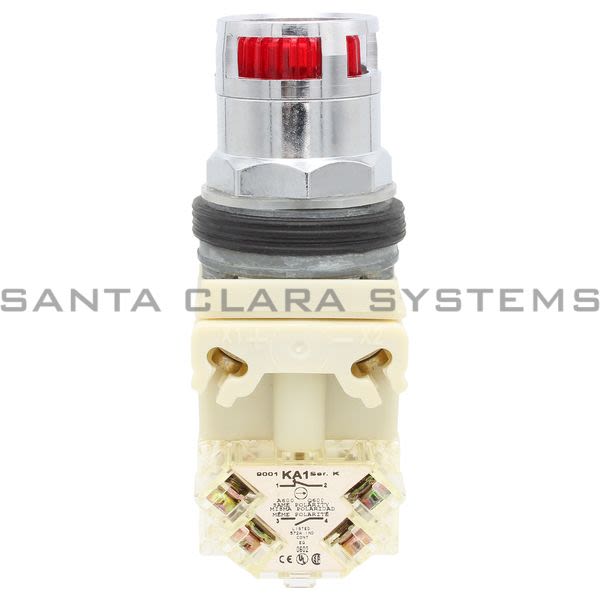

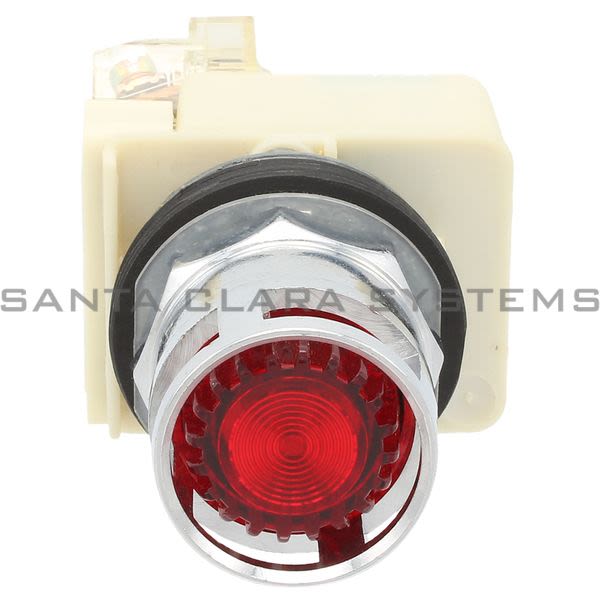

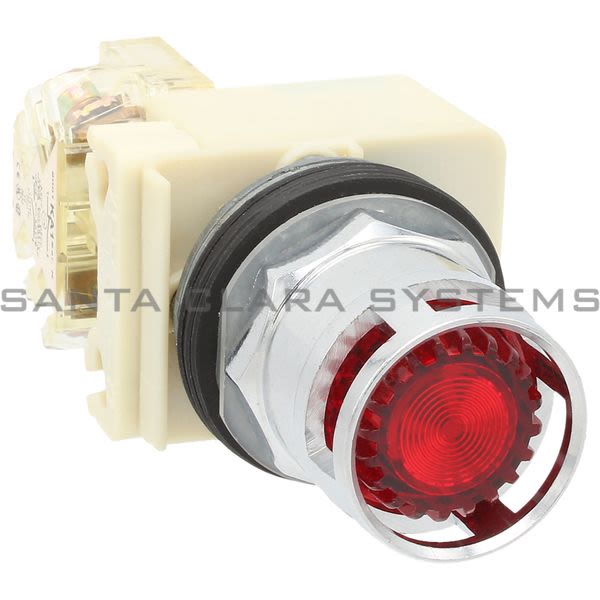

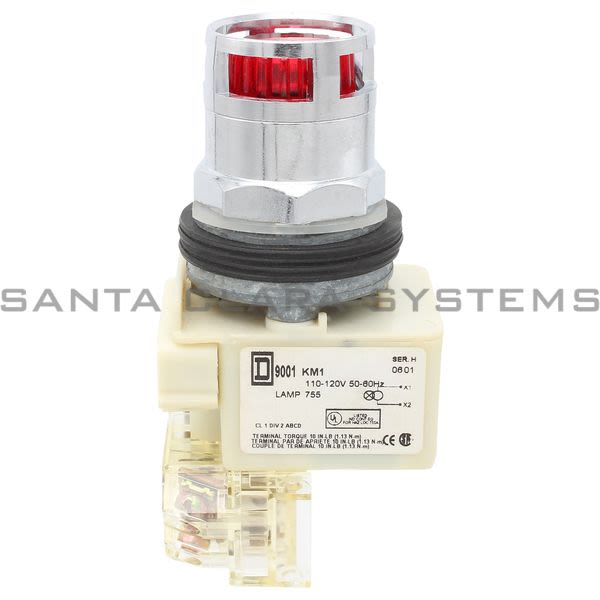

9001-K3L1RH13

Square D - Pushbutton

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Square D Authorized Distributor.

Description: Pushbutton
Bezel material: Chromium plated metal
Product or component type: Illuminated push-button
Device short name: 9001K
Type of operator: Spring return
Operator profile: Red flush unmarked
Operator additional information: Extended metallic guard
Mounting diameter: 30 mm
Shape of signaling unit head: Octagonal
Light source: Incandescent
Bulb base: BA 9s
Light block supply: Via integral transformer 6 V

[Us] rated supply voltage: 110...120 V AC
Contacts type and composition: 1 C/O
Connections - terminals: Screw clamp terminals (1 x 0.22...2 x 1.5 mm) conforming to IEC 60947-1
Tightening torque: 0.8 N.m conforming to IEC 60947-1
Shape of screw head: Cross slotted
Mechanical durability: 5000000 cycles
Operating position: Any position
[Ie] rated operational current: 0.55 A at 125 V (DC-13) A600-Q600 conforming to NEMA
[Ui] rated insulation voltage: 250 V (degree of pollution: 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage: 2.5 kV conforming to IEC 60947-1
Contacts material: Silver alloy contacts
Contact operation: Standard
