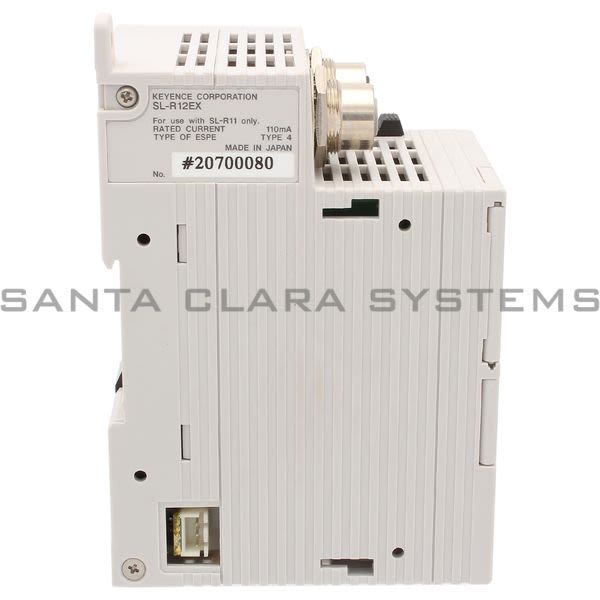

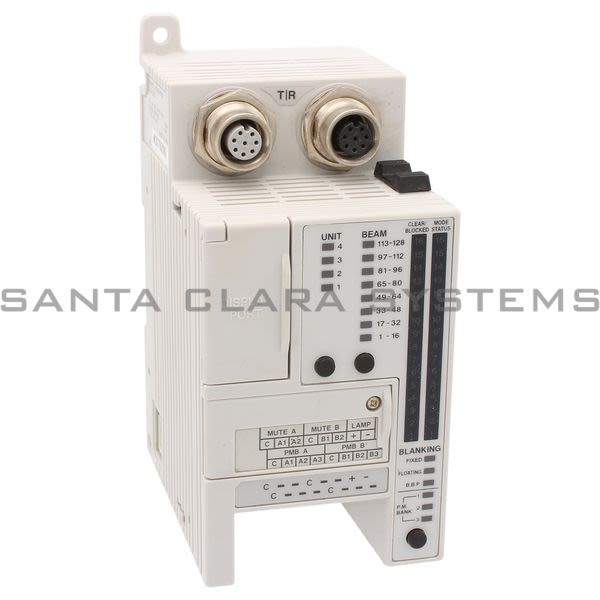

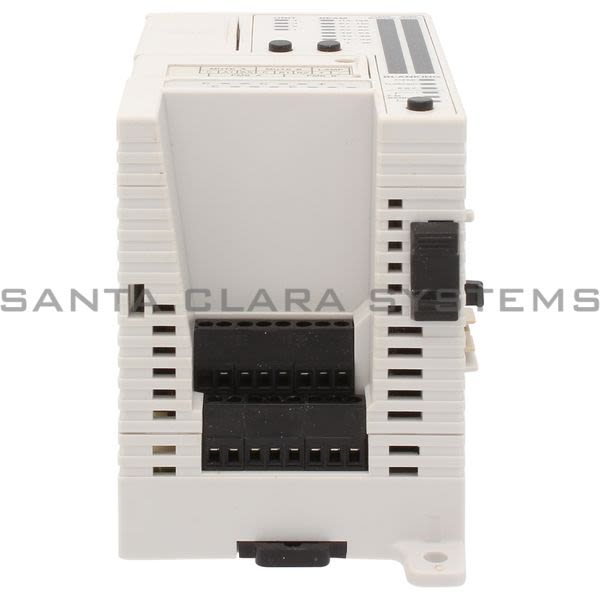

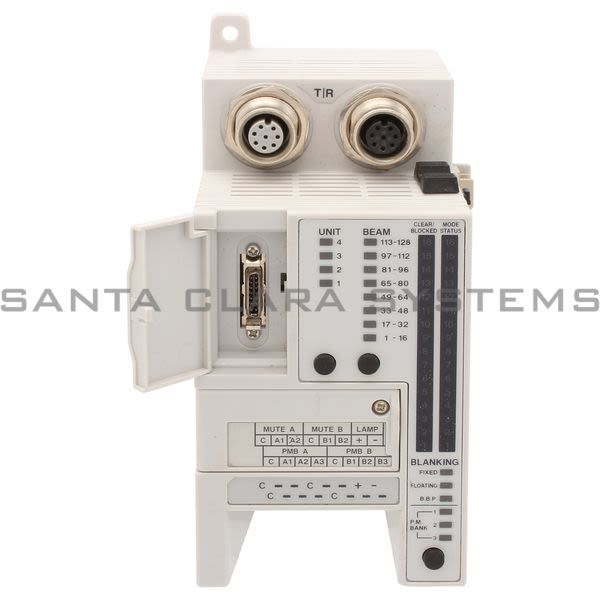

SL-R12EX

Keyence - Intelligent Extension Unit

Current response time:

By 5AM PT on Tuesday

Emergency?

Description: Intelligent Extension Unit
Weight: Approx 300 g
Material: Polycarbonate
Power supply: Supplied by SL-R11 or SL-U2
Input - Muting input - Maximum input voltage: 26.4 VDC
Input - Muting input - Input rating: 24 VDC 2.3 mA
Input - Muting input - Threshold voltage (ON): 19 V
Input - Muting input - Threshold current (OFF): 0.5 mA
Input - Muting input - Common ground: A common for A1 and A2, a common for B1 and B2
Input - Bank selection input - Maximum input voltage: 26.4 VDC
Input - Bank selection input - Input rating: 24 VDC 1.6 mA

Input - Bank selection input - Threshold voltage (ON): 19 V
Input - Bank selection input - Threshold current (OFF): 0.5 mA
Input - Bank selection input - Common ground: A common for A1, A2 and A3, a common for B1, B2 and B3
Input - Bank selection input - Allowance for 2 inputs timing gap: 200 ms max.
Output for muting lamp: 24 VDC 15 mA to 300 mA
Rating - Current consumption.: 110 mA max. (including 24 VDC, SL-R12D)
Environmental resistance - Enclosure rating: IP20 (IEC60529) Mount in a control panels at least IP54
Environmental resistance - Operating temperature range: -10 to +55C 14 to 131F, No freezing
Environmental resistance - Operating ambient humidity: 35 to 85%RH (no condensation)
Environmental resistance - Vibration: 10 to 55 Hz, double amplitude 0.7 mm 0.03", 20 sweeps each in X, Y and Z directions
Environmental resistance - Shock resistance: 100 m/s2 (Approx 10G) 16 ms pulse, in X, Y, Z directions 1000 times each axis
