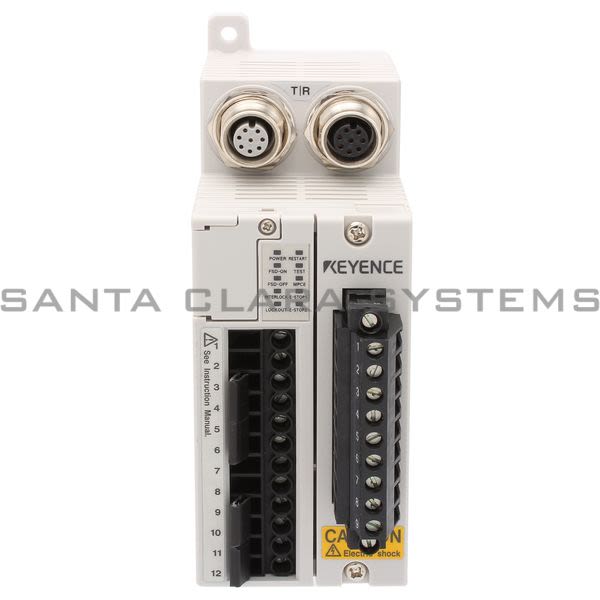

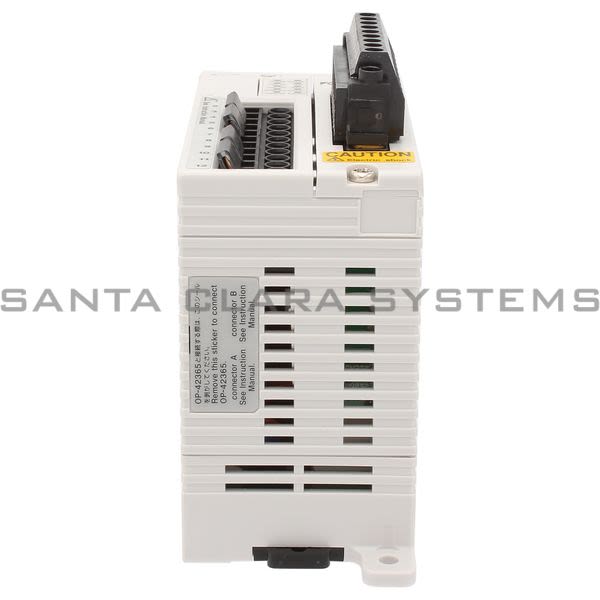

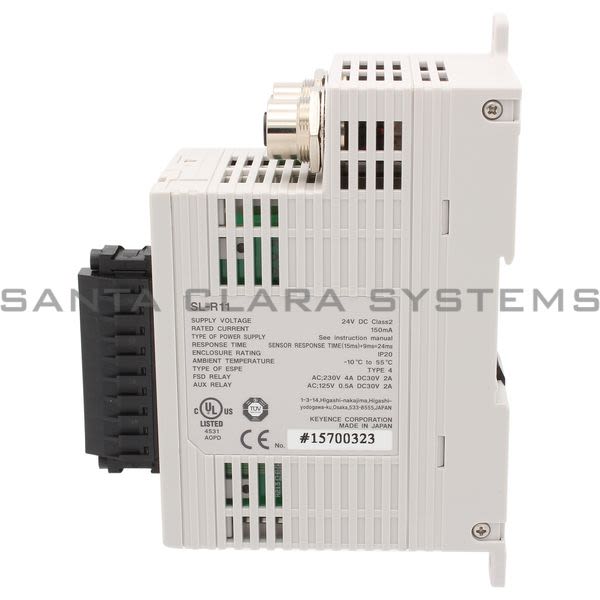

- Description: Safety Relay Unit
- Weight: Approx 380 g
- Footnotes: *1 The OFF - ON return time is 150 ms. *2 Evaluated in combination with the SL-C Series.
- Material: Polycarbonate
- Response speed FSD1, 2 AUX: 24 ms (including sensor response time)*1
- Safety light curtain: SL-C Series
- FSD 1,2: 230 VAC 4 A 30 VDC 2 A (resistive load) 230 VAC 2 A (cos = 0.3) (inductive load) 30 VDC 1 A (cos = 0.3) (inductive load)
- SL-R11 output - Lifespan: Mechanical life: 10 million times min. Electrical life: 100000 times min.
- Response speed when E-STOP is input: 20 ms
- AUX: 125 VAC 0.5 A 30 VDC 2 A (resistive load) 125 VAC 0.25 A (cos = 0.3) (inductive load) 30 VDC 1 A (cos = 0.3) (inductive load)
- Approved standards - EMC - EMS: UL61496-1*2
- Approved standards - EMC - EMI: FCC Part 15 Class A*2
- Approved standards - Safety: UL61496-1 (type 4 ESPE) UL61496-2 (type 4 AOPD) UL508*2
- Rating - Power voltage: 24 VDC 10% ripple (P-P) 10% max.
- Rating - Current consumption.: 150 mA max. (for SL-R11 only)
- Environmental resistance - Enclosure rating: IP20 (IEC60529) (Install in control panels which is equal to or greater than IP54)
- Environmental resistance - Ambient temperature: -10 to +55C 14 to 131F, No freezing
- Environmental resistance - Ambient temperature for storage: -10 to +60C 14 to 140F, No freezing
- Environmental resistance - Relative humidity: 35 to 85%RH (no condensation)
- Environmental resistance - Storage relative humidity: 35 to 95%RH (no condensation)
- Environmental resistance - Vibration: 10 to 55 Hz double amplitude 0.7 mm 0.03", 20 sweeps each for X, Y, Z directions
- Environmental resistance - Shock resistance: 100 m/s2 (Approx 10G) 16 ms pulse, in X, Y, Z directions 1000 times each axis
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SL-R11 . Santa Clara Systems carries 2,102 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
