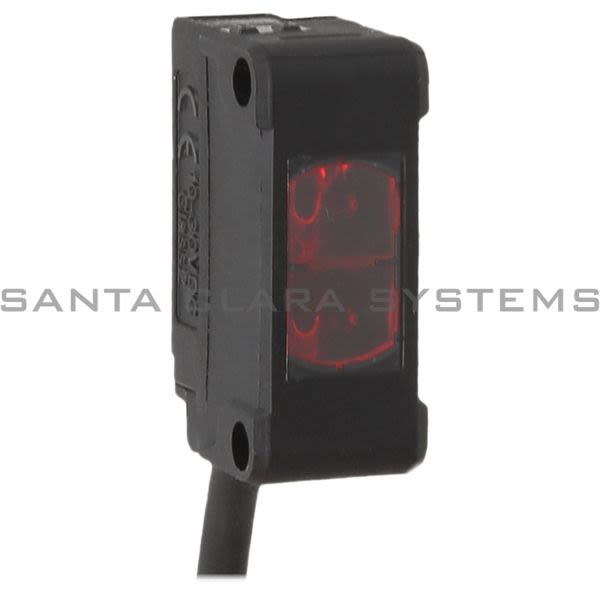

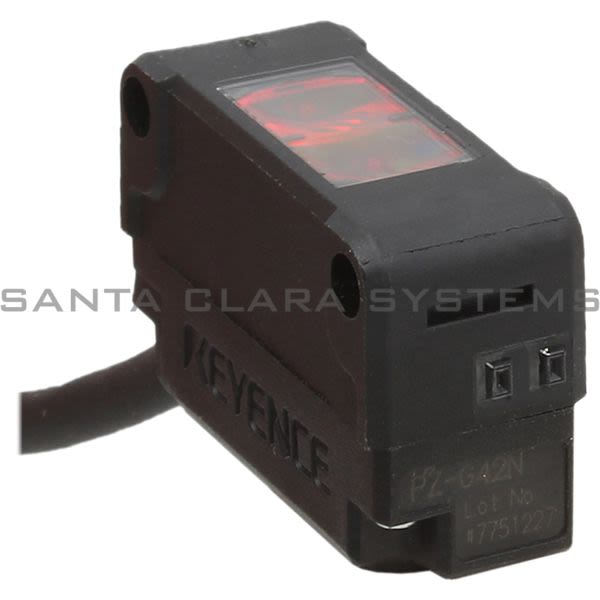

PZ-G42N

Keyence - Photoelectric Sensor

Current response time:

By 5AM PT on Tuesday

Emergency?

Description: Photoelectric Sensor
Weight: Rectangular cable models: Approx. 60 g (Thrubeam-models transmitter: Approx. 50 g)
Footnotes: *1 Cable sold separately for connector models
Type: Diffuse Reflective
Response time: 500 ?s
Output: NPN
Light source: Red LED
Accessories: Instruction manual
Sensitivity adjustment: 1-turn trimmer (230)
Tightening torque: Rectangular models (Mounting hole part): 0.5 N m max.
Shape: Rectangular

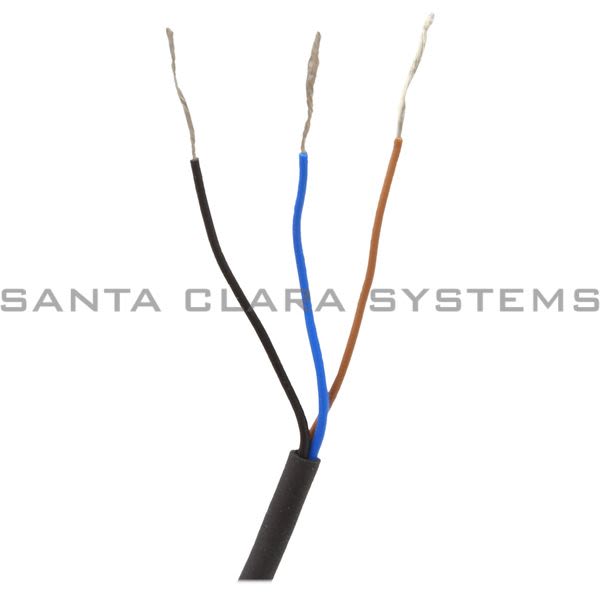

Cable connection: Cable (2 m 78.74") *1
Detecting distance: 300 mm 11.81" (When detecting 10 x 10 cm 3.94" x 3.94" white paper)
Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
Indicators (LED): Output: Orange LED, Stable operation: Green LED
Control output: Open collector output, 30 V max., 100 mA max., Residual voltage: 1 V max.

Protection circuit: Reversed polarity, overcurrent protection, surge absorber
Interference suppression: Up to 2 units (with the automatic different frequency function)
Rating - Power voltage: 10 to 30 VDC including Ripple 10% (P-P), Class 2
Rating - Current consumption.: 34 mA max.
Environmental resistance - Enclosure rating: IEC: IP67/NEMA: 4A, 6, 12/DIN: IP69K
Environmental resistance - Operating ambient luminance: Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max.
Environmental resistance - Operating temperature range: -20 to +55C -4 to 131F, No freezing
Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude in the X, Y, and Z directions, 2 hours respectively
Environmental resistance - Shock resistance: 1,000 m/s2 6 times in the X and Y directions
Material - Housing, M18 nut (threaded models only): Glass-fiber reinforced PBT
Material - Lens cover: Polyarylate (PAR)
Material - Trimmer: Glass-fiber reinforced polyamide (PA)
Material - Case connection: Screw: Nickel-plated iron and zinc, packing: nitrile butadiene rubber (NBR)
Material - Cable (cable models only): Polyvinyl chloride (PVC)
