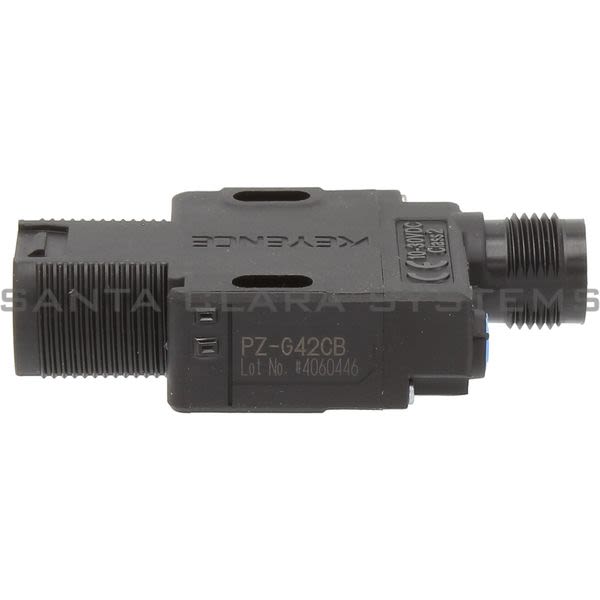

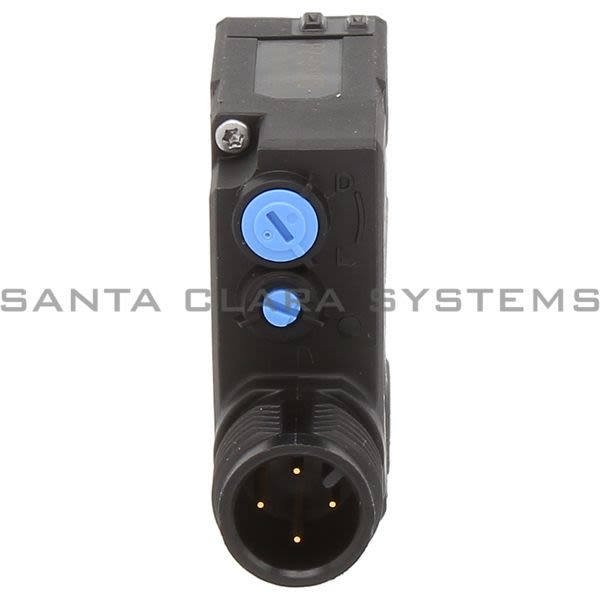

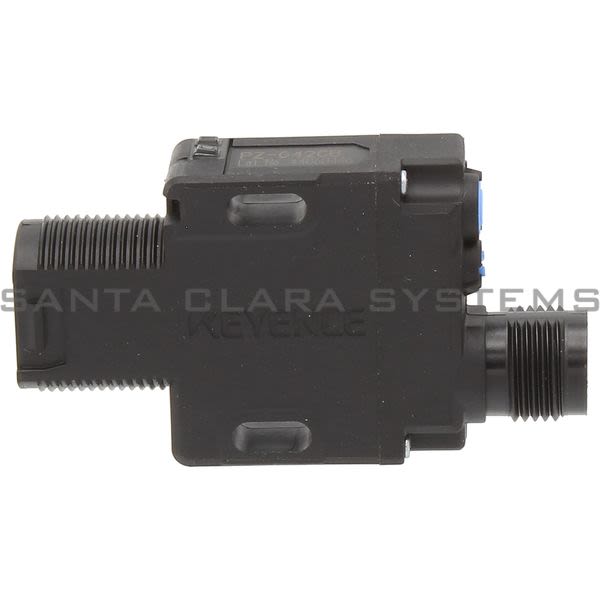

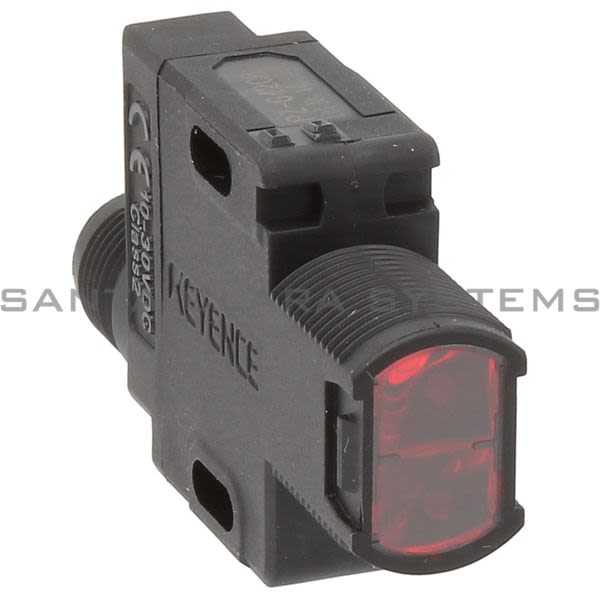

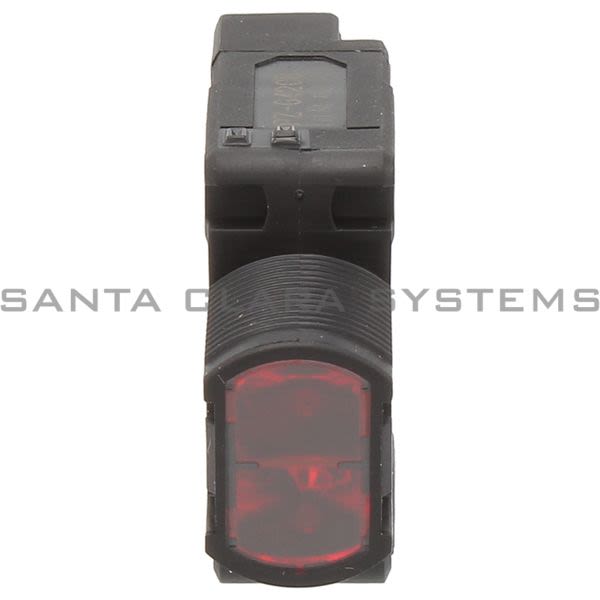

- Description: Photoelectric Sensor
- Weight: Threaded connector models: Approx. 15 g
- Footnotes: *1 Cable sold separately for connector models
- Type: Diffuse Reflective
- Response time: 500 ?s
- Output: Bipolar (NPN+PNP)
- Light source: Red LED
- Accessories: Instruction manual, M18 nut x 1 piece (threaded models only)
- Sensitivity adjustment: 1-turn trimmer (230)
- Tightening torque: Threaded models (front M18 part): 1.0 N m max., (side slotted hole part): 0.5 N m max.
- Shape: Threaded
- Cable connection: M12 connector *1
- Detecting distance: 300 mm 11.81" (When detecting 10 x 10 cm 3.94" x 3.94" white paper)
- Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
- Indicators (LED): Output: Orange LED, Stable operation: Green LED
- Control output: Open collector output, 30 V max., 100 mA max., Residual voltage: 1 V max.
- Protection circuit: Reversed polarity, overcurrent protection, surge absorber
- Interference suppression: Up to 2 units (with the automatic different frequency function)
- Rating - Power voltage: 10 to 30 VDC including Ripple 10% (P-P), Class 2
- Rating - Current consumption.: 34 mA max.
- Environmental resistance - Enclosure rating: IEC: IP67/NEMA: 4A, 6, 12/DIN: IP69K
- Environmental resistance - Operating ambient luminance: Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max.
- Environmental resistance - Operating temperature range: -20 to +55C -4 to 131F, No freezing
- Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
- Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude in the X, Y, and Z directions, 2 hours respectively
- Environmental resistance - Shock resistance: 1,000 m/s2 6 times in the X and Y directions
- Material - Housing, M18 nut (threaded models only): Glass-fiber reinforced PBT
- Material - Lens cover: Polyarylate (PAR)
- Material - Trimmer: Glass-fiber reinforced polyamide (PA)
- Material - Case connection: Screw: Nickel-plated iron and zinc, packing: nitrile butadiene rubber (NBR)
- Material - Cable (cable models only): Polyvinyl chloride (PVC)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PZ-G42CB . Santa Clara Systems carries 2,103 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
