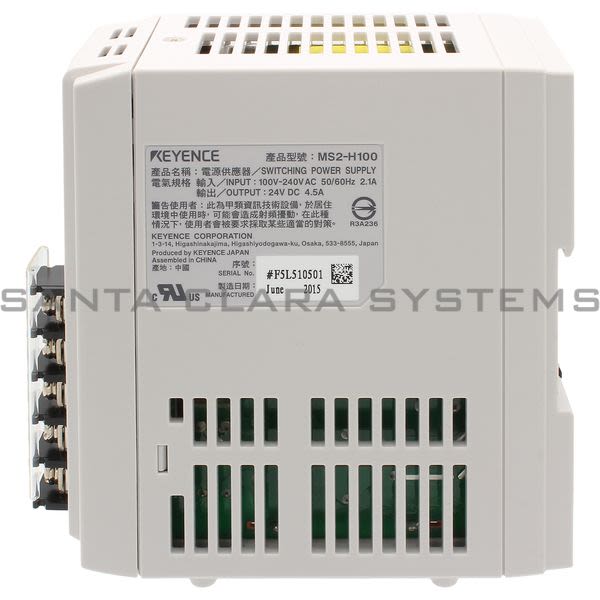

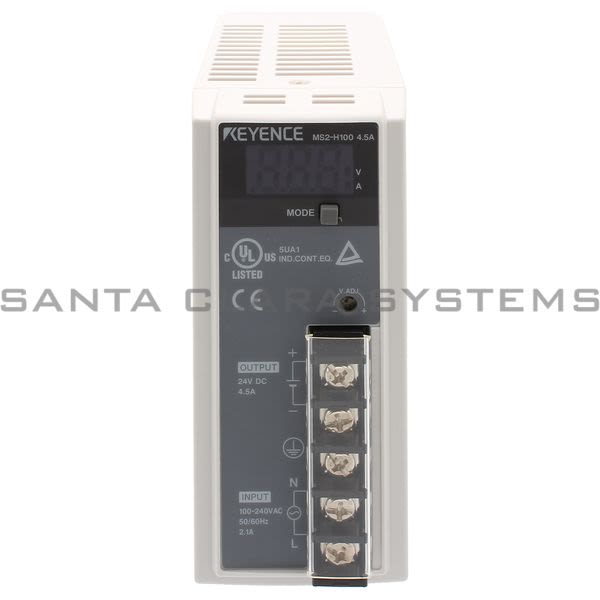

MS2-H100

Keyence - Power Supply

Current response time:

By 5AM PT on Monday

Emergency?

Description: Power Supply
Weight: Approx 490 g
Footnotes: *1 The rated input voltage and rated frequency when applying for safety standards are 100 to 240 VAC, 50/60 Hz. *2 To return, turn OFF the input power supply and after leaving it off for 1 minute or more, plug in the input power supply again. The E/F Series is a Zener diode clamp type. It will not restart after the protection circuit operation. *3 For the MS2-H100, this is applicable only when the load ratio is 70% or less. *4 The applicable standards do not apply for parallel and serial operations.
Input conditions - Input voltage: 85 to 264 VAC, 110 to 370 VDC*1
Input conditions - Frequency: 47 to 63 Hz, DC*1
Inputconditions - Input current (100/200 VAC): 2.1/1.3A or less
Inputconditions - Efficiency (100/200 VAC): 82, 85% typ. (at 100% load)
Inputconditions - Leakage current (100/200 VAC): 0.4, 0.75 mA or less (at 100% load)
Inputconditions - Rush current (100/200 VAC): 25, 50 A or less (at 100% load with a +25C 77F cold start)
Output characteristics - Rated voltage: 24V
Output characteristics - Variable voltage range: 5% (with V.ADJ)
Output characteristics - Rated current: 4.5A
Output characteristics - Ripple/noise voltage: 180mV (p-p) or less
Output characteristics - Input fluctuation: 0.4% or less
Output characteristics - Load fluctuation: 1.5% or less
Output characteristics - Temperature fluctuation: 0.02%/C or less
Output characteristics - Startup time: 500 ms or less (when the ambient usage temperature is between 0 and +55C 32 and 131F with rated I/O conditions)
Output characteristics - Output holding time: 20 ms or more (when the ambient usage temperature is +25C 77F and with rated I/O conditions)

Protection - Overcurrent protection: Constant current drop method, automatic recovery, 5.3 A or more
Protection - Overvoltage protection: Activates at 26.4 V or more, voltage interruption method, recovers when input is applied again*2
Display - Display power: 3-digit 7-segment LED (character height: 10 mm 0.39")
Display - Power off memory time: Approx. 10 years (at +20C 68F)
Display - Display resolution: 0.1A/0.4V /1%
Applicable standards - Safety standards: UL: UL508, UL60950-1; C-UL: CSA C22.2 number 14-M95, CSA C22.2 number 60950-1-03; EN: EN60950-1, EN50178; IEC: IEC60950-1
Applicable standards - EMC standard: FCC Part 15 B Class A, EN55011 Class A, EN61000-6-2
Applicable standards - Limits for harmonic current emissions: EN61000-3-2*3
Other - Parallel operation: Possible (requires OP-42207)*4
Other - Series operation: Possible (requires external diode)*4
Other - Cooling method: Natural air cooling
Environmental resistance - Operating temperature range: -10 to 55C 14 to 131F, No freezing (see the derating characteristics)
Environmental resistance - Operating ambient humidity: 25 to 85% RH (No condensation)
Environmental resistance - Ambient temperature for storage: -20 to +70C -4 to 158F(no freezing)
Environmental resistance - Withstand voltage: 3.0 kVAC 50/60 Hz 1 min (across input and output terminals), 2.0 kVAC 50/60 Hz 1min (across input terminals and PE terminal), 500 VAC 50/60 Hz 1min (across output terminals and PE terminal)
Environmental resistance - Shock resistance: Peak acceleration: 300 m/s2, 2 times in each of the X, Y, and Z directions
Environmental resistance - Vibration: 10 to 57 Hz: 0.3 mm 0.01" double amplitude; 57 to 500 Hz: 19.6 m/s2 (2 G), cycle: 5.5 minutes; for 2 hours in each of the X, Y, and Z directions
Environmental resistance - Insulation resistance: 100 M? or more at 500 VDC (between input and output, between input and FG, and between output and FG)
