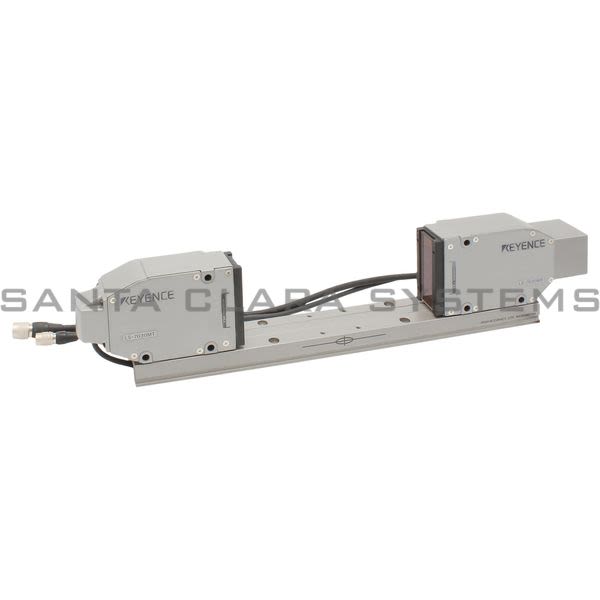

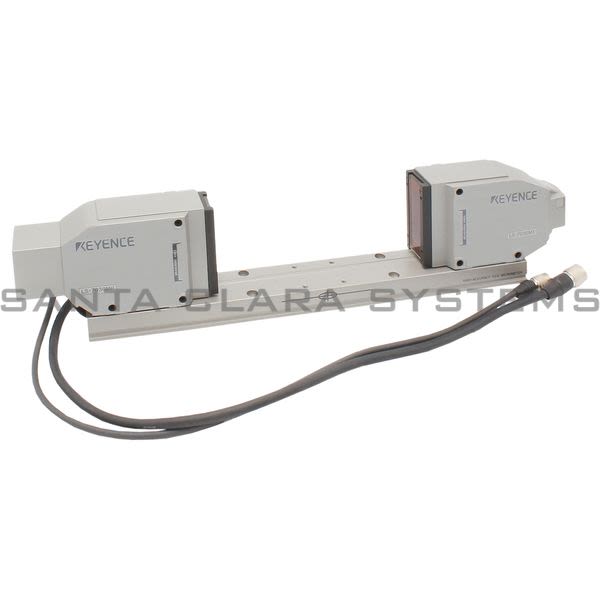

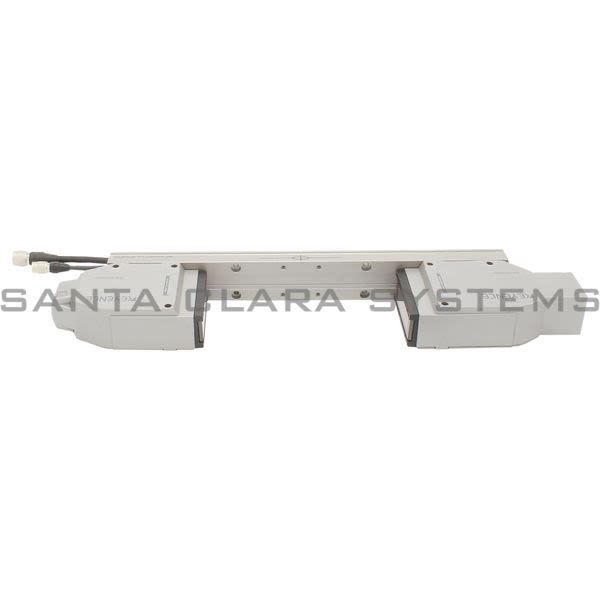

- Description: Micrometer
- Weight: Transmitter: Approx.420 g, Receiver: Approx. 570 g, Base: Approx. 430 g
- Footnotes: *1 The error when a moving rod 10 mm 0.39" in diameter is measured in the measuring area of 10 x 20 mm 0.39" x 0.79". *2 The value of2? when the outer diameter of a rod 10 mm 0.39" in diameter is measured at the center of the measuring area while the number of averaging measurements is set to 512. *3 1200 samples/sec. when the mutual interference prevention function is used. *4 The connector section is excluded.
- Type: Wide measurement range
- Light source: GaN green LED
- Monitor camera: Provided
- Classification: Measurement part with monitor function
- Measuring range: 0.3 to 30 mm 0.01" to 1.18"
- Minimum detectable object: 0.3 mm 0.01"
- Transmitter/receiver distance: 160 40 mm 6.30" 1.57"
- CCD scanning range: Approx. 33 mm 1.30"
- Measurement accuracy: 2 m 0.000079" *1
- Repeatability: 0.15 m 0.000006" *2
- No. of samples: 2,400 samples/sec.*3
- Monitor function: Provided
- Environmental resistance - Enclosure rating: IP64*4
- Environmental resistance - Operating temperature range: 0 to +50C 32 to 122F
- Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LS-7030M . Santa Clara Systems carries 2,107 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
