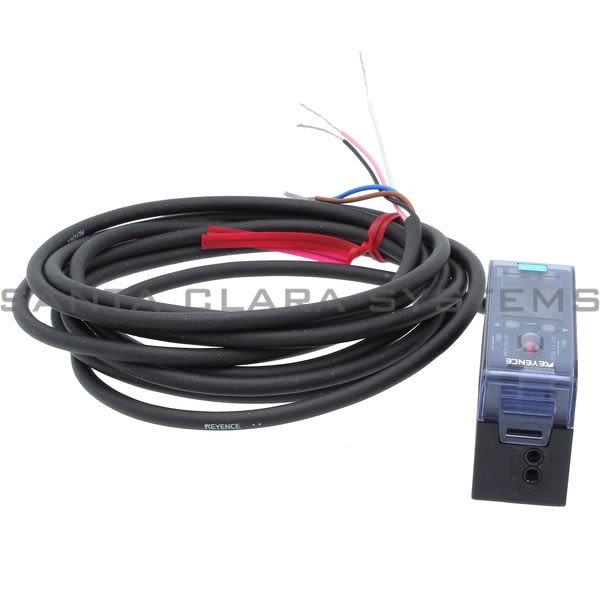

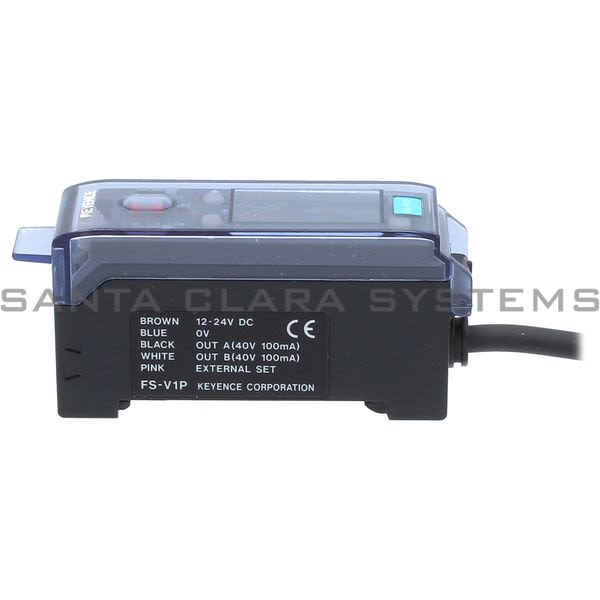

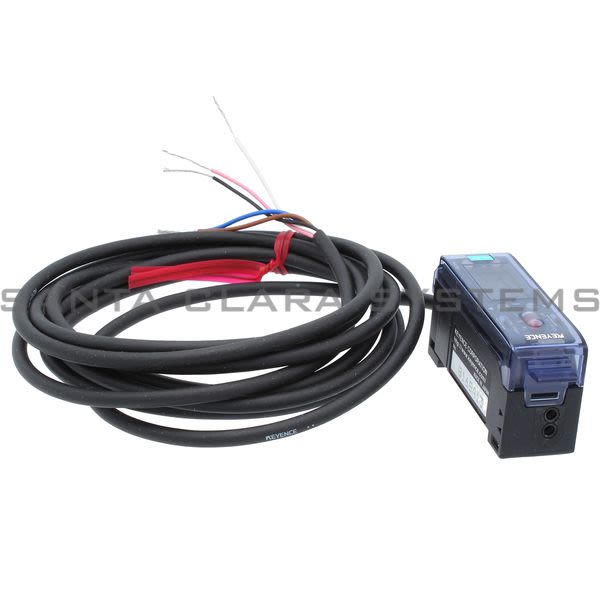

FS-V1P

Keyence - Photoelectric Amplifier Fiber Optic

Current response time:

7 Minutes 18 Seconds

Description: Photoelectric Amplifier Fiber Optic
Weight: Approx. 80 g
Footnotes: *1 If more than one unit is used together, the ambient temperature varies with the conditions below. Mount the units on the DIN rail with mounting brackets and check that the output current is 20 mA or less. 3 to 10 Units: -10 to 50C 14 to 122F, 11 to 16 Units: -10 to 45C 14 to 113F *2 Neither the FS-V12 nor the FS-V10 can be used as a standalone unit. *3 When several units are connected, the ambient temperature requirement varies depending on the total number of units connected. When 3 to 10 units: -10 to +50C 14 to 122F When 11 to 16 units: -10 to +45C 14 to 113F When connecting several units, be sure to mount the units to a metallic DIN rail. Make sure that the output current does not exceed 20 mA.
Type: Main unit
Response time: 250 ?s
Output: PNP
Light source: Red LED
Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
Indicator lamp: Display indicator (Two): Red LED Received light display: LCD (Two color display: Red and green) Calibration indicator: Orange LED
Timer function: ON-delay: 40 ms/OFF-delay: 40 ms/Timer OFF (switch-selectable)
Control output: PNP open-collector 100 mA max. (24 VDC max.), Residual voltage: 1 V max. The FS-V1P is equipped with two outputs.

Protection circuit: Reversed polarity protection, over-current protection, surge absorber
Unit expansion: Up to 16 expansion units can be connected (a total of 17 units).*1
Mutual interference suppression: 4
Rating - Power voltage: 12 to 24 VDC (10%), ripple (p-p): 10% max.,Class 2*2
Rating - Current consumption.: 50 mA or less
Environmental resistance - Operating ambient luminance: Incandescent lamp: 10,000 lux max., Sunlight: 20,000 lux max.
Environmental resistance - Operating temperature range: -10 to +55C 14 to 131F, No freezing*3
Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
Environmental resistance - Vibration: 10 to 55 Hz, double amplitude: 1.5 mm 0.06", 2 hours each in the X, Y and Z axis
Environmental resistance - Shock resistance: 500 m/s2 in X, Y, and Z directions, 3 times respectively
Case material: Polycarbonate
