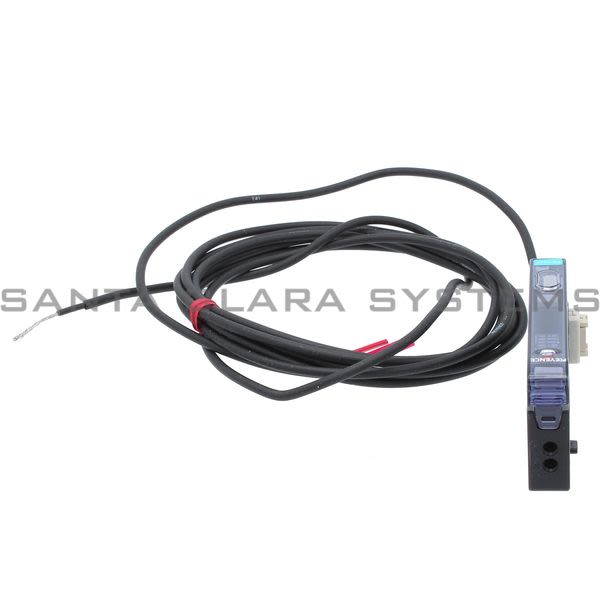

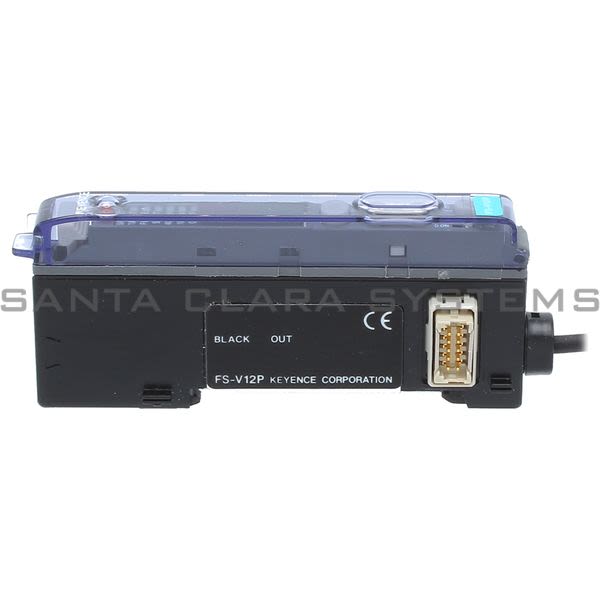

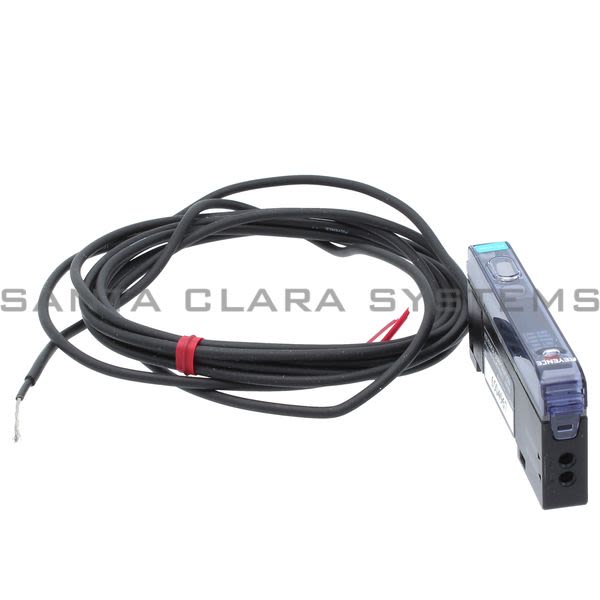

FS-V12P

Keyence - Sensor

Current response time:

7 Minutes 58 Seconds

Description: Sensor
Weight: Approx. 45 g

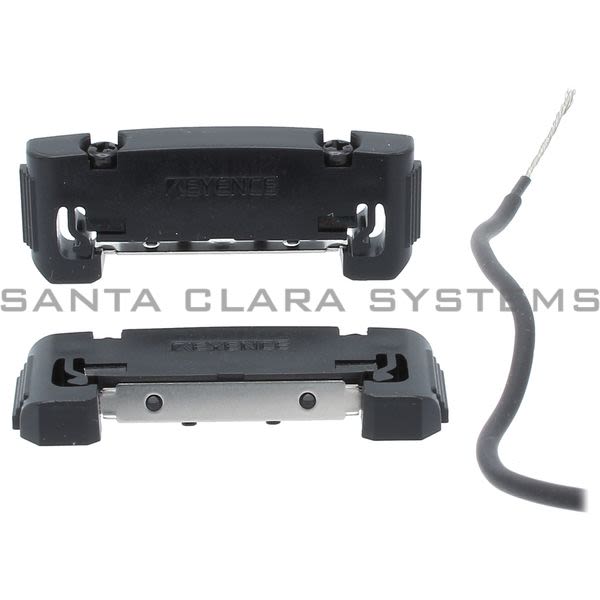

Footnotes: *1 If more than one unit is used together, the ambient temperature varies with the conditions below. Mount the units on the DIN rail with mounting brackets and check that the output current is 20 mA or less. 3 to 10 Units: -10 to 50C 14 to 122F, 11 to 16 Units: -10 to 45C 14 to 113F *2 Neither the FS-V12 nor the FS-V10 can be used as a standalone unit.
Type: 1-line expansion unit
Response time: 250 ?s (FINE)/500 ?s (TURBO)/1 ms (SUPER TURBO)
Output: PNP
Light source: Red LED
Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
Indicator lamp: Display indicator: Red LED Digital LED monitor: Seven segments, four digits, red LED Bar LED monitor: One orange LED and six green LEDs
Timer function: ON-delay: 40 ms /OFF-delay: 10 ms /Timer OFF (switch-selectable)
Control output: PNP open-collector 100 mA max. (24 VDC max.), Residual voltage: 1 V max.

Protection circuit: Reversed polarity protection, over-current protection, surge absorber
Unit expansion: Up to 16 expansion units can be connected (a total of 17 units).*1
Mutual interference suppression: FINE : 4, TURBO/SUPER: 8
Rating - Power voltage: 12 to 24 VDC (10%), ripple (p-p): 10% max.,Class 2*2
Rating - Current consumption.: 50 mA max.
Environmental resistance - Operating ambient luminance: Incandescent lamp: 10000 lux max., Sunlight: 20000 lux max.
Environmental resistance - Operating temperature range: -10 to 55C 14 to 131F, No freezing
Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
Environmental resistance - Vibration: 10 to 55 Hz, double amplitude: 1.5 mm 0.06", 2 hours each in the X, Y and Z axis
Environmental resistance - Shock resistance: 500 m/s2 in X, Y, and Z directions, 3 times respectively
Case material: Polycarbonate
