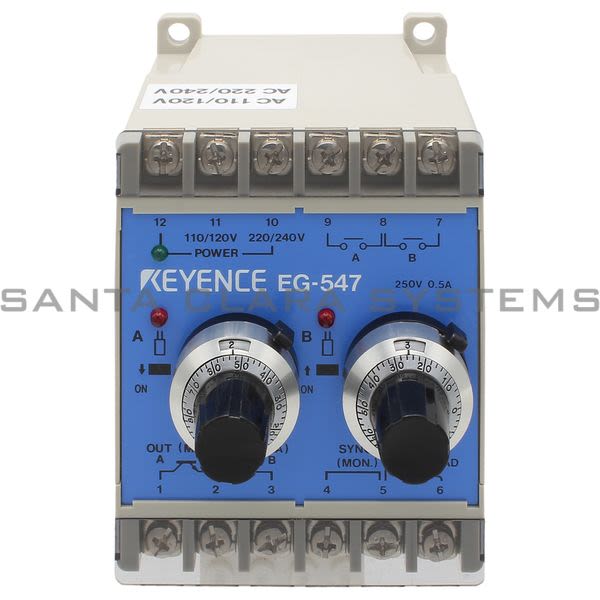

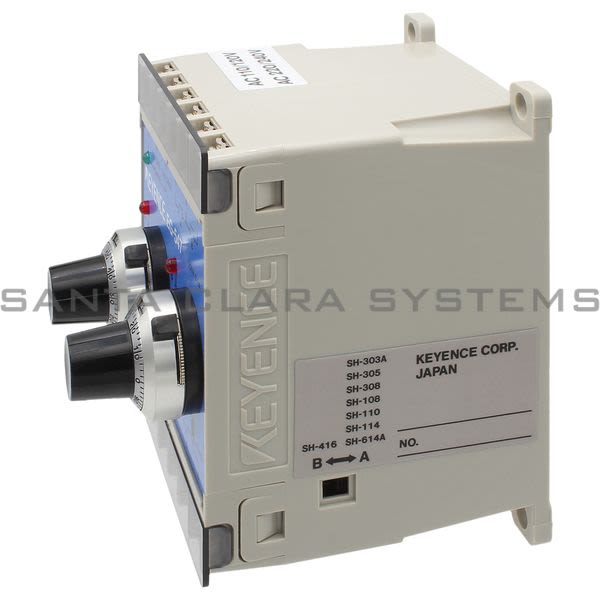

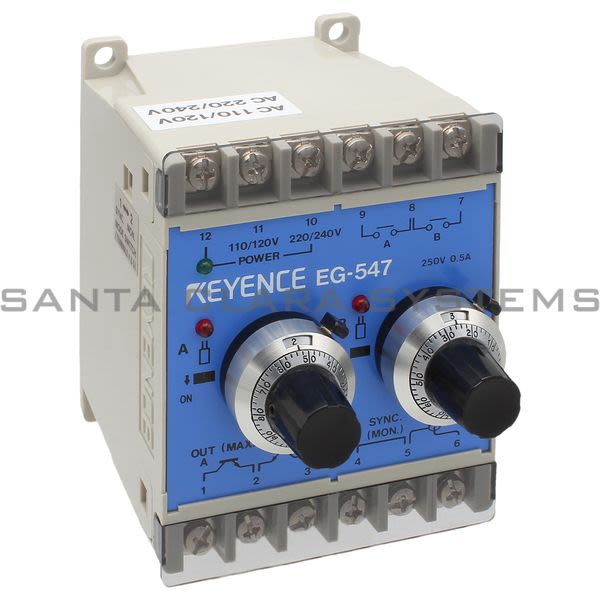

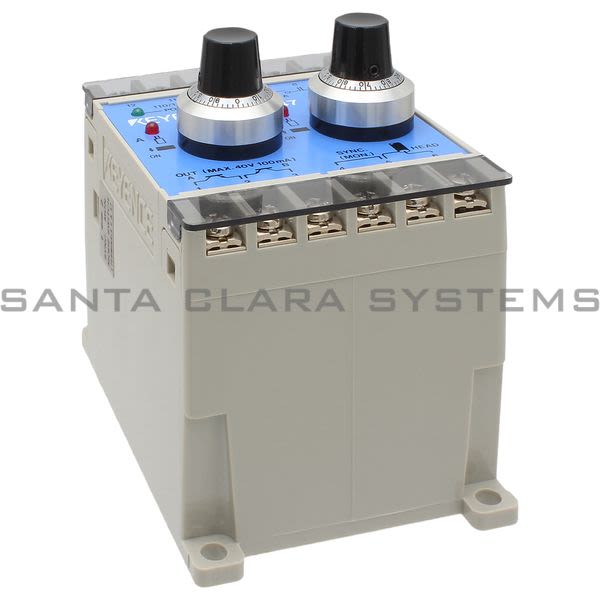

EG-547

Keyence - Precision Positioning Sensor

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: Precision Positioning Sensor
Weight: Approx 390 g
Footnotes: *1 The EG-547(W) cannot be used in combination with SH-422, 430, 440, 290, 809, 816 and 822. *2 Please contact KEYENCE for information on products that comply with the EMC directive. *3 Above values obtained when the detecting distance is set at 50% of the maximum stable detecting distance.
Type: AC, tolerance setting*2
Sensitivity adjustment: 10-turn potentiometer dial
Function - Operation mode: External synchronization, analog voltage switch-selectable
Function - Operation mode - External synchronization: Equipment (both without contacts and with contacts)
Output - Control output 1 (NPN): 100 mA max. (40 V max.) Residual voltage? 1 V max.

Output - Control output 2: DPST (N.O.), 250 VAC, 0.5 A max. (resistive load)
Output - Response time (Relay contact): 1 ms
Temperature characteristics: 0.08%/C*3
Rating - Power voltage: 110/120/220/240 VAC 10%, 50/60 Hz
Rating - Power consumption: 5 VA max.
Environmental resistance - Operating temperature range: 0 to 50C 32 to 122F
Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude in X, Y, and Z directions, 2 hours respectively
