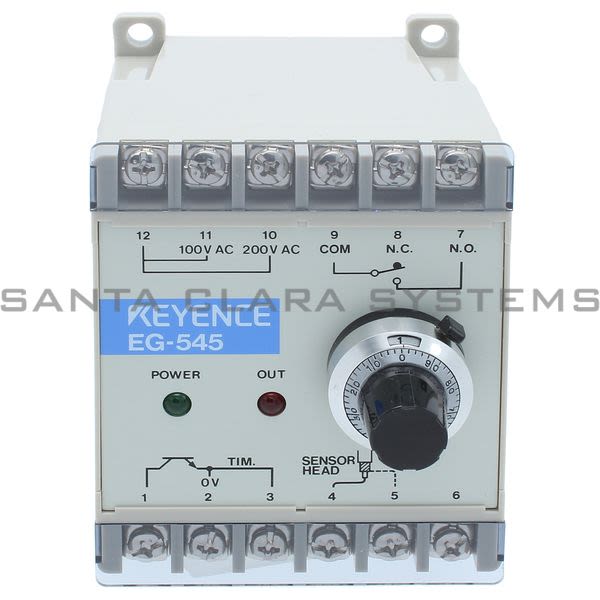

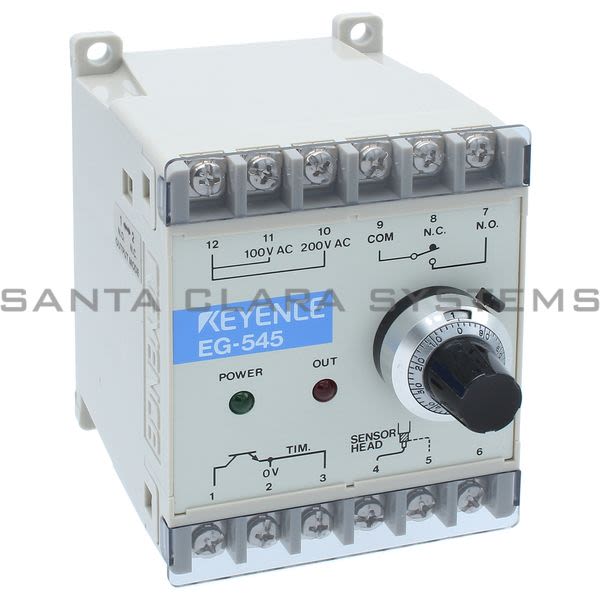

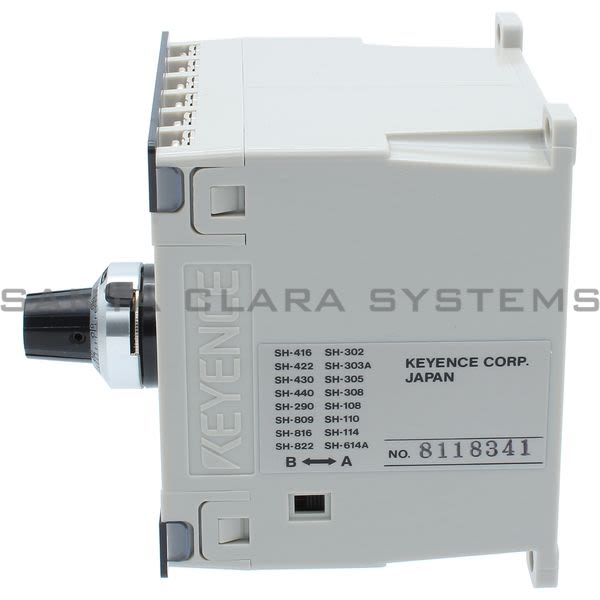

EG-545

Keyence - Amplifier Unit

Current response time:

14 Minutes 57 Seconds

Description: Amplifier Unit
Weight: Approx 350 g
Footnotes: *1 This product does not comply with EMC directives. *2 Above values obtained when the detecting distance is set at 50% of the maximum stable detecting distance.
Type: AC adj-dial
Sensitivity adjustment: 10-turn potentiometer dial

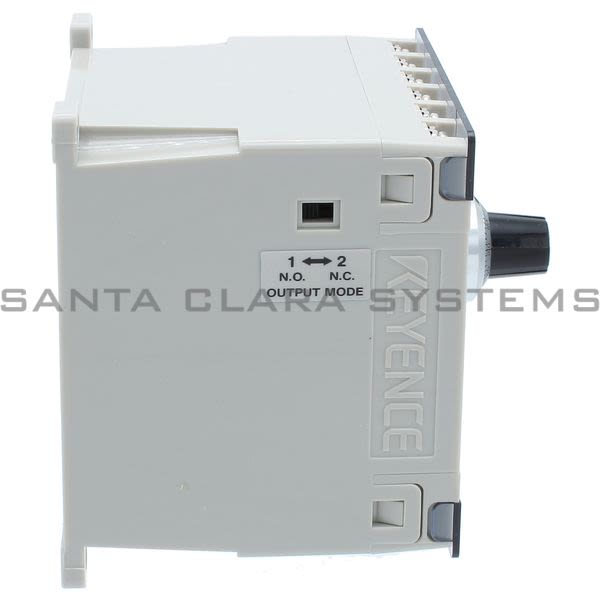

Function - Operation mode: N.O./N.C. switch-selectable (contact output only)
Function - Operation mode - External synchronization: Equipment (contact output only)
Output - Control output 1 (NPN): 100 mA max. (40 V max.) Residual voltage? 1 V max.
Output - Control output 2: SPDT, 250 VAC, 2 A max. (resistive load)

Output - Response time (Relay contact): 1 ms
OFF-delay time: 65 ms (contact output only)
Temperature characteristics: 0.08%/C*2
Rating - Power voltage: 110/120/220/240 VAC 10%, 50/60 Hz
Rating - Power consumption: 5 VA max.
Environmental resistance - Operating temperature range: 0 to 50C 32 to 122F
Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude in X, Y, and Z directions, 2 hours respectively
