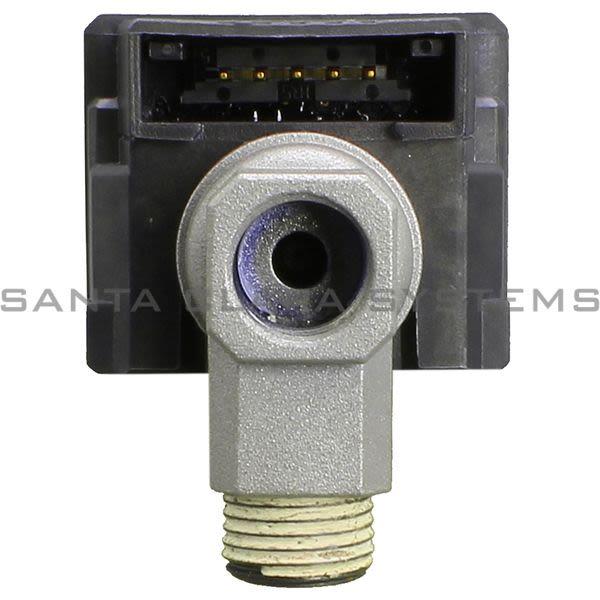

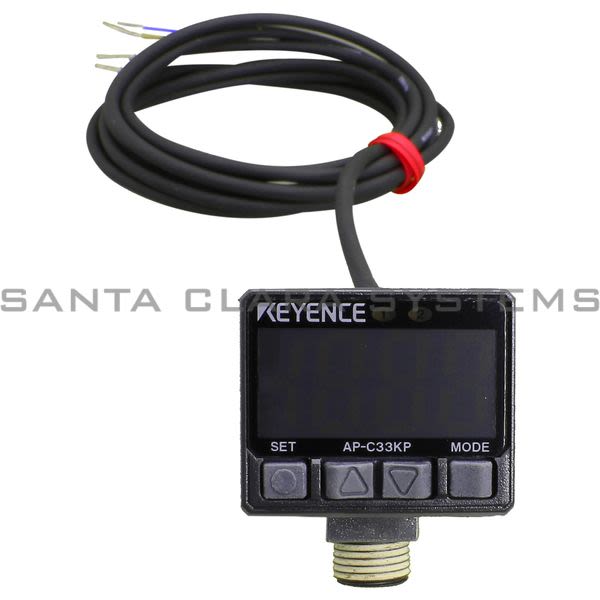

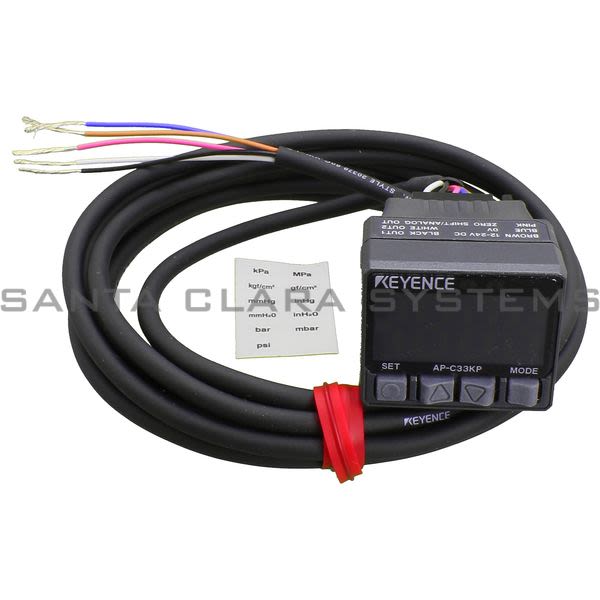

- Description: Pressure Sensor
- Weight: 30 g (not including cables) / 78 g (including 2-m cable)

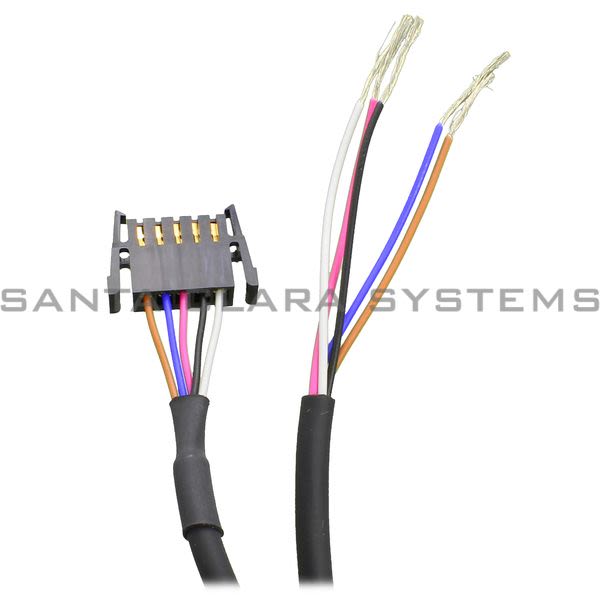

- Accessories: Power cord (2-m, connector type)
- Rated pressure range - Unit: Positive pressure
- Rated pressure range - kPa: 0 to 1.000MPa
- Rated pressure range - kgf/cm: 0 to 10.20
- Rated pressure range - PSI: 0 to 145.0
- Rated pressure range - Bar: 0 to 10.00
- Pressure resistance: 1.5MPa
- Adaptive fluids: Air, non-corrosive gasses
- Pressure type: Gauge pressure
- Rating - Power supply voltage: 12 to 24 V DC +10% Ripple (P-P) 10% max.
- Display method: 3.5 digit two-color 7 segment LED (11 mm character height) Display cycle: 10 times/second
- Control output: NPN open collector max. 100 mA (40 v max) residual voltage 1 V max., 2 outputs (NO/NC switchable)
- Zeero shift input: No-voltage input (with contacts, without contacts) Input time 2 ms or greater (switchable with analog output.)
- Analog output: 1 to 5 V output impedance 1 k max. (Switchable with zero shift input)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on AP-C33KP . Santa Clara Systems carries 2,107 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
