SHC1020CR

Hubbell - Control

Current response time:

By 5AM PT on Monday

Emergency?

Description: Control

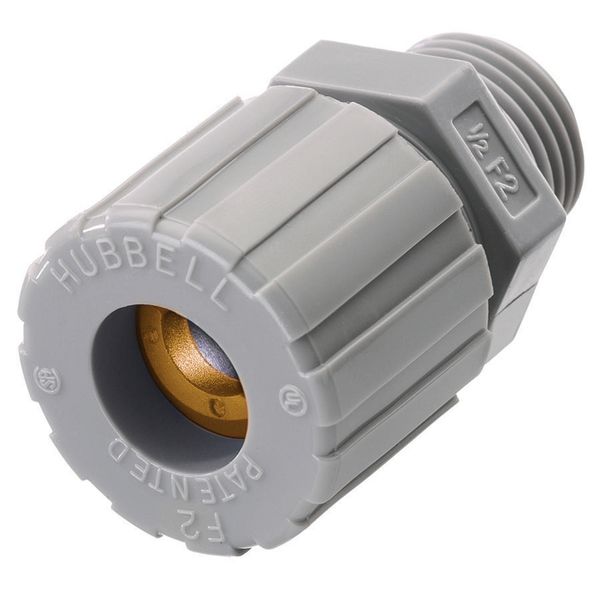

Specifications Description: Hubbell's nylon cord connectors resist most common industrial corrosive and provide effective pullout protection in a lightweight design. They are ideal for any application where weight, conductivity or corrosion may be an issue. They're available in N.P.
UPC Number: 78358520802
Weight in LBs: 0.1
Flammability: Hubbell nylon cord connectors have a UL 94-V2 rating.
Product Type: Cord Connectors
Material/Style: Nylon Standard Style
Cord Diameter Range: .13"- .19" (3.2- 4.7)
Cord Connector Body Style: Straight Male
Form Size: F2
HUB Size: 1/2"

Color Code: Orange
Effective Operating Temperature: -30F to +225F (-34C to +107C)
Recommended Knockout Hole Size: .86"- .91" (21.8-23.0)
Hazardous Locations: Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).
Dimension A: 1.32" (33.5) Dia.
Dimension B: 1.50" (38.1) Ref.
Dimension C: .53" (13.5)
Dimension D: .58" (14.7) Throat Dia.
Dimension E A/C: 1.25" (31.7)
Dimension E A/F: 1.12" (28.4)
Certifications: UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.
