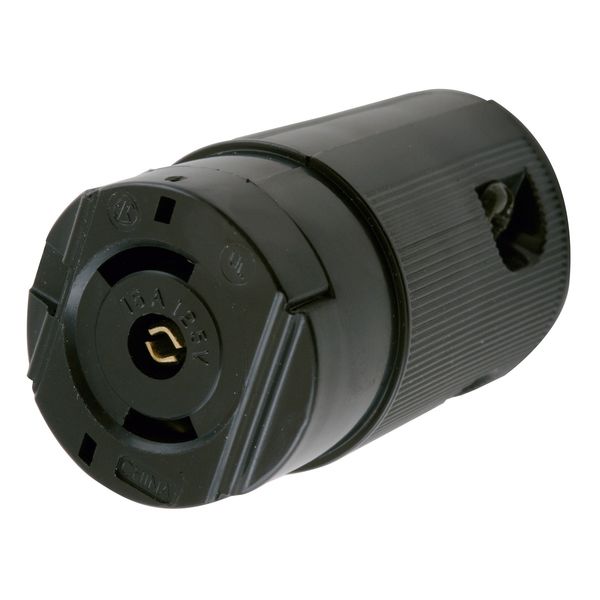

HBL7593V

Hubbell - Control

Current response time:

17 Minutes 28 Seconds

Description: Control
Specifications Description: 2P3W, 15A 125V, ML-2R, Black Nylon Body
UPC Number: 7.83585E+11
Weight in LBs: 0.1
Amperage: 15A
Flammability: UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 125V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: #18 to #16 AWG
Moisture Resistance: IP20
Device Color: Black

Catalog No: Permanently ink marked on product
Product Item: Connector Body
Wiring Scheme: 2-Pole, 3-Wire Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Valise
Housing Material: Black nylon
NEMA Configuration: ML-2R
Cord Dia.: .300"-.430" (7.6-10.9)
Body Holding Screw Material: Steel, zinc plated Multi-drive
Contact Spring Material: .031" Brass
Ground Contact Material: .031" (.8) Brass
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Listings: UL/CSA
