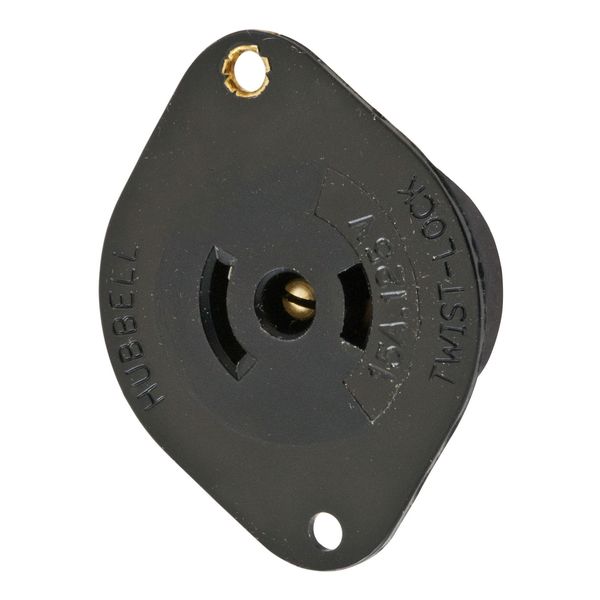

HBL7596N

Hubbell - Control

Current response time:

12 Minutes 24 Seconds

Description: Control
Specifications Description: 2P3W, 15A 125V, ML-2R, Black Nylon
UPC Number: 7.83585E+11
Weight in LBs: 0.05
Amperage: 15A
Flammability: UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 125V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 15A #14 AWG
Terminal Screw Material: #5-40 Brass
Ground Screw Material: Brass (green finish)

Device Color: Black
Catalog No: Permanently ink marked on product
Product Item: Flanged Receptacle
Wiring Scheme: 2-Pole, 3-Wire Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Standard
NEMA Configuration: ML-2R
Contact Spring Material: .032" (.8) Bronze
Flanged Casing Material: Black Nylon
Mounting Screw Material: Nickel-plated Brass Round head screws
Ground Contact Material: .032" Bronze
Listings: UL/CSA
