Out of Stock

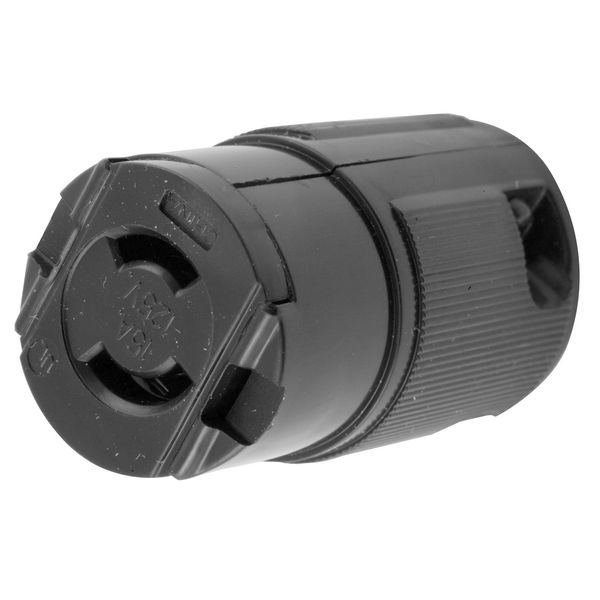

HBL7464V

Hubbell - Control

Current response time:

13 Minutes 2 Seconds

Description: Control
Specifications Description: 2P2W, 15A 125V, ML-1R, Black Nylon
UPC Number: 7.83585E+11
Weight in LBs: 0.05
Amperage: 15A
Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 125V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 15A #14 AWG
Moisture Resistance: IP20
Terminal Screw Material: #8-32 Steel (copper flash, nickel plate & molykote)
Device Color: Black

Catalog No: Permanently ink marked on product
Product Item: Plug
Wiring Scheme: 2-Pole, 2-Wire Non-Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Valise
Housing Material: Black nylon
NEMA Configuration: ML-1P
Cord Dia.: .218"-.375" (5.5-9.5)
Terminal Clamp Material: Cold rolled steel-nickel-plated
Cord Clamp Screw Material: Steel - zinc plated Multi-drive
Body Holding Screw Material: Steel, zinc plated Multi-drive
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Listings: UL

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HBL7464V . Santa Clara Systems carries 10,224 items from Hubbell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
