Out of Stock

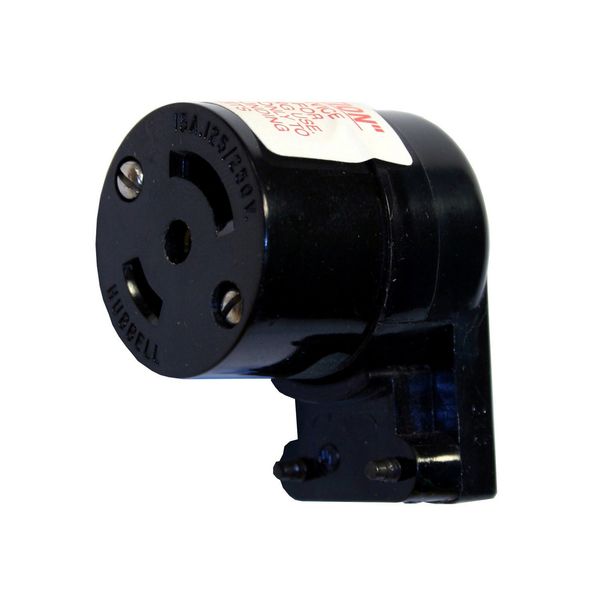

HBL7433

Hubbell - Control

Current response time:

6 Minutes 16 Seconds

Description: Control
Specifications Description: 3P3W, 15A 125/250V AC, ML-3R, Angled Body, Black Phenolic
UPC Number: 7.83585E+11
Weight in LBs: 0.1
Amperage: 15A
Flammability: UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 125/250V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 15A #14 AWG
Moisture Resistance: IP20
Terminal Screw Material: #8-32 Brass
Ground Screw Material: #8-32 Brass
Device Color: Black
Catalog No: Permanently ink marked on product

Product Item: Connector Body
Wiring Scheme: 3-Pole, 3-Wire Non-Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Standard
Housing Material: Phenolic
NEMA Configuration: ML-3R
Cord Dia.: .335"-.421" (8.5-10.7)
Cord Clamp Material: Phenolic
Cord Clamp Screw Material: Steel - black oxide
Body Holding Screw Material: Steel, zinc plated
Body Contact Carrier Material: Black Thermoset
Contact Spring Material: .032" (.8) Bronze
Ground Contact Material: .032" Bronze
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Listings: UL

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HBL7433 . Santa Clara Systems carries 10,224 items from Hubbell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
