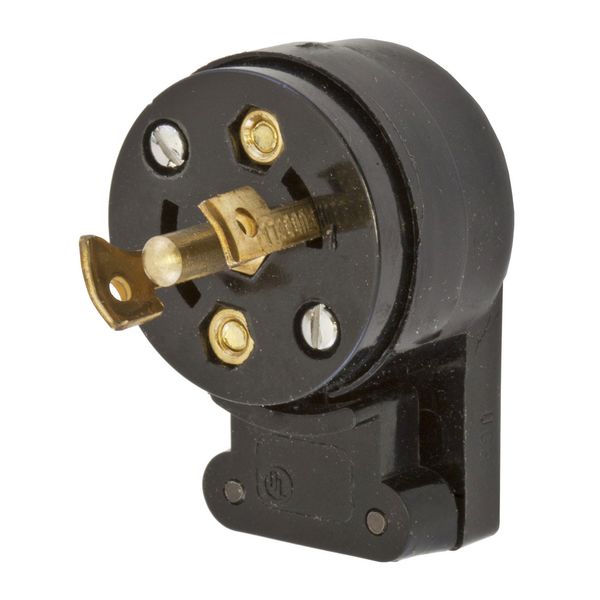

HBL7432

Hubbell - Control

Current response time:

12 Minutes 9 Seconds

Description: Control
Specifications Description: 3P3W, 15A 125/250V AC, ML-3P, Angled Body, Black Phenolic
UPC Number: 7.83585E+11
Weight in LBs: 0.05
Amperage: 15A
Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 125/250V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 15A #14 AWG
Moisture Resistance: IP20
Terminal Screw Material: Brass
Ground Screw Material: Brass
Device Color: Black

Catalog No: Permanently ink marked on product
Product Item: Plug
Wiring Scheme: 3-Pole, 3-Wire Non-Grounding
Dielectric Voltage Withstand: 2,000 minimum
Ratings: Molded In or Stamped On
Item Style: Standard
Housing Material: Black nylon
NEMA Configuration: ML-3P
Cord Dia.: .335"-.421" (8.5-10.7)
Blade Holder Material: Black Phenolic
Cord Clamp Material: Black Nylon
Blade Material: Brass
Cord Clamp Screw Material: Steel zinc plated
Body Holding Screw Material: Steel zinc plated
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Listings: UL
