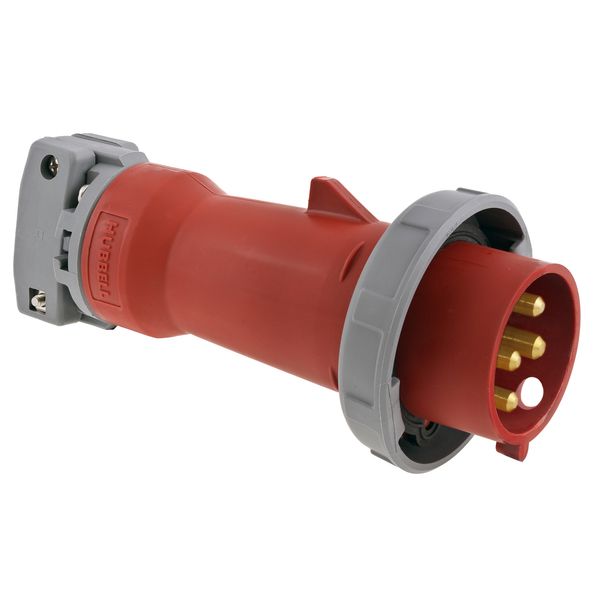

HBL430P7W

Hubbell - Pin and Sleeve Plug

Current response time:

11 Minutes 44 Seconds

Description: Pin and Sleeve Plug
Specifications Description: Watertight IEC Pin and Sleeve Plug, 3P4W, 30A 3PH 480V
UPC Number: 78358540458
Weight in LBs: 1.3
Amperage: 30A
Flammability: HB or Better per UL 94 or CSA C22.2 No. 0.17
Operating Temperatures: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact.
Voltage: 3 Phase 480V
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with North American and IEC conventions.
Temperature Rise: Max 30 C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%.
Poles and Wires: 3 Pole, 4 Wire
Moisture Resistance: Watertight per IEC 60309-1
Ingress Protection: IP 67 Suitability
Product Identification: Identification and ratings are a permanent part of the device housing.
Impact Resistance: Per CSA C22.2 No. 182.1 / UL1682.
Max Working Voltage: 600V RMS (i.e. minimum creepage distance 10 mm minimum)
Housing: Zytel 801 Nylon
IEC Product Type: Watertight
Service Style: Standard
Device: Plug
Terminal Accommodations: #12 To #8 AWG copper wire only

Cord clamp range: .375" To 1.250"
Replacement Interior Number: IN430DM
Lock Ring: Rynite SST35
Contact Carrier: High-Impact Thermoset
Retainer: High-Impact Thermoset
Ground/Phase Pins: Brass
Terminal Screws: Stainless Steel (300 series)
Assembly Screws: Stainless Steel (300 series)
Gaskets: Neoprene
Cord Clamps: Rynite SST35
Grommet/Glands: Solid Neoprene
Gland Cap: Rynite SST35
Cord Clamp Screws: Stainless Steel (300 Series)
Clamp Nut: Nickel Plated Brass
Certification: UL Listed, File E146032 Receptacles and Inlets, E146033 Plugs and Connectors, UL Standard UL1682 & UL1686C2, CSA Certified File LR280C for Plugs, Connectors and Inlets, LR285C for Receptacles, CSA Standard C22.2 No. 182.1, UL Classified to IEC60309-1, IEC
Dielectric Withstand Voltage: Withstands 3,000V AC
Endurance: 5,000 connect and disconnect cycles with load for 16A and 20A, 1,000 cycles with load and 1,000 cycles w/o load for 30A, 32A, 60A and 63A, and 250 cycles with load and 250 cycles w/o load for 100A and 125A.
Cord Grip Retention: Per CSA C22.2 No. 182.1 / UL1682.
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49 and the harmonized European Standards.
Certifications: UL Listed, File E146032 Receptacles and Inlets, E146033 Plugs and Connectors, UL Standard UL1682 & UL 1686C2, CSA Certified File LR280C for Plugs, Connectors and Inlets and LR285C for Receptacle CSA Standard C22.2 No. 182.2, UL Classified to IEC 309-1 and
Device Description: Every Hubbell non-metallic Pin and Sleeve product is designed to meet the International Standard IEC 60309-1 and IEC 60309-2. This device standard calls out singly rated, non-interchangeable configuration for every voltage and type of service.
