SAB34

Hubbell - Conduit Adapter

Current response time:

14 Minutes 48 Seconds

Description: Conduit Adapter
Specifications Description: Liquid-Tight Adapter, 3/4" NPT, 5 Wire 20A, 3 and 4 Wire 30A
UPC Number: 78358588775
Weight in LBs: 0.2
Flammability: UL94-5VA and V-0 classification.
Operating Temperatures: Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact.
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with North American and International conventions.
Product Type: Accessories
Ingress Protection: IP67 Suitability
Product Identification: Identification and ratings are a part of the external label and molded into the receptacle mount.
Impact Resistance: In accordance with UL746C
Max Working Voltage: 600V AC RMS
Size: 3/4" NPT

Accessory Item: Conduit Adapter
For Use With: IEC & Insulgrip Devices
Used In: 16 & 20A 5 Wire, 30 & 32A 3 & 4 Wire IEC And 30A Insulgrip
Hinge Spring: Stainless Steel (300 series)

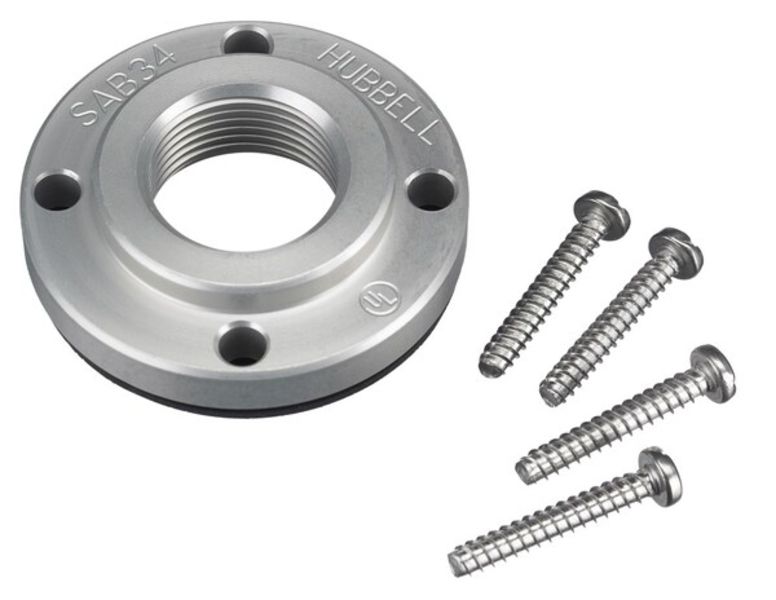

Device Description: Machined aluminum adapters are available to provide a means for attaching flexible liquid-tight metal conduit to rear of a Hubbell Pin and Sleeve plug or connector. Provides Female NPT Threads.
Used In:: 16 & 20A 5 Wire, 30 & 32A 3 & 4 Wire IEC And 30A Insulgrip
Assembly Screws: Stainless Steel (300 series)
Gaskets: Neoprene
Certification: UL Listed, CSA Certified
Dielectric Withstand Voltage: Withstands 3,000V AC
Short Circuit Withstand: Suitable for use on a circuit capable of delivering not more than 10,000 RMS symmetrical amperes at the voltage rating of the receptacle.
Endurance: Mechanical: 10,000 cycles, Electrical: 6,000 cycles.
UV Resistance: All materials are UV Stabilized.
Certifications: UL Listed, CSA Certified.
