HBL26419

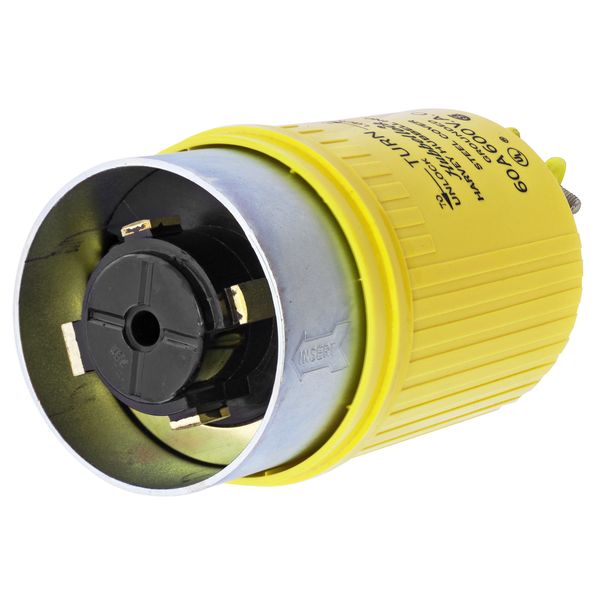

Hubbell - Hubbelock Connector Body

Current response time:

7 Minutes 38 Seconds

Description: Hubbelock Connector Body
Specifications Description: 3P4W, 60A 600V AC Max, Steel Shell with Yellow Cover
UPC Number: 7.83585E+11
Weight in LBs: 2.1
Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: #10 AWG min - #4 AWG max
Moisture Resistance: IP30
Terminal Screw Material: Copper lug terminals with steel set screws
Ground Screw Material: Copper lug terminals with steel set screws
Device Color: Yellow
Catalog No: Permanently ink marked on product

Product Item: Plug
Wiring Scheme: 3-Pole, 4-Wire Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Housing Material: Gray Polycarbonate
Multi-Rating: 60A 600V AC
Cord Dia.: .875"-1.480" (22.2-37.5)
Blade Holder Material: Black Thermoset
Cord Clamp Material: Neoprene sleeve
Blade Material: Brass
Cord Clamp Screw Material: Stainless steel, Multi-drive
Body Holding Screw Material: Stainless steel, Multi-drive
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Listings: UL/CSA
