HBL26418

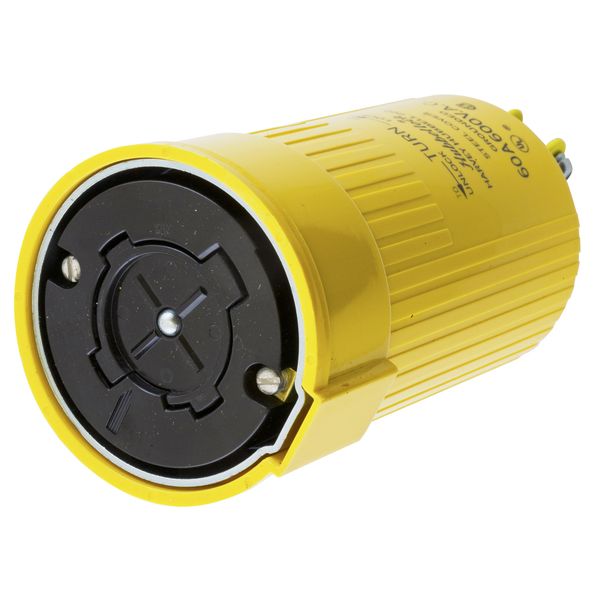

Hubbell - Hubbelock Connector Body

Current response time:

10 Minutes 15 Seconds

Description: Hubbelock Connector Body
Specifications Description: 3P4W, 60A 600V AC Max, Steel Shell with Yellow Cover
UPC Number: 7.83585E+11
Weight in LBs: 2.45
Flammability: UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 60A #6 AWG
Moisture Resistance: IP30
Terminal Screw Material: Steel pressure screw- zinc plate
Ground Screw Material: Steel pressure screw- zinc plate
Device Color: Yellow
Catalog No: Permanently ink marked on product

Product Item: Connector Body
Wiring Scheme: 3-Pole, 4-Wire Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Housing Material: Steel Cover/Yellow Polycarbonate Cover
Multi-Rating: 60A 600V AC
Cord Dia.: .875"-1.480" (22.2-37.5)
Cord Clamp Material: .078 Steel
Cord Clamp Screw Material: Steel-zinc-plated
Body Holding Screw Material: Steel-zinc-plated
Body Contact Carrier Material: Black Thermoset
Contact Spring Material: .032" (.8) Bronze
Ground Contact Material: .032" Bronze
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Listings: UL/CSA
