Out of Stock

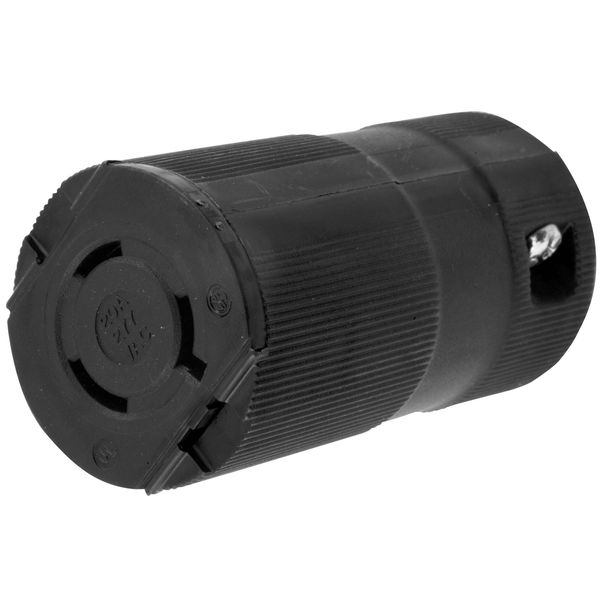

HBL2333VBK

Hubbell - Control

Current response time:

17 Minutes 50 Seconds

Description: Control
Specifications Description: 2P3W, 20A 277V AC, L7-20R, Black Nylon
UPC Number: 7.83585E+11
Weight in LBs: 0.3
Amperage: 20A
Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 277V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 20A #12 AWG
Moisture Resistance: IP20
Terminal Screw Material: #8-32 Steel (copper flash, nickel plate & molykote)
Ground Screw Material: #8-32 Steel (green finish)
Device Color: Black

Catalog No: Permanently ink marked on product
Product Item: Connector Body
Wiring Scheme: 2-Pole, 3-Wire Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Valise
Housing Material: Black nylon
NEMA Configuration: L7-20R
Cord Dia.: .325"-.720" (8.26-18.3)
Cord Clamp Material: Natural (white) nylon
Terminal Clamp Material: Cold rolled steel-nickel-plated
Cord Clamp Screw Material: Steel zinc plate
Contact Spring Material: Brass
Ground Contact Material: Brass
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Listings: UL/CSA

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on HBL2333VBK . Santa Clara Systems carries 10,224 items from Hubbell.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
