HBL2331

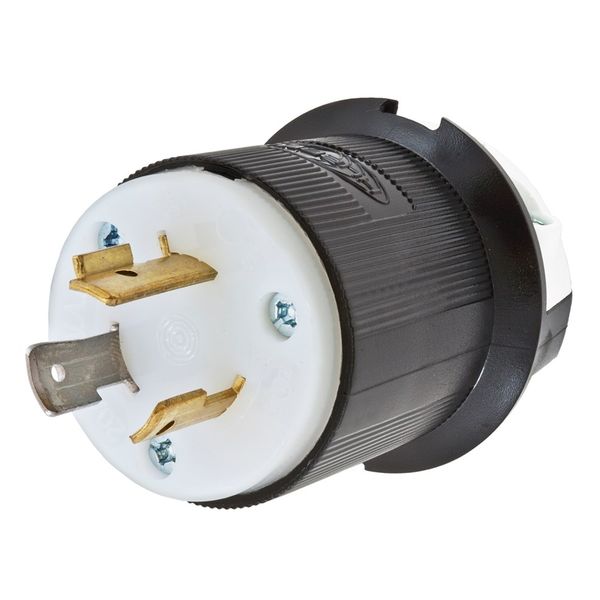

Hubbell - Twist-Lock Plug | INSULGRIP

Current response time:

By 5AM PT on Friday

Emergency?

Description: Twist-Lock Plug | INSULGRIP
Specifications Description: 2P3W, 20A 277V AC, L7-20P, Black & White Nylon
UPC Number: 7.83585E+11
Weight in LBs: 0.3
Amperage: 20A
Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 277V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Product Type: Twist-Lock Devices
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: 20A #12 AWG
Moisture Resistance: IP20
Terminal Screw Material: #10-32 Brass (white finish on neutral screw when used) Multi-drive
Ground Screw Material: #10-32 Brass (green finish) Multi-drive
Device Color: Black/White
Catalog No: Permanently ink marked on product

Product Item: Plug
Wiring Scheme: 2-Pole, 3-Wire Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Insulgrip
Horsepower: 2
Housing Material: Black nylon
NEMA Configuration: L7-20P
Cord Dia.: .360"-.930" (9-24)
Blade Holder Material: Natural White Nylon
Terminal Retainer Material: Clear polycarbonate
Cord Clamp Material: Natural (white) nylon
Blade Material: Brass
Terminal Clamp Material: .08" (2) steel-nickel plated
Cord Clamp Screw Material: Steel, zinc plated Multi-drive
Body Holding Screw Material: Steel, zinc plated Multi-drive
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Listings: FED SPEC UL/CSA
