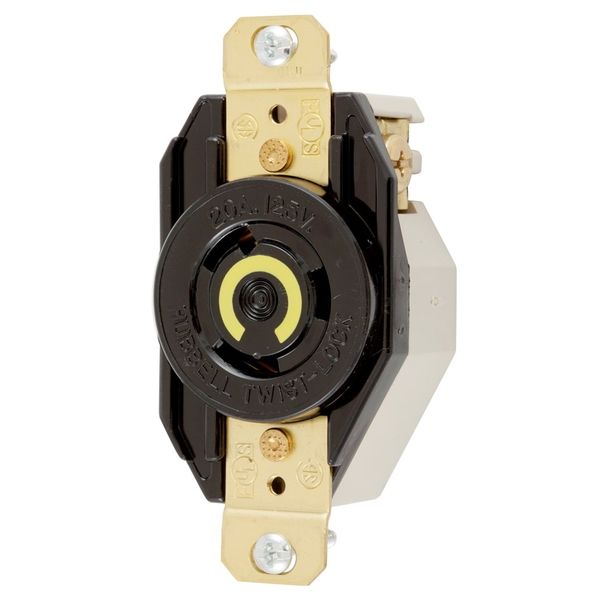

HBL2310

Hubbell - Twist-Lock Receptacle

Current response time:

15 Minutes 53 Seconds

Description: Twist-Lock Receptacle
Specifications Description: 2P3W, 20A 125V, L5-20R, Black Nylon Face
UPC Number: 7.83585E+11
Weight in LBs: 0.25
Amperage: 20A
Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 125V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: #14 to #8 AWG Copper Only
Terminal Screw Material: #10-32 Brass (white finish on neutral screw when used) Multi-drive
Ground Screw Material: #10-32 Bronze (Green)
Device Color: Black
Catalog No: Permanently ink marked on product
Product Item: Single Receptacle

Wiring Scheme: 2-Pole, 3-Wire Grounding
Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Standard
Horsepower: 1
NEMA Configuration: L5-20R
Terminal Clamp Material: .040" (1.0 ) Brass
Contact Spring Material: .040" Brass
Mounting Screw Material: Steel-zinc-plated
Cover (Top) Material: Black Nylon
Base Material: Nylon Polyester
Ground Contact Material: .040" Brass
Bridge (Mounting Strap) Material: .050" Brass
Back Plate Material: .040" Brass
Rivet Material: Brass
Auto Ground Clip Material: Stainless Steel
Listings: FED SPEC UL/CSA
