HBL2310SW

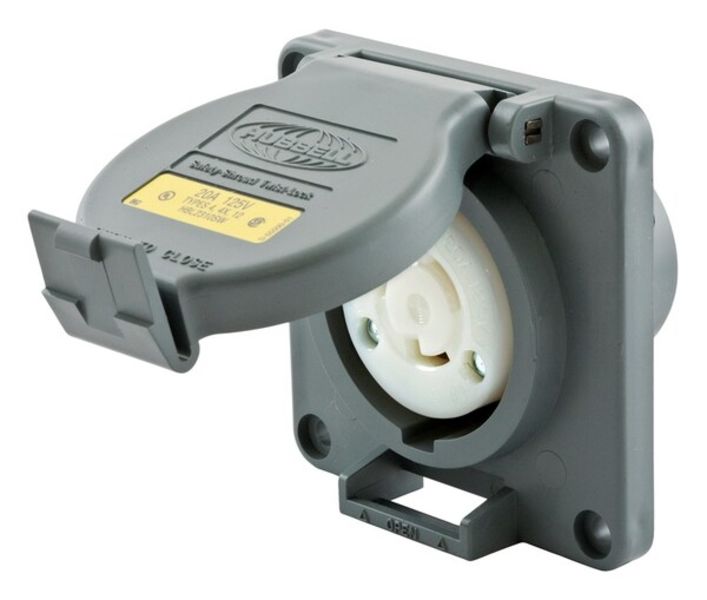

Hubbell - Twist-Lock Watertight Safety-Shroud Receptacle

Current response time:

6 Minutes 3 Seconds

Description: Twist-Lock Watertight Safety-Shroud Receptacle
Specifications Description: 20A, 125V Safety-Shroud Twist-Lock receptacle.
UPC Number: 78358523100
Weight in LBs: 0.55
Amperage: 20A
Flammability: V0 per UL94 or CSA 22.2 No. 17
Operating Temperatures: Maximum Continuous: -40 C to 75 C
Voltage: 125V AC
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White & Green)
Product Type: Twist-Lock Devices
Temperature Rise: Max 30 temperature rise at full rated current after 250 cycles of overload at 200% of rated current after 250 cycles of overload at 200% of rated current at a power factor of 75% (WC596)
Terminal Accommodation: #16 AWG - #8 AWG solid or stranded copper wire only.
Moisture Resistance: Type 4, 4X, 12 & IP66 Suitability
Product Identification: Ratings are a permanent part of this device blade holder, and are also labeled on device, color coded by voltage, visible in use. Catalog ID is on device visible in use.
Device Color: Gray
Product Item: Single Receptacle
Wiring Scheme: 2-Pole, 3-Wire Grounding
Item Style: Shrouded Watertight
Max Working Voltage: 600V RMS
Horsepower: 1

Enclosure Type: 3R, Rainproof, Suitable for use in damp locations.
NEMA Configuration: L5-20R
Spider II Items: Replacement Parts
Replacement Part Type: 20A 125V Safety-Shroud Twist-Lock Receptacle
Listings and Certifications: UL 1640 cull and CSA, UL 943
Housing and Flange: Gray Valox
Body Contact Carrier: Natural White Nylon
Terminal Retainer: Clear Polycarbonate
Drive Screw: Steel, Zinc Plated
Contact Spring: Brass
Spring Binding Plate: Brass
Terminal Clamp: Steel, nickel-plated .08" curved, scalloped.
Flange/Lid Gasket: Closed Cell Neoprene Foam
Cover Hinge Pin: Stainless Steel 302/304
Cover Spring: Stainless Steel 302/304
Terminal Screws: 10-32 Brass (white finish on neutral screw when used) Multiple Drive Head
Grounding Screw: Brass (green finish) combination head
Mounting Screw: Stainless Steel 302/304 Combination Head
Dielectric Voltage: Withstands 2,000V minimum.
Operation: Indoor and outdoor wet and dry locations
Code Compliance: National Electrical Code , ANSI/NFPA 70
