HBL2320SW

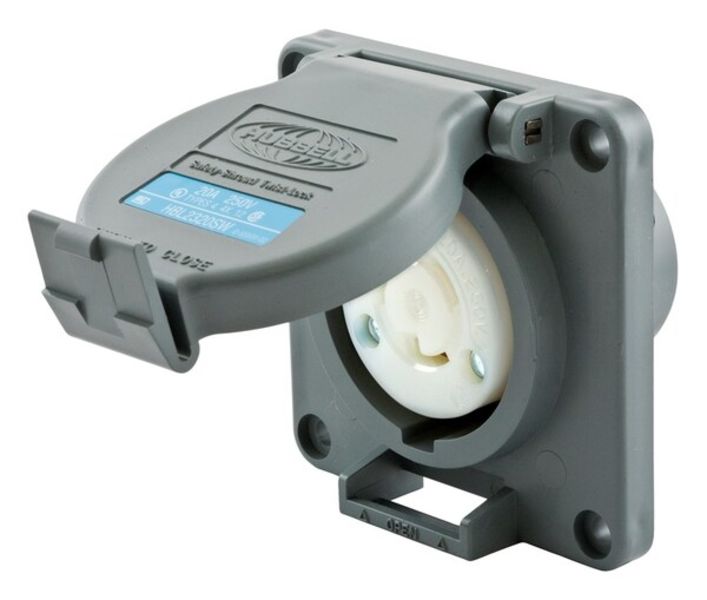

Hubbell - Twist-Lock Watertight Safety-Shroud Receptacle

Current response time:

7 Minutes 16 Seconds

Description: Twist-Lock Watertight Safety-Shroud Receptacle
Specifications Description: 2P3W, 20A 250V, L6-20R, Watertight Housing & Flange
UPC Number: 7.83585E+11
Weight in LBs: 0.55
Amperage: 20A
Flammability: VO per UL94 or CSA 22.2 No. 0.6
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Voltage: 250V AC
Current Interrupting: Certified for current interrupting at full rated current
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Product Type: Twist-Lock Devices
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminal Accommodation: #14 to #8 AWG Copper Only
Moisture Resistance: Type 4, 4X, 12, IP66 suitability
Terminal Screw Material: #10-32 Brass (white finish on neutral screw when used) Multi-drive
Ground Screw Material: #10-32 Brass (Green)
Device Color: Gray
Catalog No: Permanently ink marked on product
Product Item: Single Receptacle
Wiring Scheme: 2-Pole, 3-Wire Grounding

Dielectric Voltage Withstand: 2,000V minimum
Ratings: Molded In or Stamped On
Item Style: Shrouded Watertight
Horsepower: 2
Housing Material: Impact modified PBT
NEMA Configuration: L6-20R
Terminal Retainer Material: Clear polycarbonate
Terminal Clamp Material: Steel, nickel plated .080" Curved, scalloped
Body Contact Carrier Material: Natural White Nylon
Contact Spring Material: .031" Brass
Spring Binding Plate Material: .031" Brass
Mounting Screw Material: Stainless Steel 302/304 Multi-drive
Ground Contact Material: .031" Brass
Rivet Material: Steel
Flange Gasket Material: Closed-cell Neoprene foam
Lid Gasket Material: Closed-cell Neoprene foam
Cover Hinge Pin Material: Stainless Steel 302/304
Housing and Flange Material: Gray Valox
Cover Spring Material: Stainless Steel 302/304
Listings: FED SPEC UL/CSA
