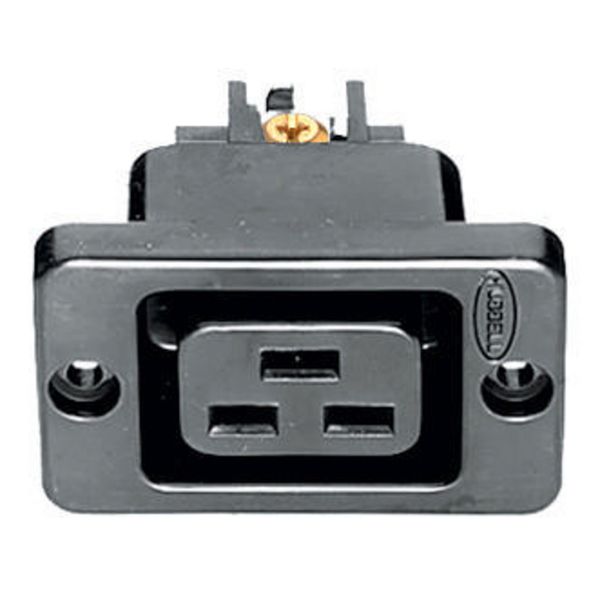

H320R

Hubbell - Control

Current response time:

By 5AM PT on Friday

Emergency?

Description: Control
Specifications Description: Straight Blade Devices, IEC 320 Devices, Female Receptacle, 16A 250V, International Rated, Pressure Screw Terminal, Black, Single Pack
UPC Number: 7.83586E+11
Weight in LBs: 0.1
Amperage: 20A/16A
Flammability: UL 94 V0
Operating Temperatures: Maximum continuous 75C, minimum -40C (w/o impact).
Voltage: 250V
Current Interrupting: Certified for current interrupting at full rated current.
Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green).
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Poles and Wires: 2-pole + earth.
Terminal Accommodation: North American-#16AWG-#12AWG; International-1.55mm-2.5mm.
Terminal Screw Material: Steel

Product Identification: Ratings are a permanent part of the device.
Ground Screw Material: Steel
Housing Material: Nylon-Black
Rating: 16A 250V AC for European service; 20A 250V AC for North American service.
Standard: IEC 320
IEC Product: Receptacle
Wiring Method: Terminal Screw
Certification: UL Listed 20A 250V AC-File No. E2186; CSA certified 20A 250V AC-File No 17337, TUV certified at 16A 250V AC File No. E0077112.07.
Retainer Material: Nylon-Black
Contact Blades Material: .040" (1.0) Brass
Base Material: Nylon
Power Contacts Material: .032" (.81) Brass
Dielectric Voltage: Withstands 2,000V minimum.
